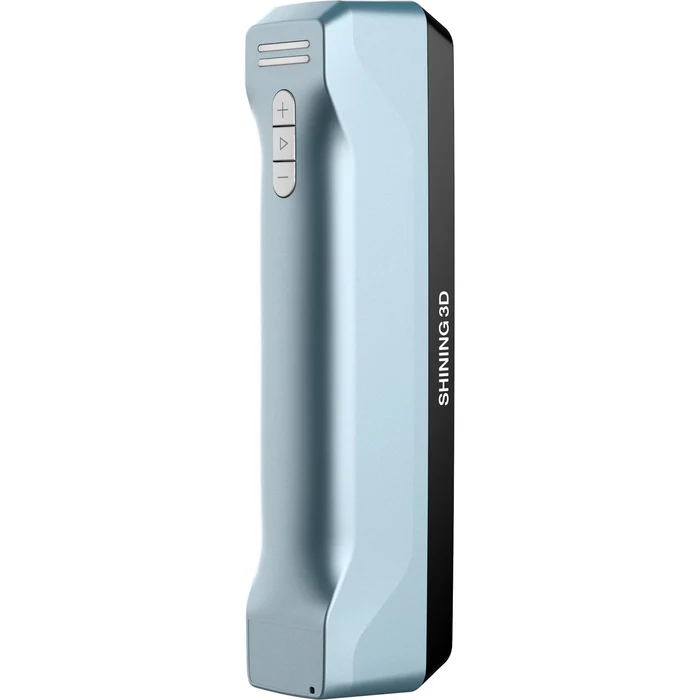

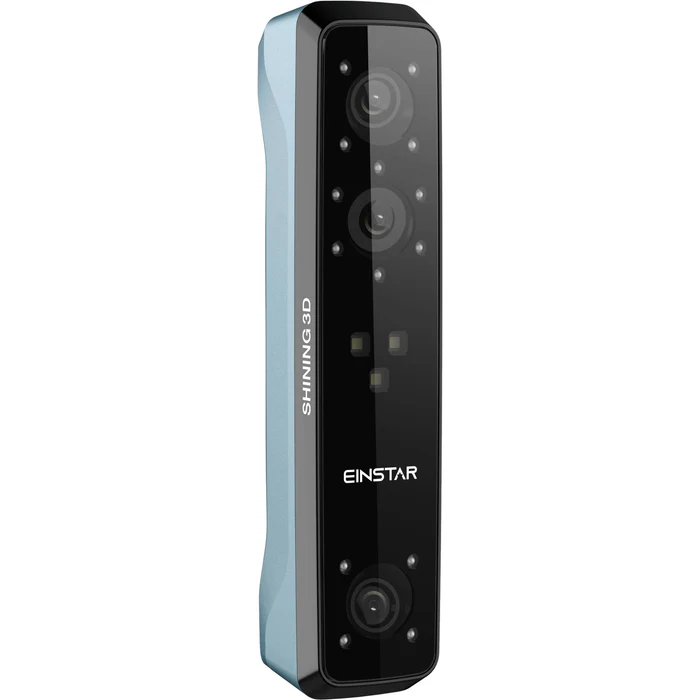

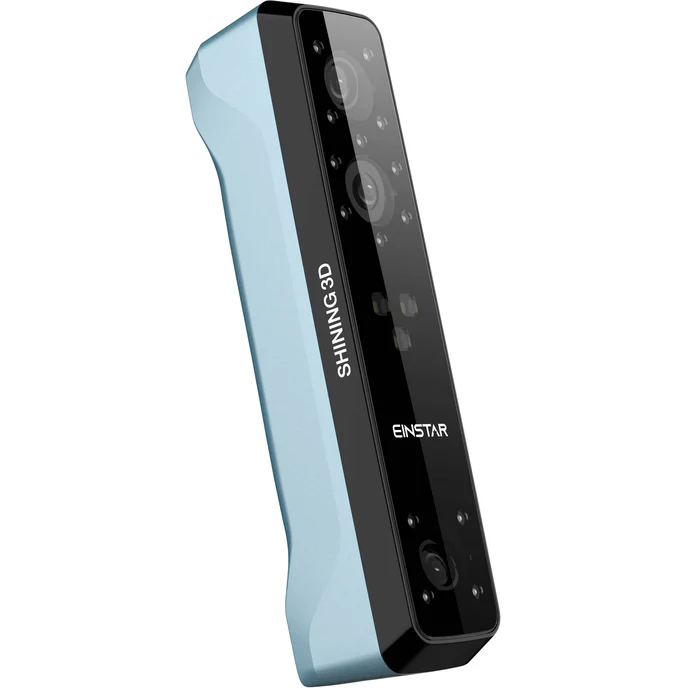

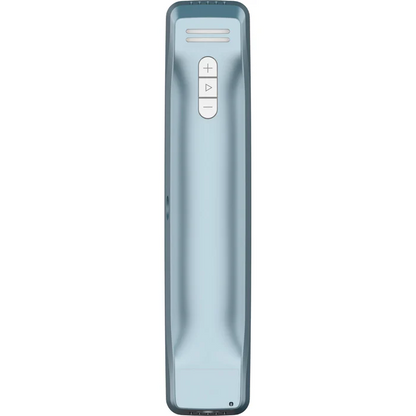

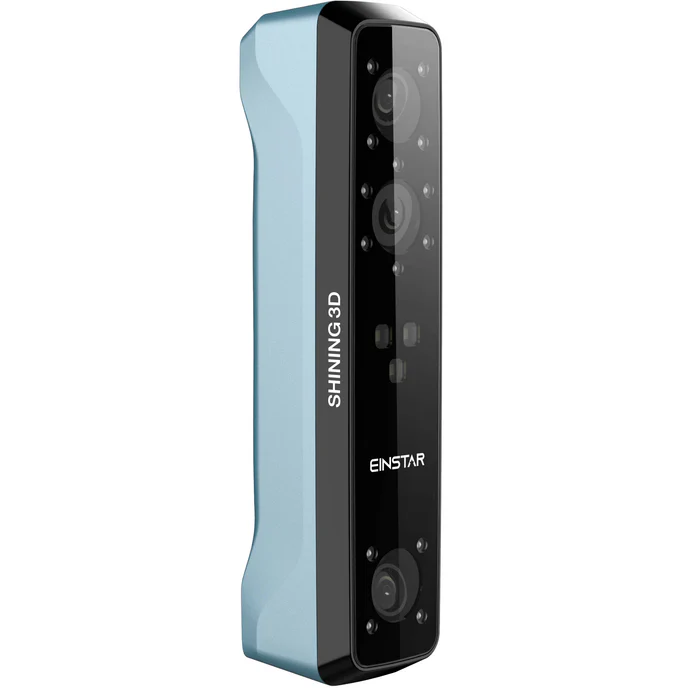

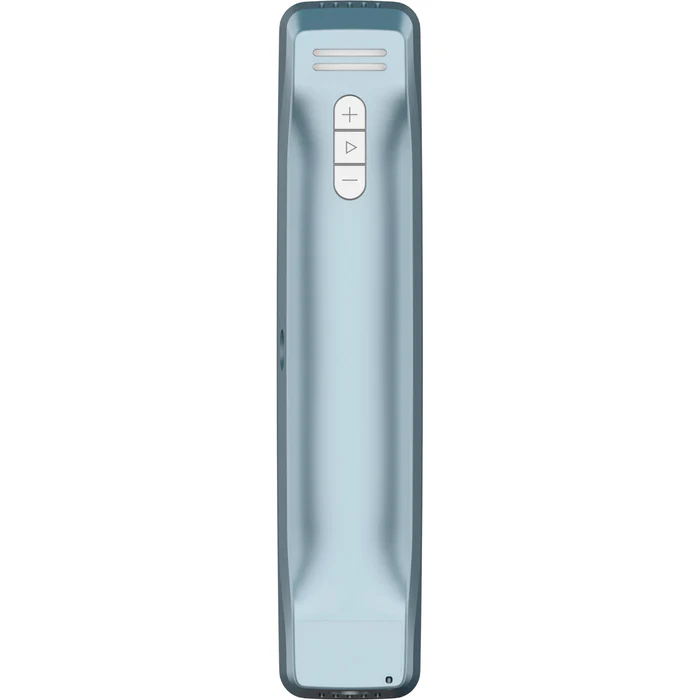

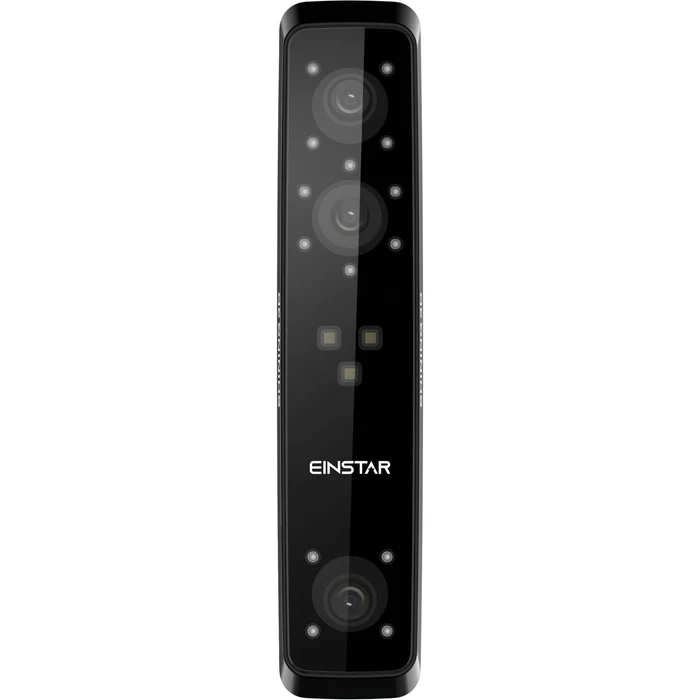

The Einstar 3D Scanner makes data capturing simple with its revolutionary stabilization techniques, all at an affordable price point.
Key Features
Handheld and easy-to-use 3D scanner
Up to 14 FPS Scan Rate
Full color and outdoor scanning capabilities
Includes EXStar software
Hardware Recommendations :
Intel Core i7-11800H or higher processor
NVIDIA GeForce GTX 1060 or higher
32GB RAM or above
USB 3.0 connection
Supported OS: Windows 10/11 64-bit
Scan Mode Structured Light Scan Point Distance 0.1 mm ~ 3 mm
Light Source Infrared VCSEL structured light Working Distance Effective: 160mm–1400mm
Optimal: 400mm
Depth of Field 160–1400mm Maximum FOV 434mm × 379mm
Scan Speed 980,000 points/s, up to 14FPS Align Modes Feature, Hybrid, Texture, Global Markers
Safety Eye-safe Texture Scan Yes
Interface USB 2.0 or above Outdoor Scanning Yes
Output Formats OBJ; STL; PLY; P3; 3MF Scanner Size 220mm × 46mm × 55mm
Body Weight 500g Carrying Case Size 245mm × 245mm × 90mm
Operating Temperature Range 0–40°C Operating Humidity Range 10–90%
Recommended Configuration OS: Win10/11, 64 bit;
Graphics card: NVIDIA GTX1050;
Video memory: ≥6GB;
Processor: I7-11800H;
Memory: ≥32GB
OS: MAC；
Apple Silicon: M1 Pro or higher (8-core GPU or more)；
RAM: 32GB or more；
USB: 2.0；
OS: macOS Ventura 13 or newer
Certifications CE, FCC, ROHS, WEEE, KC
