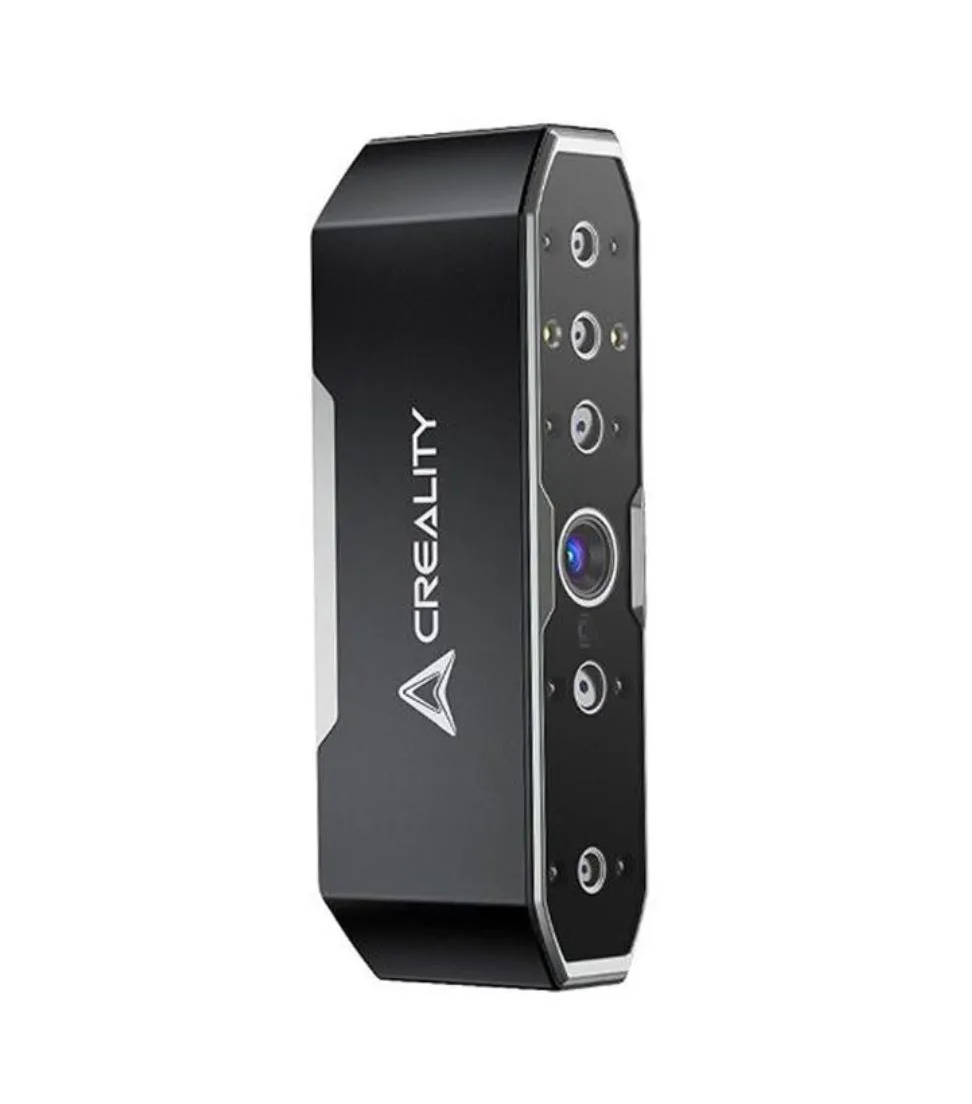

Creality CR-Scan Otter 3D Scanner
Regular price
Rs. 104,500.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Creality CR Scan Otter 3D scanner features a Four-lens Stereo Vision system with dual long-focal lenses for scanning
Couldn't load pickup availability
EMI Option Available
EMI payment options are available at payment gateways.
Why Choose Creality CR Scan Otter

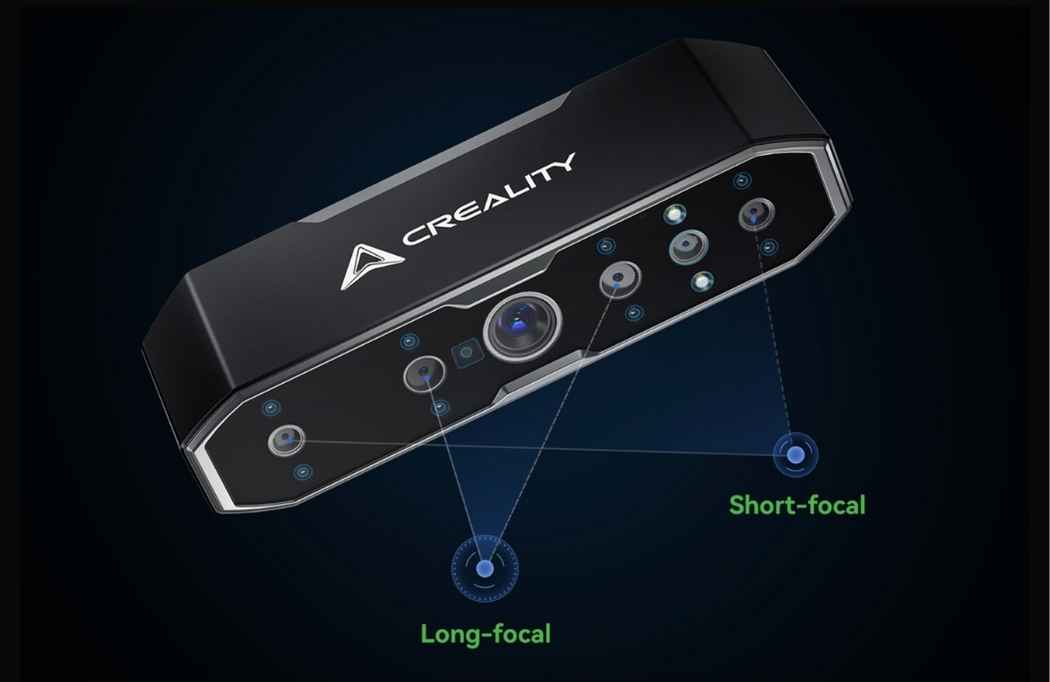

Four-Lens Stereo Vision - Long-focal pair for fine detail, short-focal pair for large objects, no lens swapping

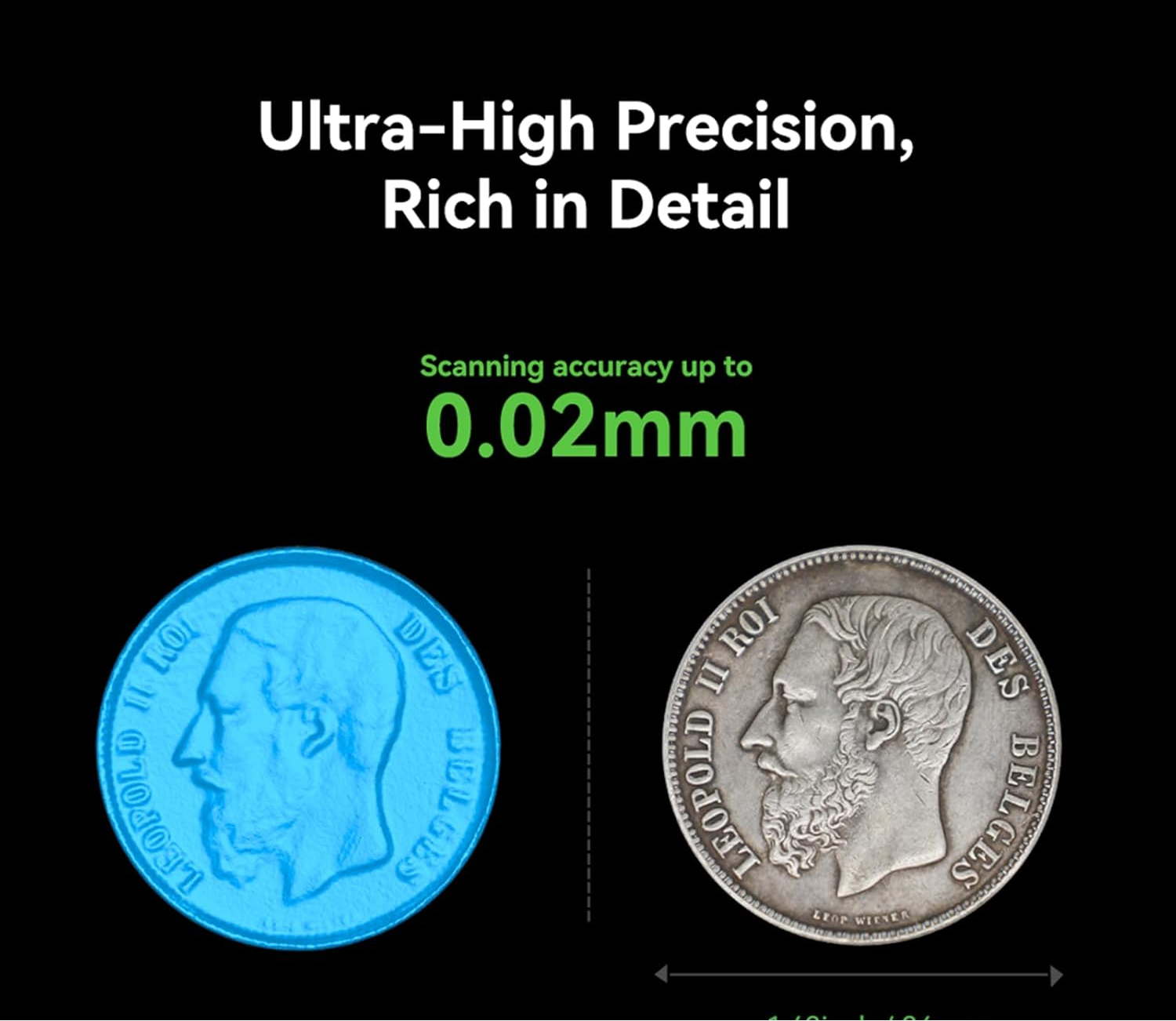

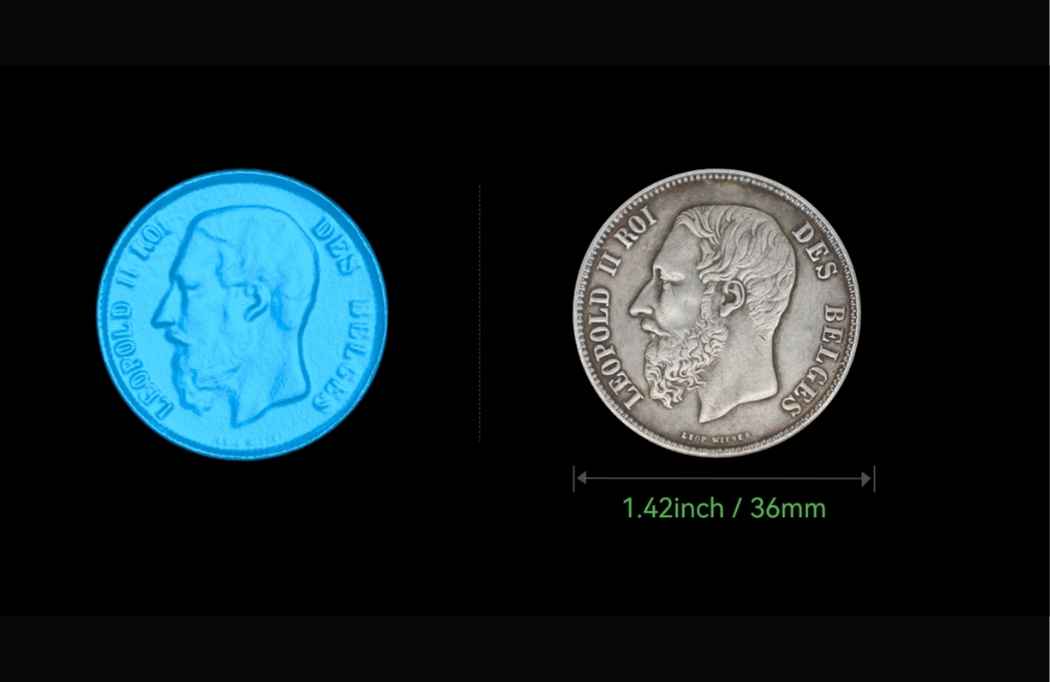

0.02mm Accuracy - Captures everything from human teeth to full automotive components

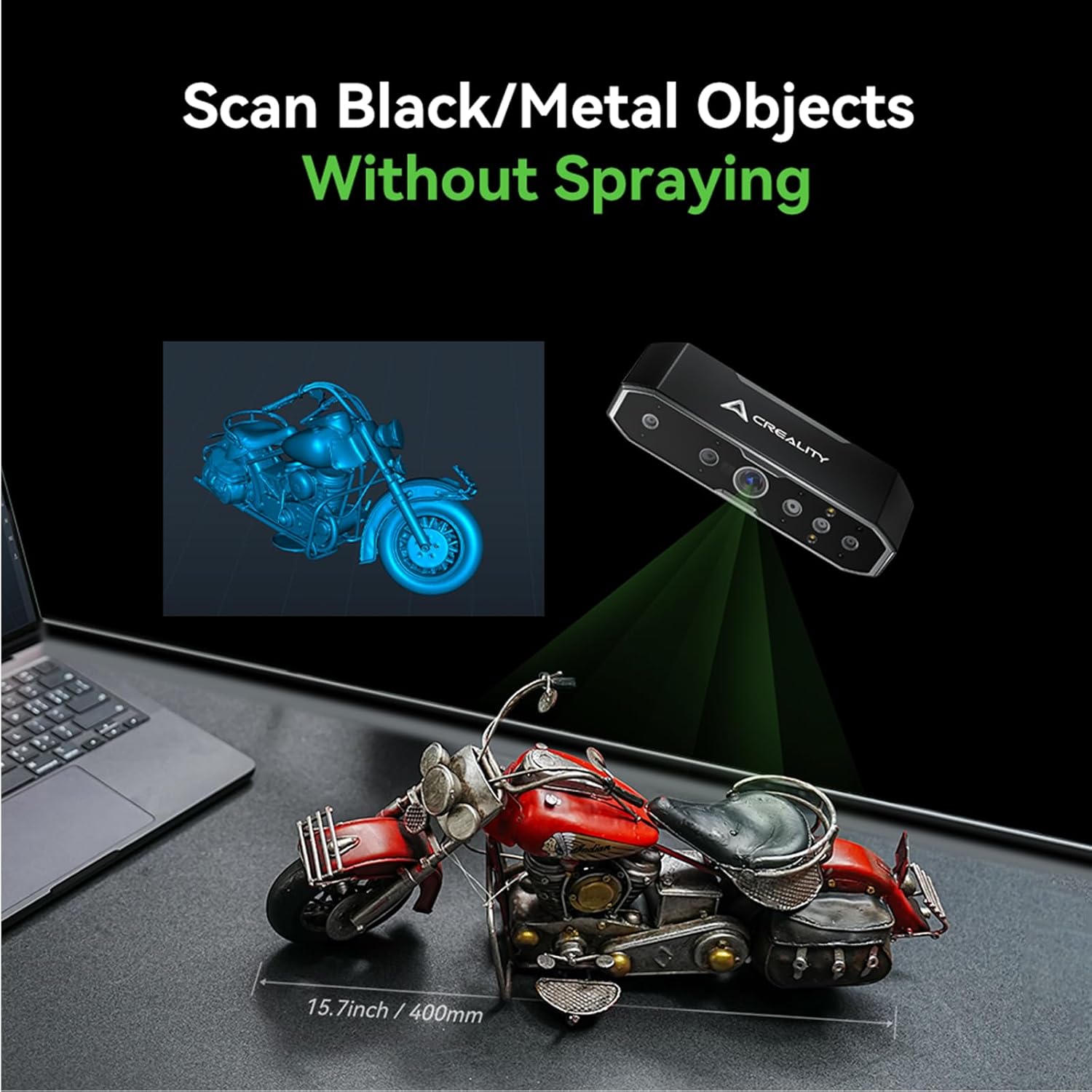

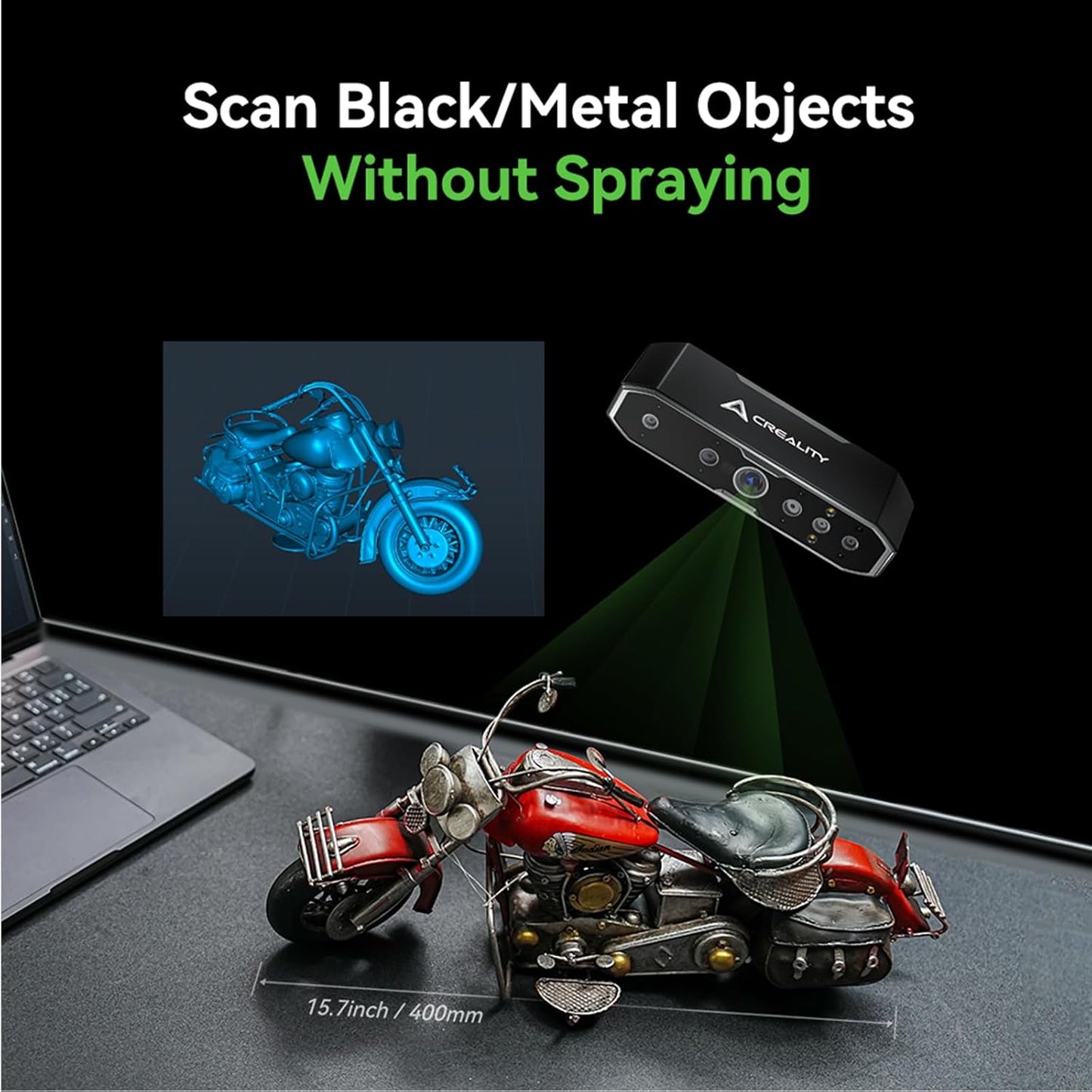

No Scanning Spray Needed - Dark and metallic surfaces like car parts and tyres scan directly
Scans Outdoors in 30,000 Lux - DOE structured light holds up in strong sunlight where most scanners fail

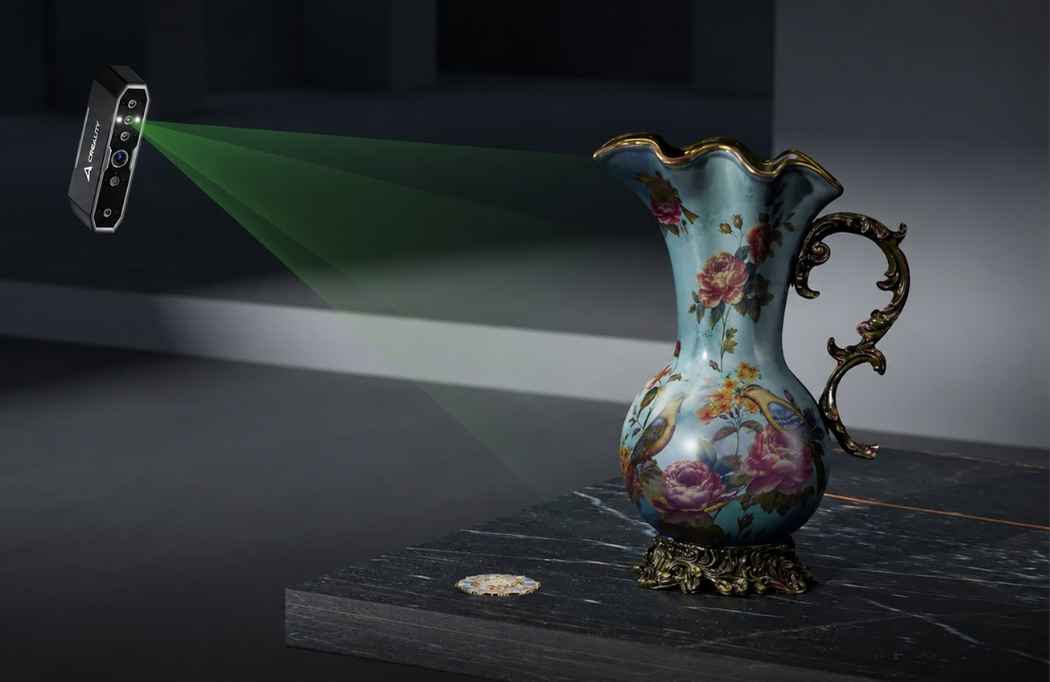

24-Bit Full-Colour Capture - Exclusive colour mapping algorithm reproduces true texture and pigment

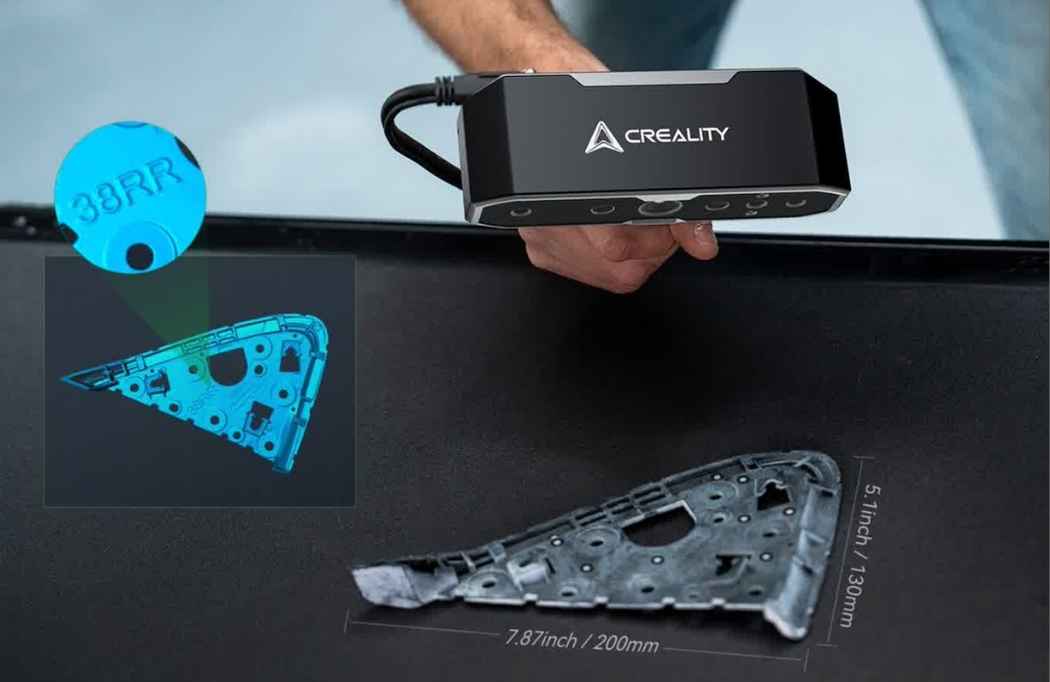

Eight Infrared Lights for Marker Tracking - Higher accuracy on featureless objects in marker mode
Creality CR Scan Raptor Specs
| Item | Specification |
|---|---|
| Scanning Technology | Infrared structured light with DOE (Diffractive Optical Element) |
| Lens System | Four-lens stereo vision: long-focal binocular pair for small objects, short-focal binocular pair for large objects |
| Accuracy | Up to 0.02 mm @ 60 mm |
| 3D Resolution | 0.05–2 mm |
| Scanning Speed | Up to 20 fps |

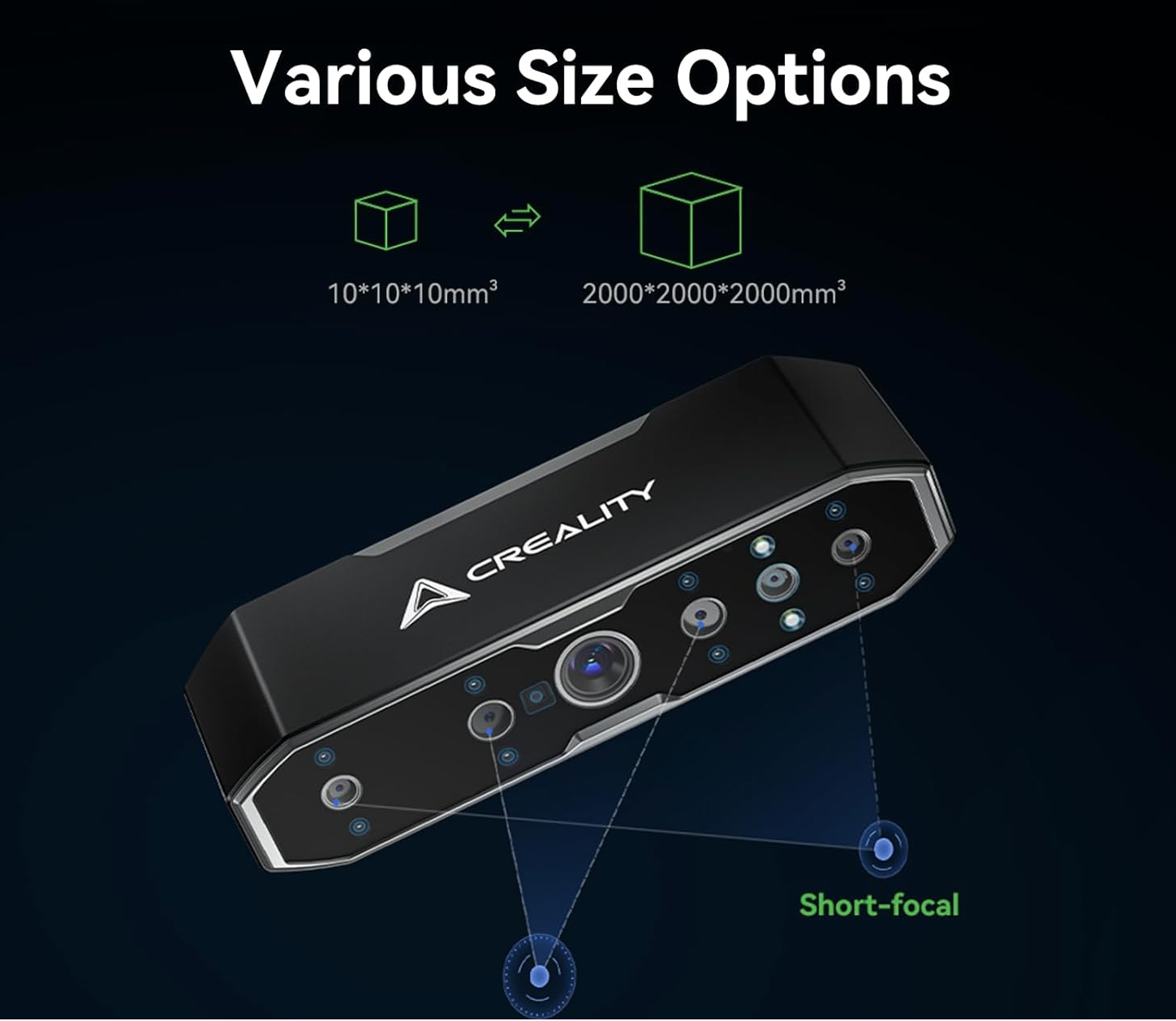

| Scannable Object Size | 10 × 10 × 10 mm to 2000 × 2000 × 2000 mm |
| Single Capture Range | 1346 × 838 mm @ 1000 mm |
| Working Distance | 110–1000 mm |
| Colour Scanning | 24-bit full colour with exclusive colour mapping algorithm |
| Colour Camera | 1-megapixel RGB |
| Infrared Lights | 8, for marker point tracking |
| LED Lights | 2, for low-light environments |
| Outdoor Performance | Operates in ambient light up to 30,000 lux |
| Controls | Three touch buttons with audible feedback, real-time exposure adjustment |
| Status Indicator | Ring indicator lights showing live scanning status |
| Anti-Shake | Single-frame 3D imaging technology |
| Scanning Spray Required | No, handles dark and metallic surfaces directly |
| Software | Creality Scan |
| Operating System | Windows and macOS |
What's in the box
CR-Scan Otter 3D Scanner
USB 3.0 data cable (USB-C/USB-A, 2m)
USB 2.0 power cable (USB-C/USB-A, 1.5m)
Lanyard
Scanning test object (OWL)
USB-C adapters × 2
High-precision calibration board
Reflective markers (Diameter: 6mm × 2, Diameter: 3mm × 2)
Cleaning Cloth
Scanning pad (requires random application of 3mm markers for use)
Quick start guide, certification & warranty card
