Save 8%

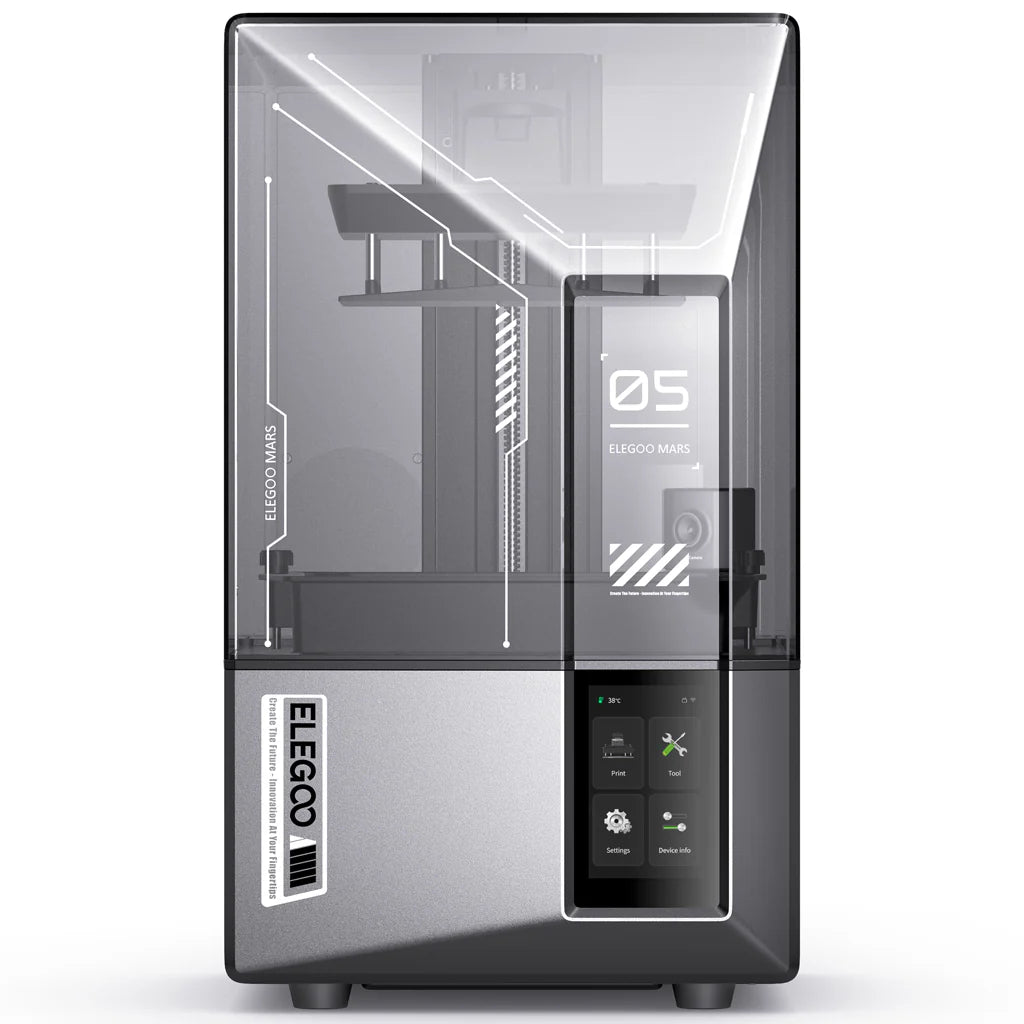

Elegoo Mars 5 Ultra
Regular price
Sale price
Rs. 32,000.00
Regular price
Rs. 35,000.00
Tax included.
Shipping calculated at checkout.
- Automatic Leveling
- Smart Mechanical Sensor
- One-Click Self-Check
- Advanced Overheat Protection
- 6.6-Inch 4K Mono LCD
- COB Light Source
Couldn't load pickup availability
EMI Option Available
EMI payment options are available at payment gateways.
Why Choose Elegoo Mars 5 Ultra

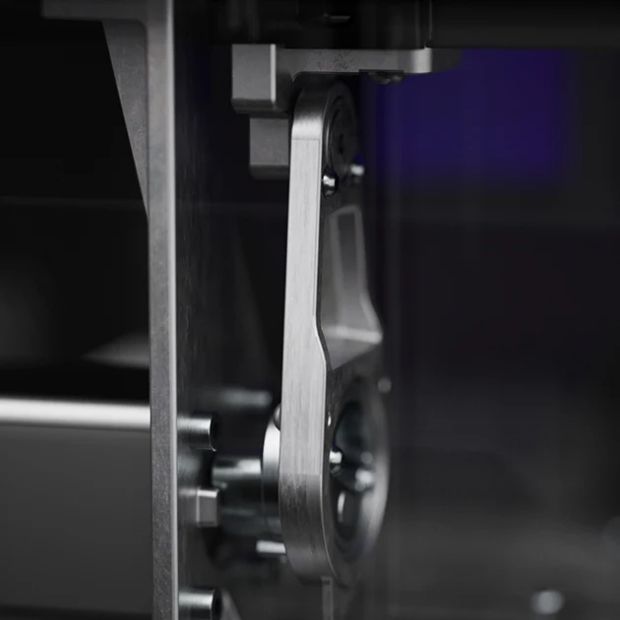

Tilt Release Technology - Up to 150mm/h with switchable fast and slow modes, no loss of detail

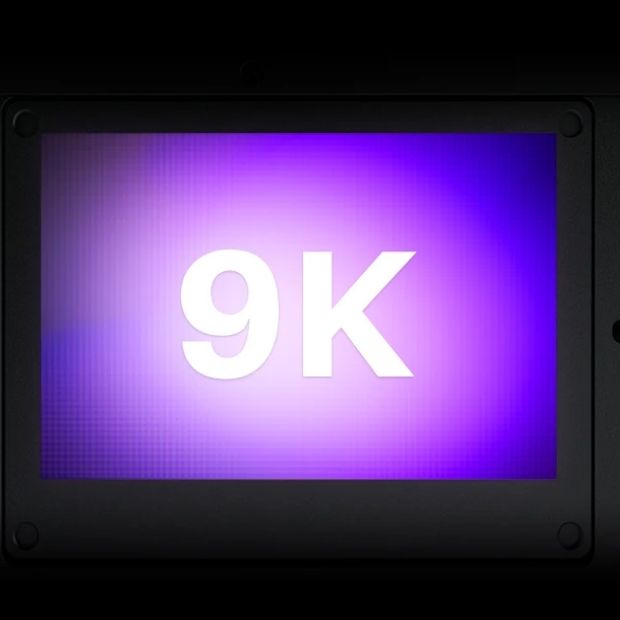

7-inch 9K Mono LCD - 8520×4320 at 18μm XY resolution with 92% light uniformity

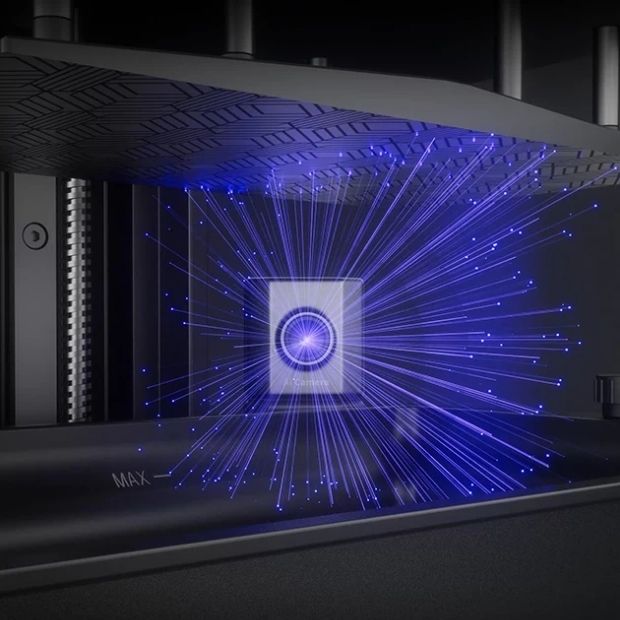

AI Camera Watching Every Print - Detects empty build plates and warping in real time, with time-lapse capture

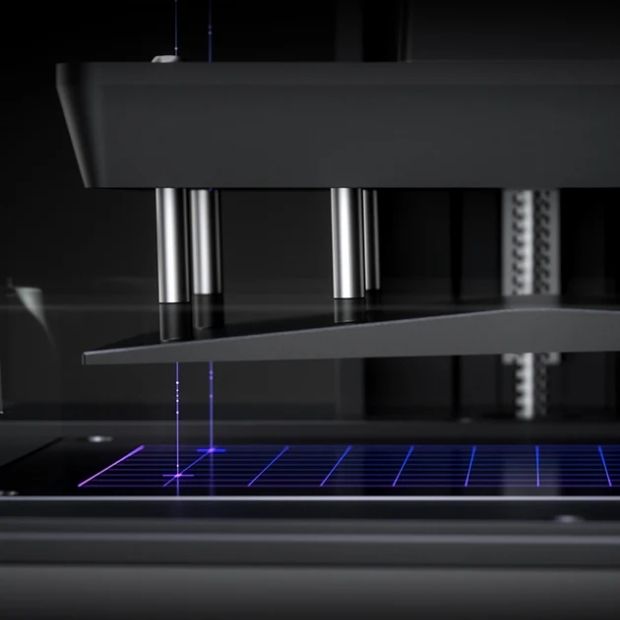

Self-Check and Auto Leveling - One click each, unbox and print with no calibration
Smart Mechanical Sensor - Residue detection protects the LCD, plus resin shortage and leveling alarms
Wi-Fi Cluster Printing - Run multiple printers from one device on the 8GB self-developed system
Elegoo Mars 5 Ultra Specs
| Item | Specification |
|---|---|
| Printing Technology | MSLA |
| LCD Screen Size | 7-inch 9K Mono LCD |
| XY Resolution | 18 μm (8520 × 4320) |
| Build Volume (W*D*H) | 153.36 × 77.76 × 165 mm |
| Printing Speed | Max 150 mm/h |
| Layer Thickness | 0.01–0.2 mm |
| Z Axis Accuracy | 0.02 mm |
| Light Source | COB light source, 405 nm, 92% light uniformity |
| Release Technology | Tilt release, switchable fast and slow print modes |
| LCD Screen Protector | 9H hardness tempered glass |
| Heat Dissipation | 3 copper heat pipes + single fan |
| Connection Method | Wi-Fi, USB |
| System | EL3D-4.0, 8 GB ROM |
| Slicer Software | ChituBox |
| Operation Screen | 4.0-inch capacitive touch screen |
| Auto Leveling | One-click, via intelligent mechanical sensor |
| Self-Check | One-click component check, with release film reminder at 60,000 uses |
| AI Camera | Empty build plate detection, warp detection, real-time monitoring, time-lapse recording |
| Smart Mechanical Sensor | Resin shortage alarm, residue detection alarm, leveling failure alarm |
| Overheat Protection | Alarm and auto-halt above 80 °C LED temperature |
| Power-Loss Resume Printing | Yes |
| Section-Based Exposure | Yes, per-section exposure tuning |
| Wi-Fi Cluster Printing | Yes, control multiple printers from one device |
| Build Plate | Laser-engraved, quick-release |
| Resin Tank | Dual pour spouts, drip tray, replaceable lock screws |
| Frame | Metal |
| Resin Compatibility | Supports most resins including water-washable, standard, ABS-like and plant-based |
| Air Purifier | USB connection unavailable; compatible with Mars Mate air purifier |
| Languages | Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese |
| Printer Dimensions | 260 × 268 × 451.5 mm |
| Net Weight | 8.8 kg |
| Gross Weight | 10.8 kg |
| Power Requirements | 100-240V 50/60 Hz, 24V 3A |
