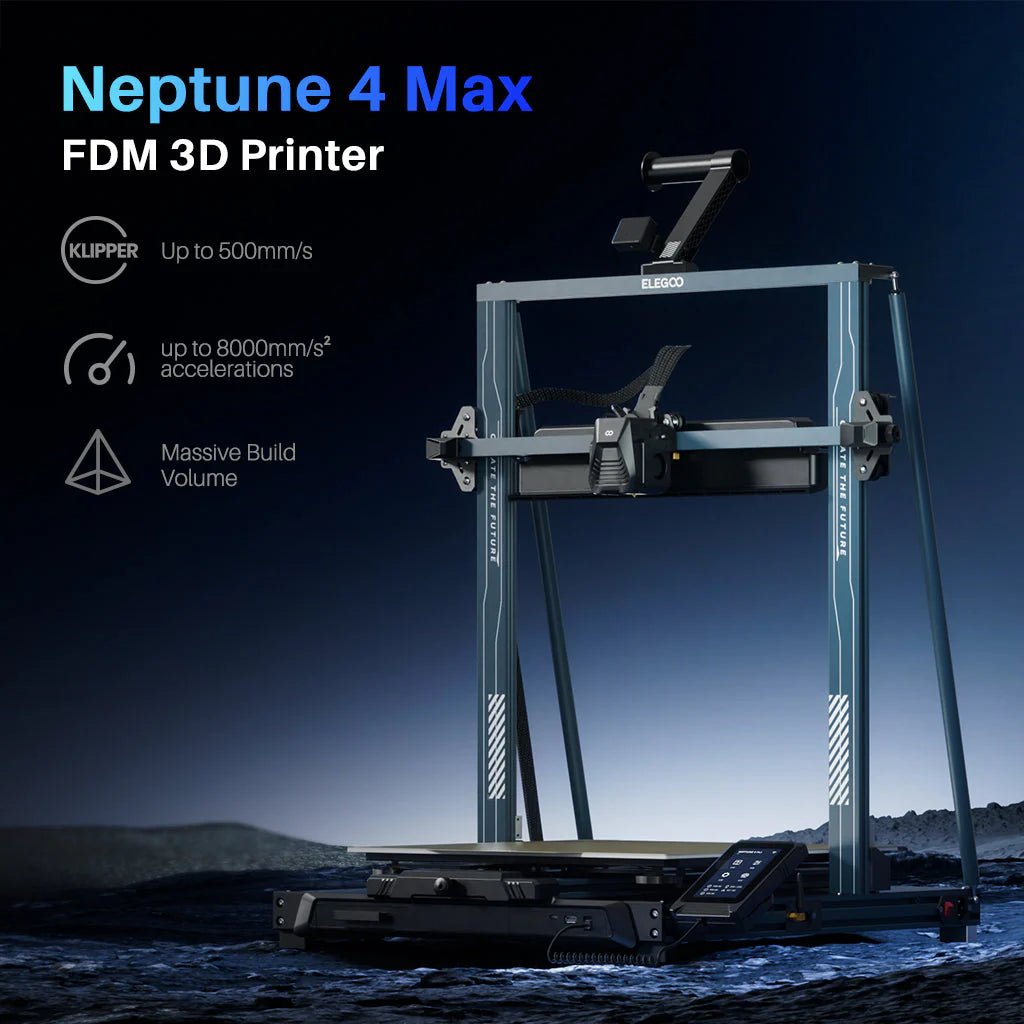

Elegoo Neptune 4 Max
Elegoo Neptune 4 Max
SKU:3DP_ME_ELG_4MAX
- Print Volume: 420 x 420 x 480 mm³
- Max Printing Speed: 500 mm/s

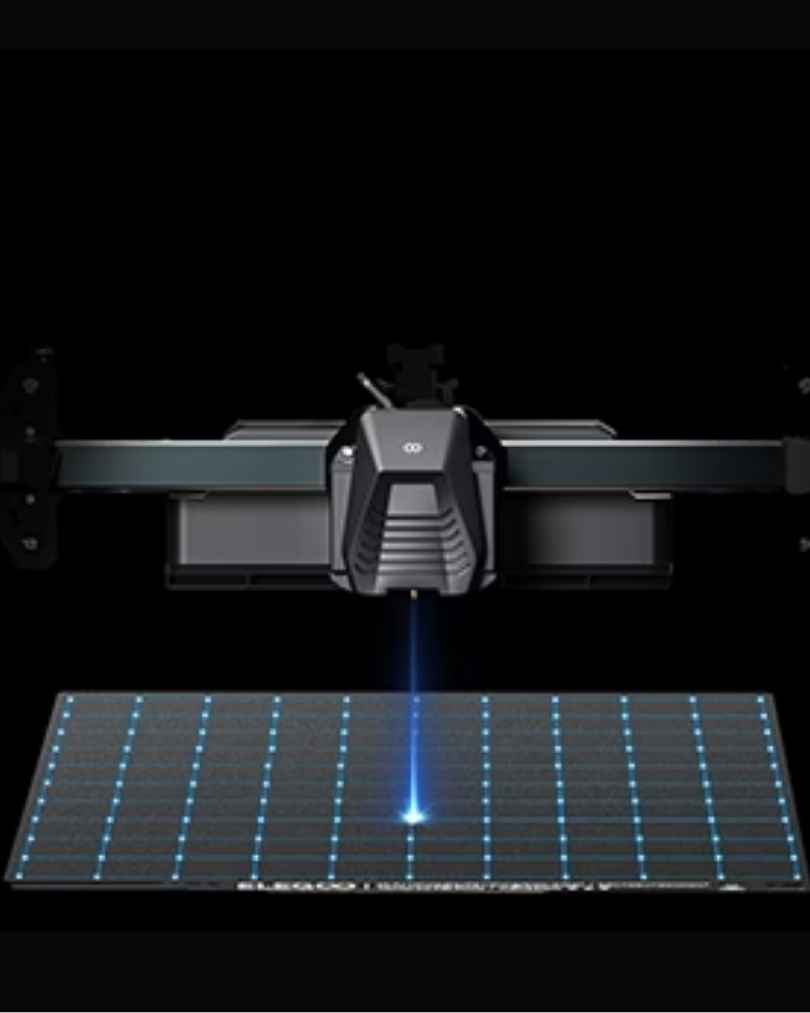

- 121 (11 x 11) Points Auto Bed Leveling
- Up To 300 °C High-Temp Nozzle
- Support PLA/TPU/PETG/ABS/ASA/Nylon Filaments
- WIFI/WLAN/USB Transfer
Share
-
Description
-
Technical Specification

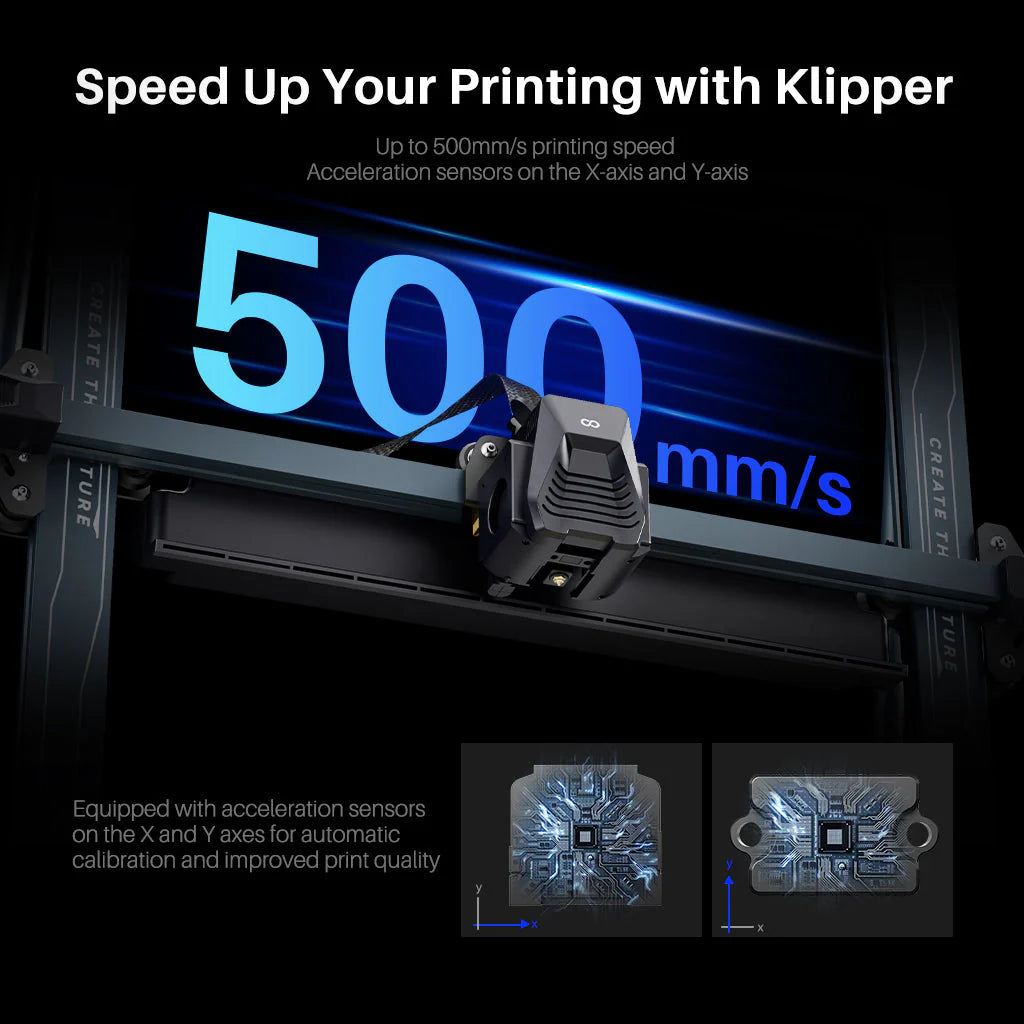

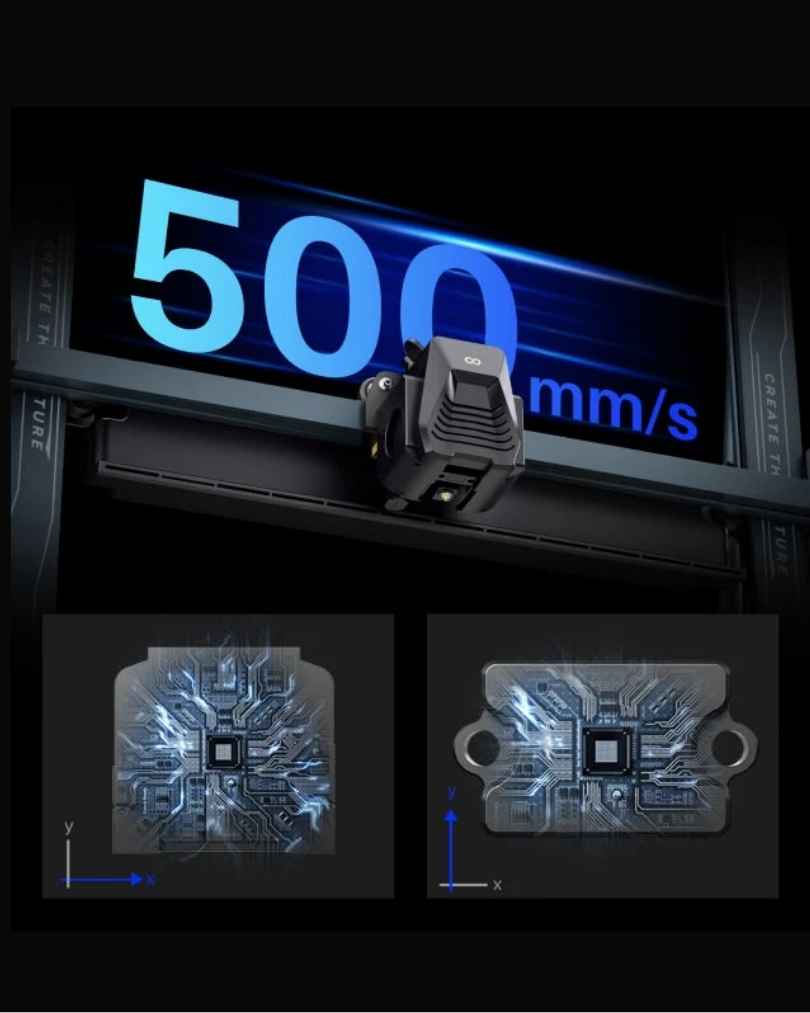

The Neptune 4 Max comes with the powerful Klipper firmware, enabling impressive printing speeds of up to 500 mm/s (default 250 mm/s) and up to 8000 mm/s² accelerations, supporting advanced features such as input shaping and pressure adcancing.
Equipped with acceleration sensors on the X and Y axes for automatic calibration and improved print quality.
Neptune 4 Max adopts a Klipper motherboard and ARM 64-bit 1.5G main frequency quad-core processor.
With pre-installed Klipper firmware, the printing speed can reach 500 mm/s (default 250 mm/s) with up to 8000 mm/s² acceleration. 8G ROM gives you ample storage capacity for various print files.
In addition, the printer supports input shaping and pressure advance to improve print quality and reduce issues like artifacts, filament ooze, and blobbing. With acceleration sensors on the X-axis and Y-axis to automatically calibrate res onance compensation parameters for less vibrations and precise prints.

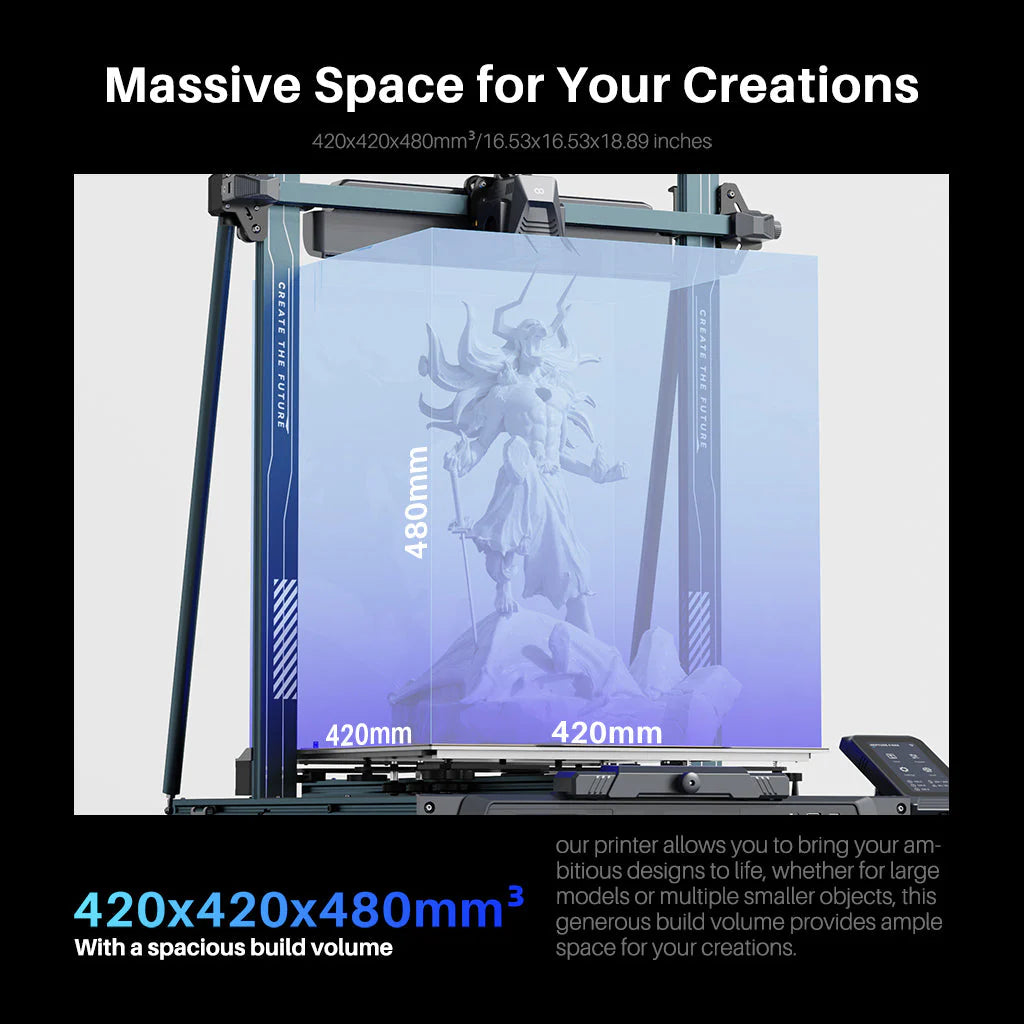

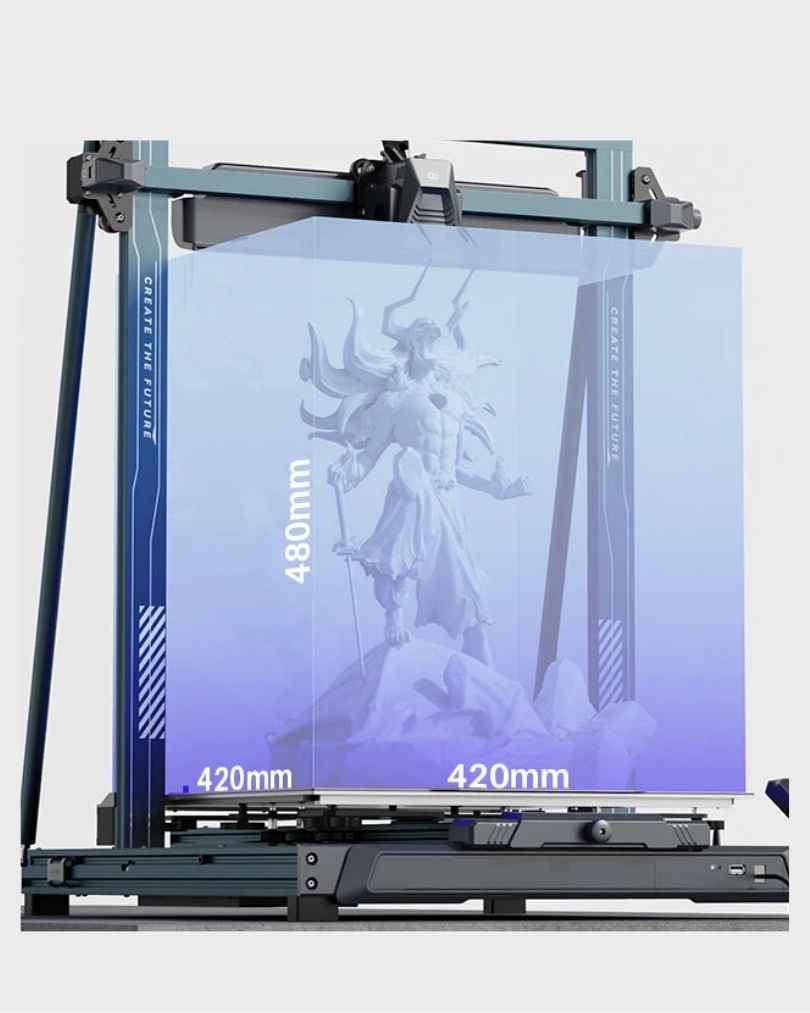

With a spacious build volume of 420 x 420 x 480 mm³, our printer allows you to bring your ambitious designs to life, whether for large models or multiple smaller objects, this generous build volume provides ample space for your creations.

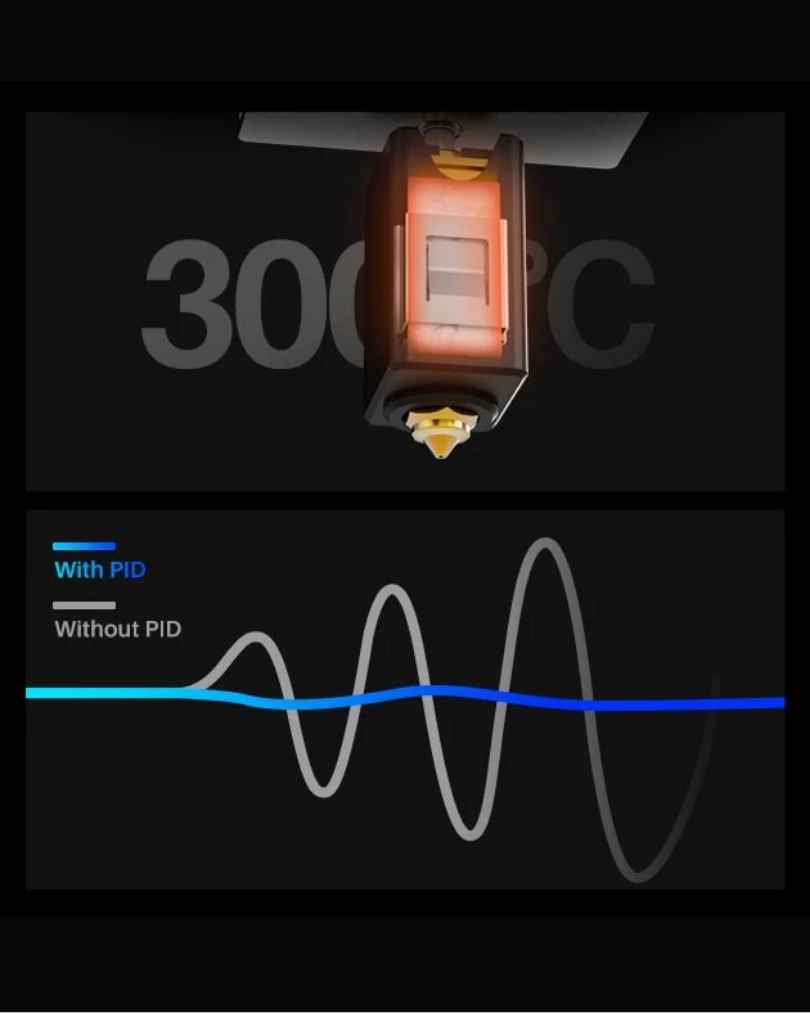

The 300°C high-temp nozzle kit features an extended hot end, a 60W ceramic heating element and a brass heating block, capable of printing various filaments including nylon.
The automatic calibration of nozzle PID parameters ensures precise temperature control for stable and consistent printing performance.

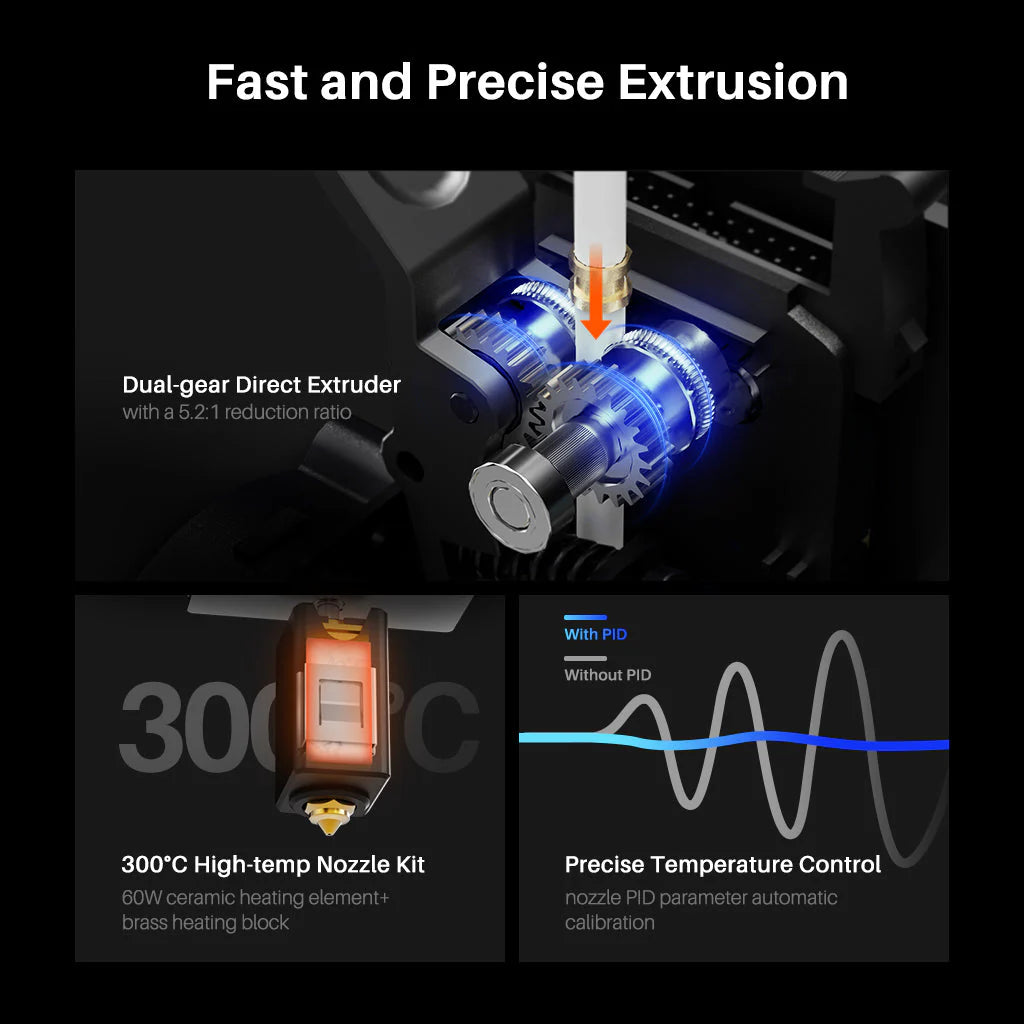

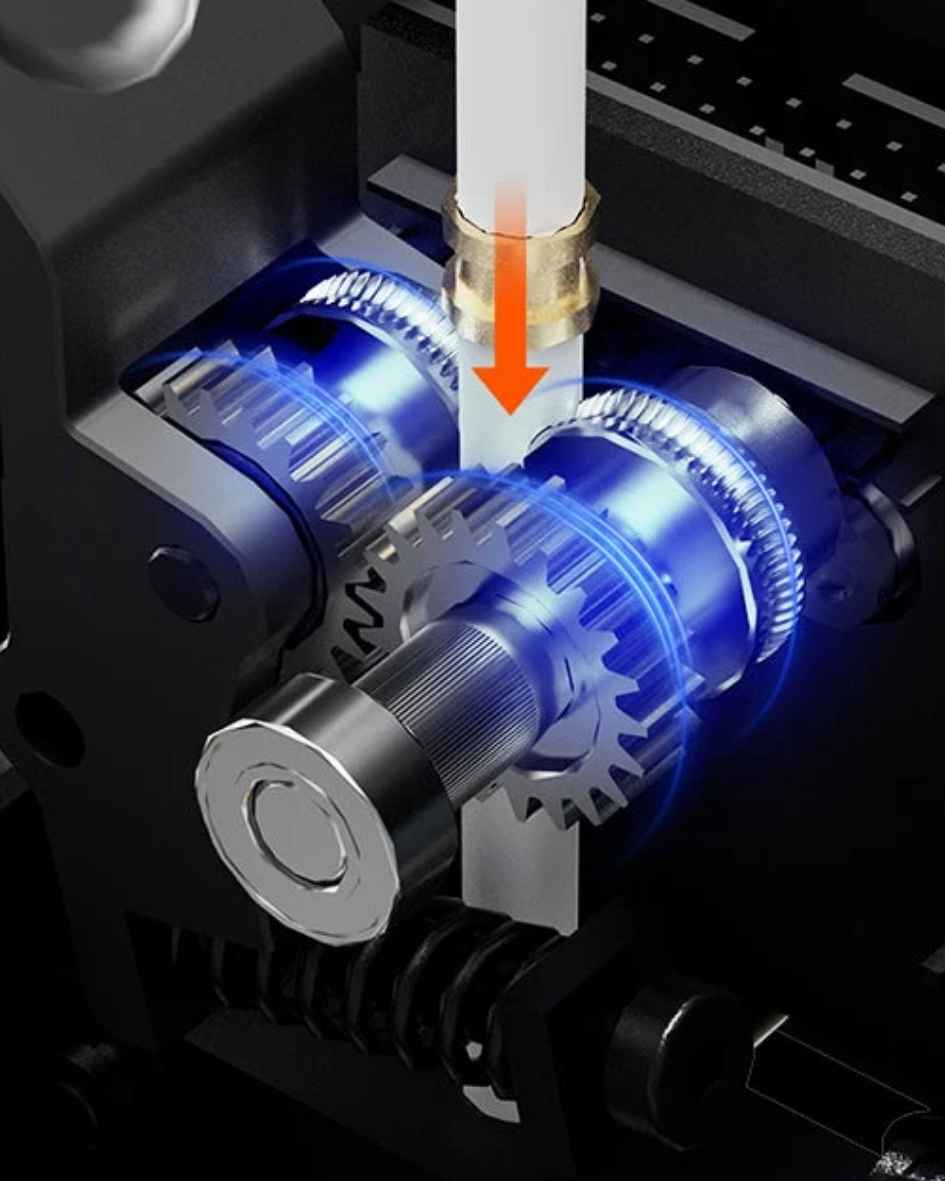

The dual-gear direct extruder with a 5.2:1 reduction ratio for reliable and smooth filament extrusion, weighing only 290g. All-titanium alloy throat pipe enables fast heat dissipation and reduces nozzle clogging. 60W high-power ceramic heating element and brass heating block provide efficient and uniform heating for quick filament melting even during high-speed printing.
The extended hotend nozzle can withstand temperatures up to 300°C, making it capable of printing PLA, PETG, ABS, ASA, TPU, and high-temp filament nylon. (Tips: ABS and ASA filament materials are recommended to be used in conjunction with a 3D printer enclosure)
The automatic calibration of nozzle PID parameters optimizes nozzle thermal performance and temperature control, ensuring consistent and reliable printing results.
Connect seamlessly with our printer using various options including WIFI, U disk, and LAN connectivity.
Enjoy the convenience of WEB remote control printing and multi-machine network printing control for effortless management of your printing projects.
Just start your printing jobs with a one-key file transfer.
Product Model - Neptune 4 Max
Printing Technology - FDM (Fused Deposition Modeling)
Frame Material - CNC machined aluminium extrusion
Voltage - 100-120V/220-240V
File Transfer Method - WIFI, USB, WLAN
File Format -STL, OBJ
UI Language -English, French, German, Russian, Italian, Spanish, Japanese, Chinese
Build Volume -420 x 420 x 480 mm³

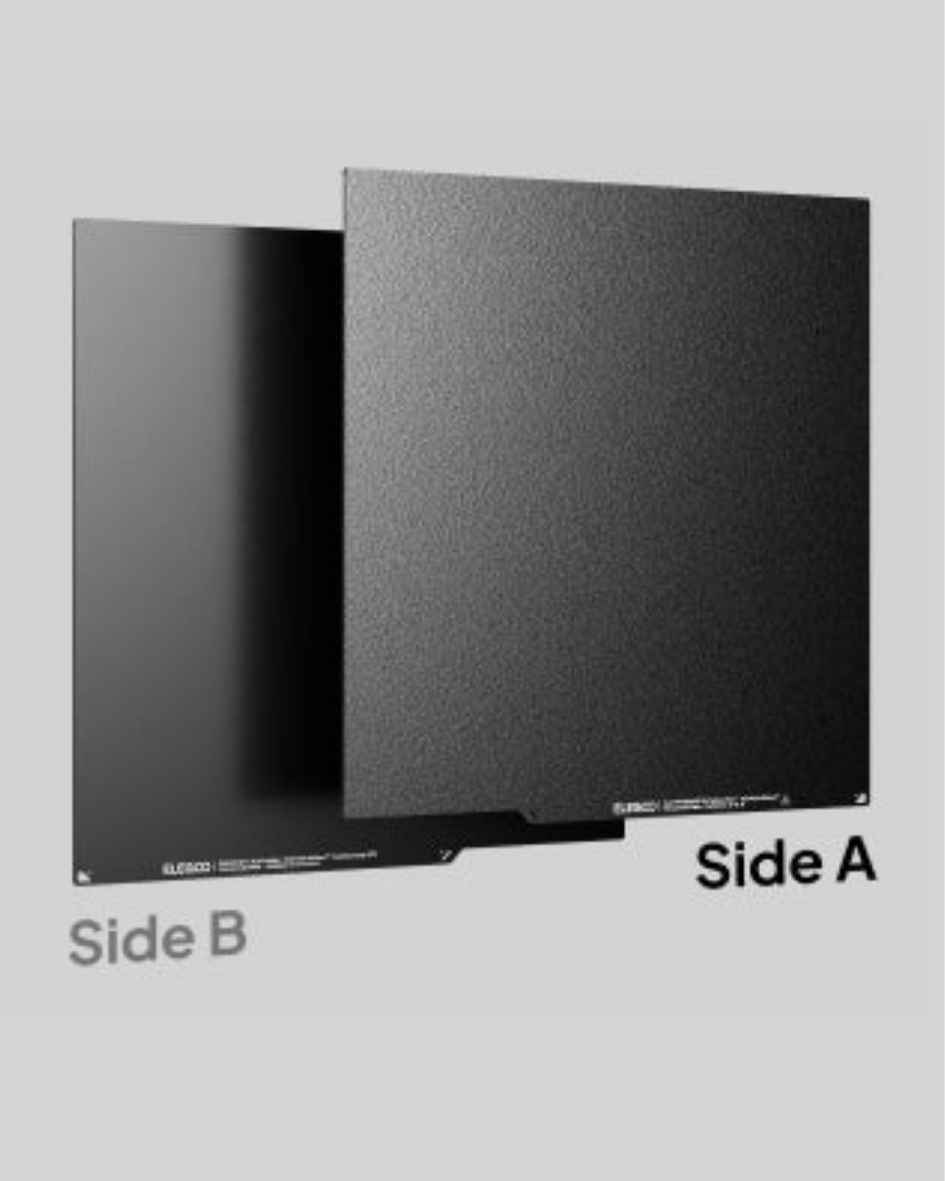

Printing Platform Size (PEI Area) -430 x 430 mm²
Machine Size -658 x 632 x 740 mm³
Package Size -790 x 690 x 290 mm³
MAXIMUM SIZE FOR MACHINE ACTIVITY/MM -658 x 950 x 960 (Including Rack & Tray)
Max. Nozzle Temperature - 300 °C
Max. Hot bed Temperature - 85 °C (ambient temperature 25 °C)
Filament Compatibility - PLA / TPU / PETG / ABS / ASA / Nylon
Net Weight - 18.1 kg
Gross Weight - 26.35 kg
Resume Printing - Yes
Filament Detection - Yes
Max Speed of Tool Head - 500 mm/s
Max Acceleration of Tool Head - 8000 mm/s²
