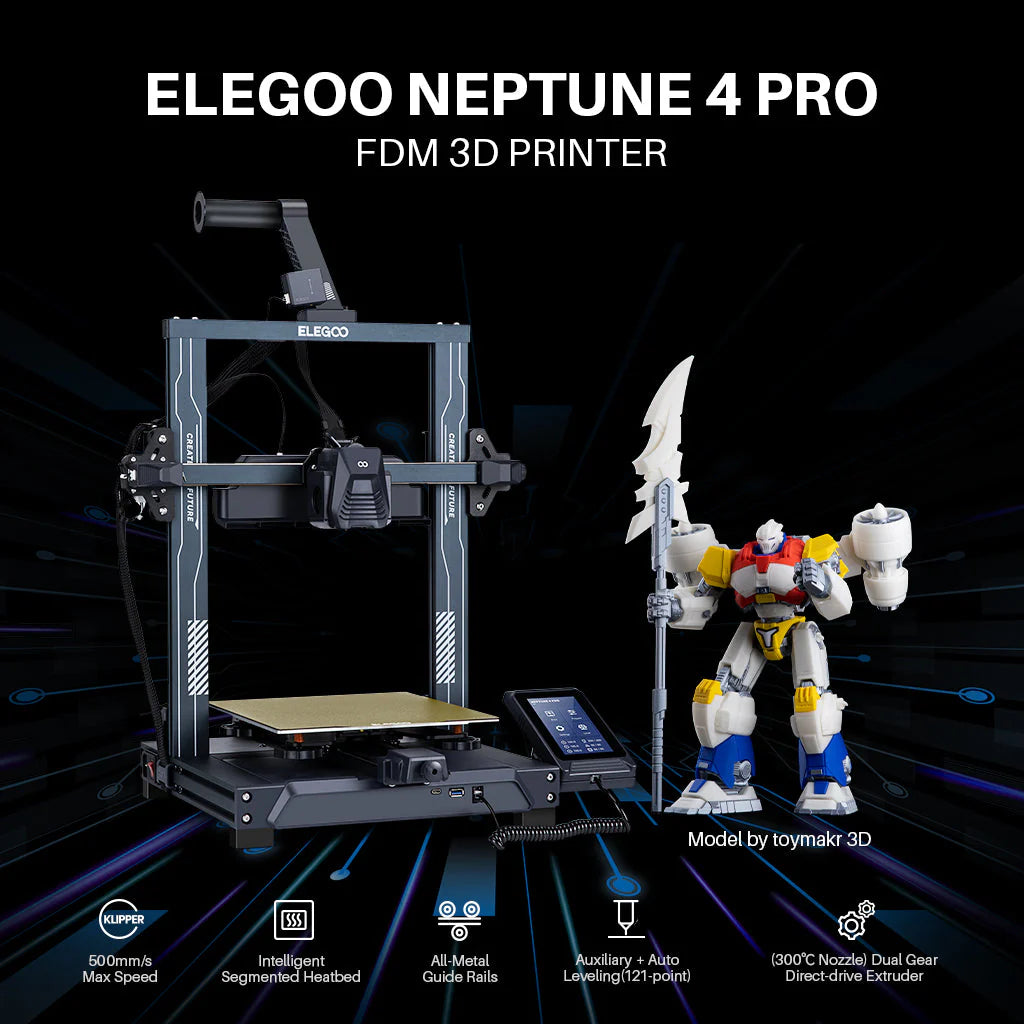

Elegoo Neptune 4 Pro
Elegoo Neptune 4 Pro
SKU:3DP_ME_ELG_4PRO
- Print Volume: 225 x 225 x 265 mm³
- Max Printing Speed: 500 mm/s
- Intelligent Segmented Heatbed

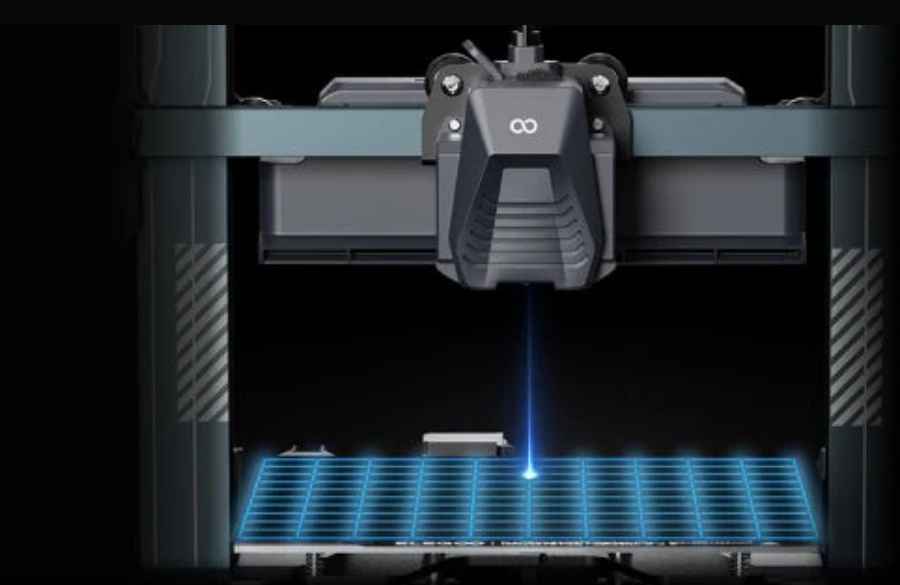

- 121 (11 x 11) Points Auto Bed Leveling
- Up To 300 °C High-Temp Nozzle
- Support PLA/TPU/PETG/ABS/ASA/Nylon Filaments
- USB/LAN Transfer
Share
-
Description
-
Technical Specification

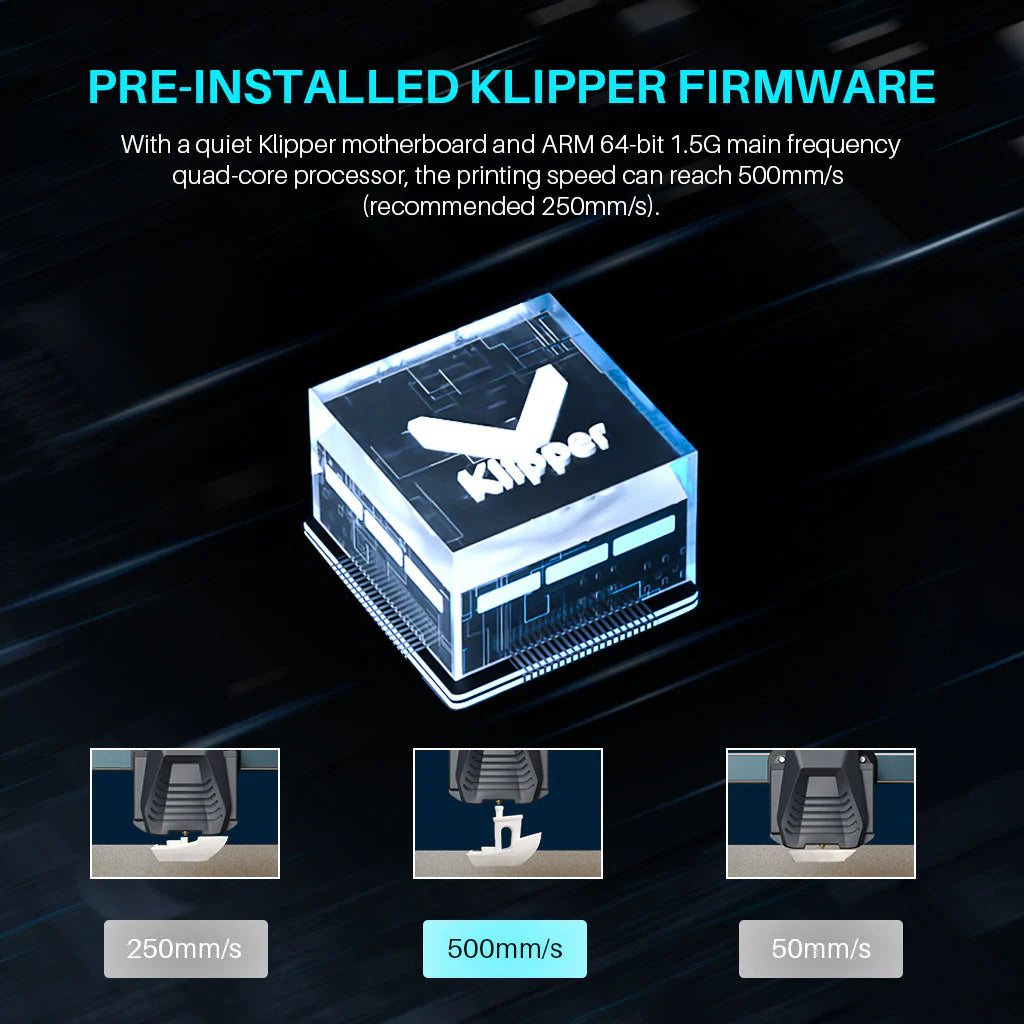

With the Klipper motherboard and ARM 64-bit 1.5G main frequency quad-core processor to process and execute commands faster, Neptune 4 Pro can print at up to 500mm/s, allowing you to complete your print projects quickly and efficiently. With our pre-installed Klipper firmware, you can start printing right away without the hassle of firmware installation.
In addition, it supports input shaping, which helps eliminate artifacts and resonances on the model surface, and pressure advance, which helps predict nozzle pressure for more accurate and consistent extrusion and less filament ooze and blobbing.
The printer's dual-gear direct drive extruder is another key feature that ensures smooth and consistent extrusion, weighing only 75% of the weight of the Neptune 3 Pro.

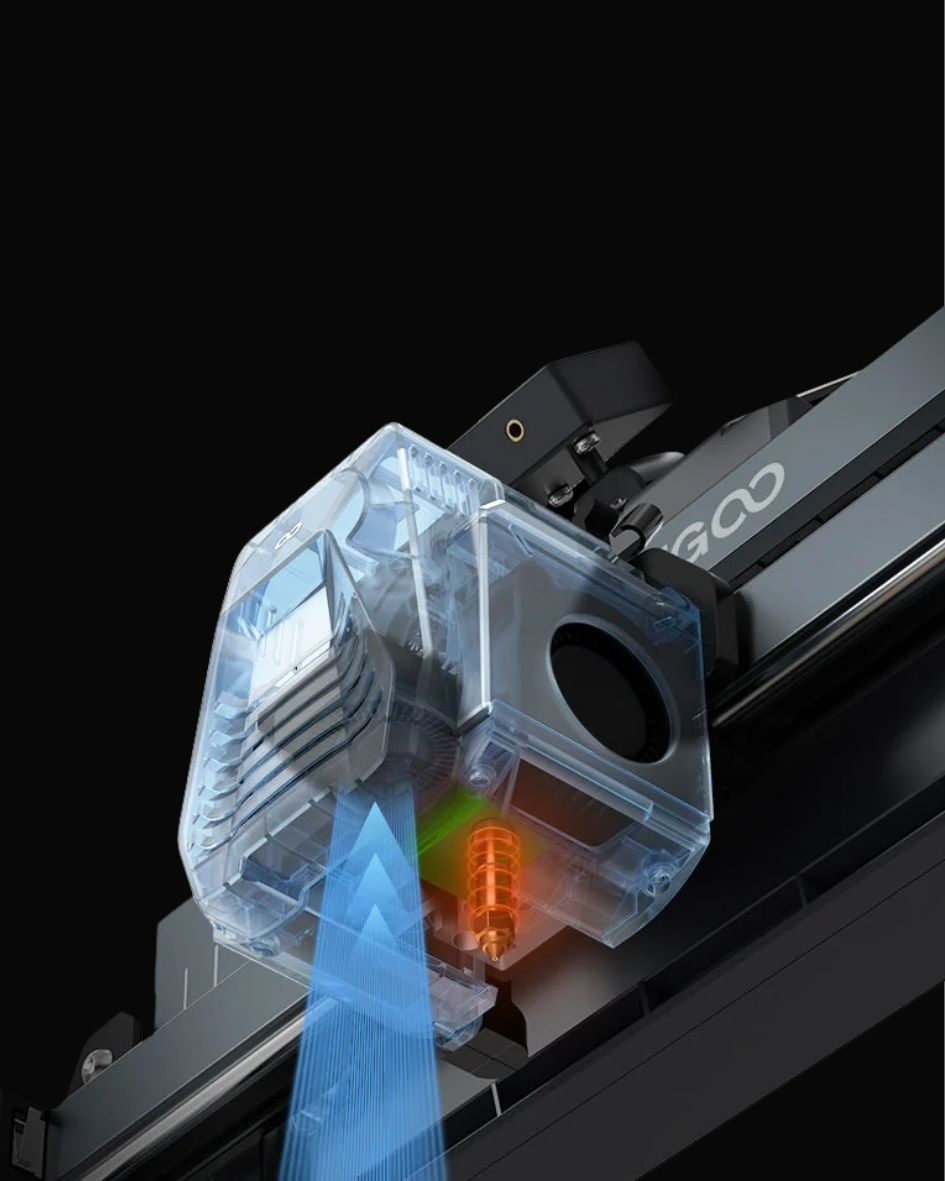

The 5.2:1 reduction ratio and dual-gear design ensure a firm grip on the filament and prevent the flexible filament from slipping and grinding. The copper-titanium bi-metal throat pipe has a unique air duct design for faster heat dissipation of the throat pipe and less nozzle clogging.
The 300°C high-temp nozzle with an extended hotend design to fully melt the filament, and you can explore a wider range of materials, such as PLA, PETG, ABS, ASA, TPU, and high-temp filaments like nylon.
(Tips: ABS and ASA filament materials are recommended to be used in conjunction with a 3D Printer Enclosure)

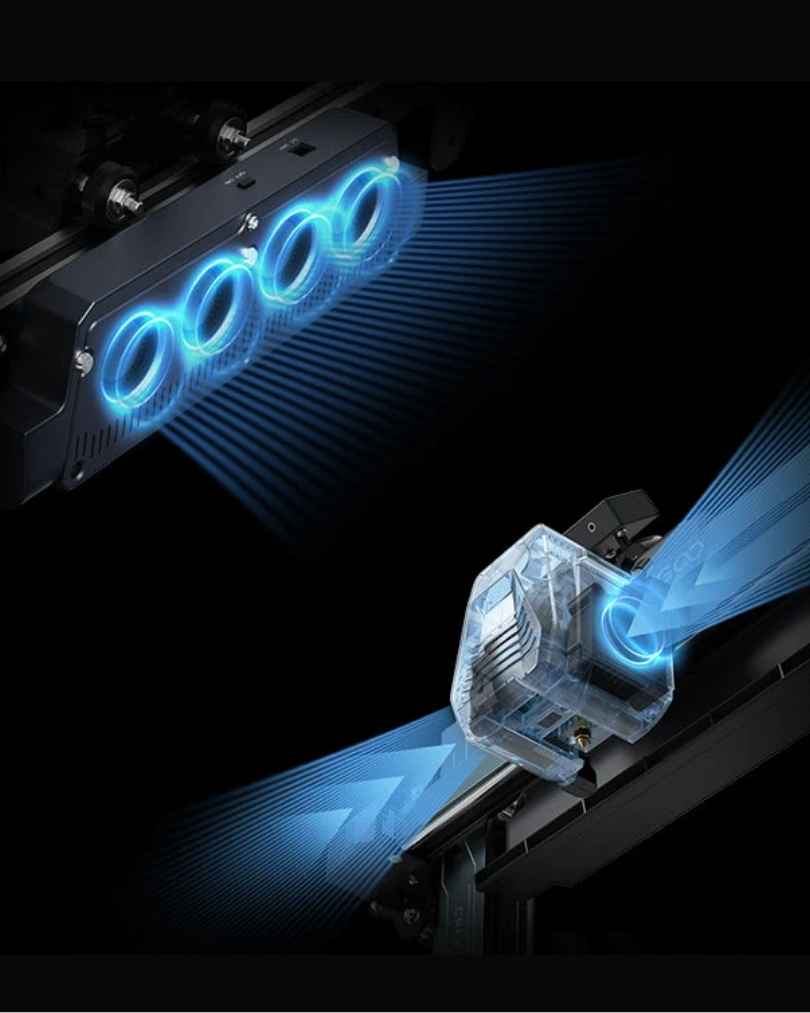

In addition to the two thickened 4015 ball bearing cooling fan on both sides of the print head, there are four 4020 ball bearing auxiliary fans behind the print head, which ensures omnidirectional rapid cooling of the newly printed layers even at a fast printing speed, and the deposited hot filament quickly bond together for better overhang and bridge results.

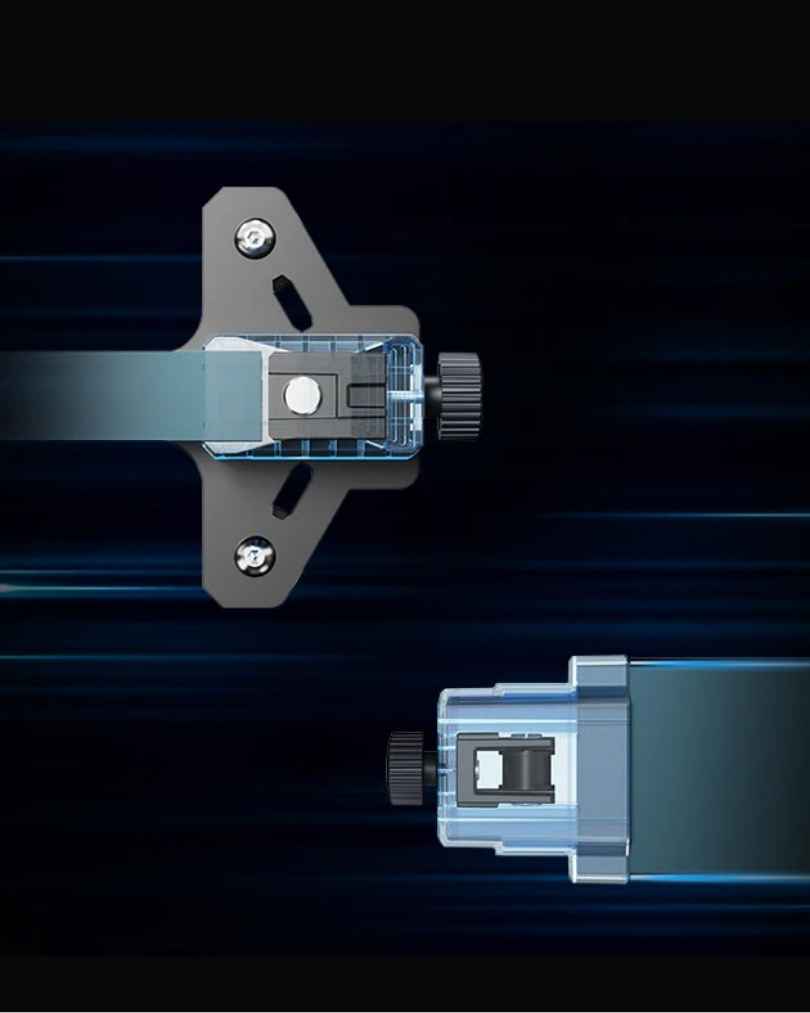

The ELEGOO Neptune 4 Pro 3D printer is designed for quiet and precise printing with its silent drivers for all axes, reducing noise to below 50db. Its wear-resistant POM V-guide wheels moves quietly, smoothly, and accurately.
The Z-axis dual lead screw + Z-axis dual motor design provides better synchronization, increasing the accuracy and stability of the print head movement.
Support advanced functions like input shaping and pressure advance to achieve smooth model surface and consistent extrusion

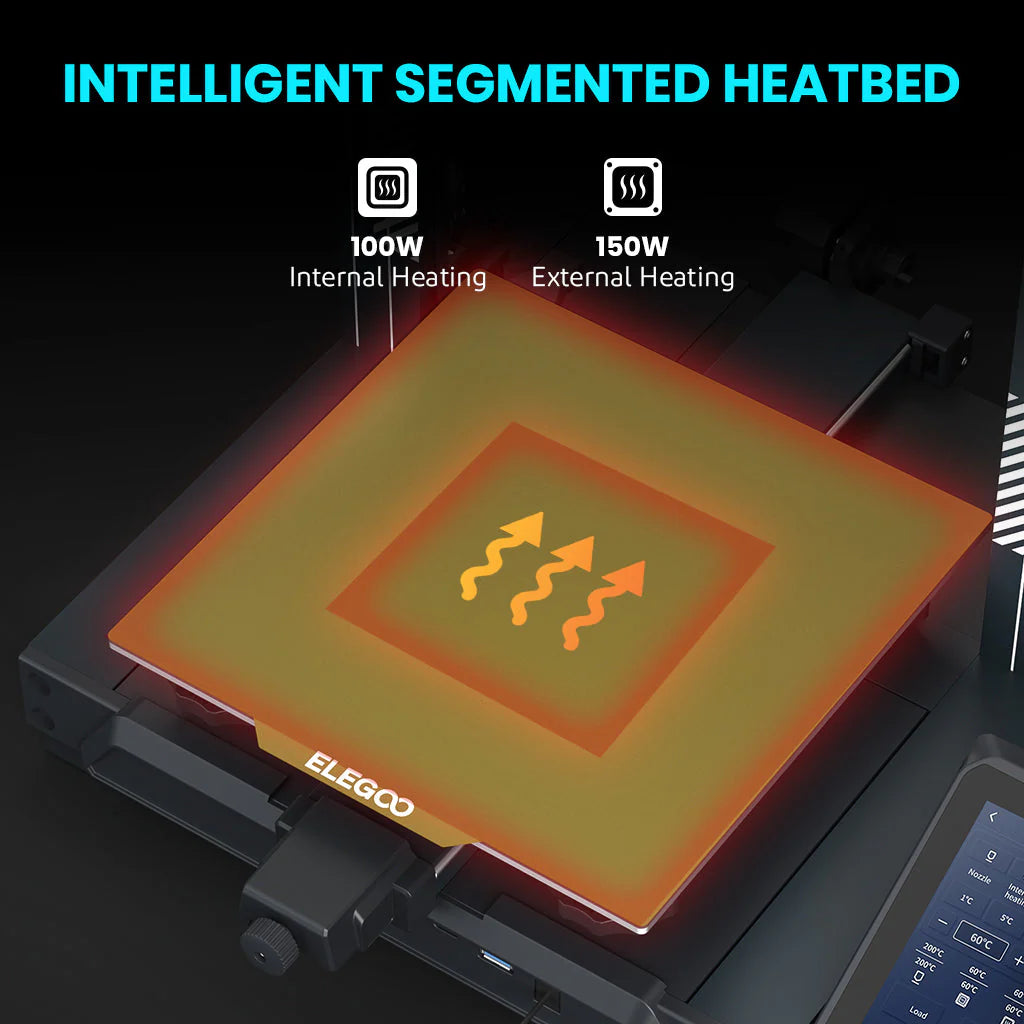

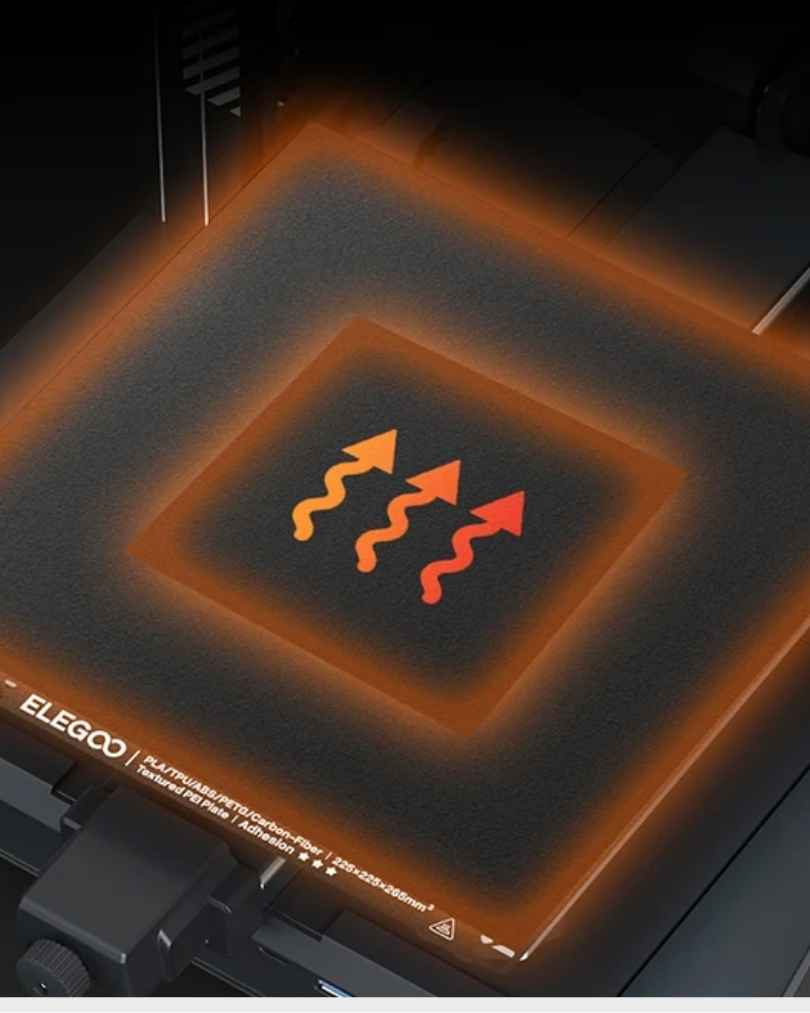

With 100W+150W power output, the slicing software automatically recognizes the size of the model during slicing and activates the peripheral heating zone if the model size exceeds the center heating zone (120mmx120mm).
The two partitions can also be turned on and off manually for more precise temperature control.
Additionally, the surface of the PEI magnetic platform is marked for guidance.
Product Model - Neptune 4 Pro
Printing Technology - FDM (Fused Deposition Modeling)
Frame Material - CNC machined aluminium extrusion
Voltage - 115/230V 50/60Hz
File Transfer Method - LAN, USB
File Format - STL, OBJ
UI Language - English, French, German, Russian, Italian, Spanish, Japanese, Chinese

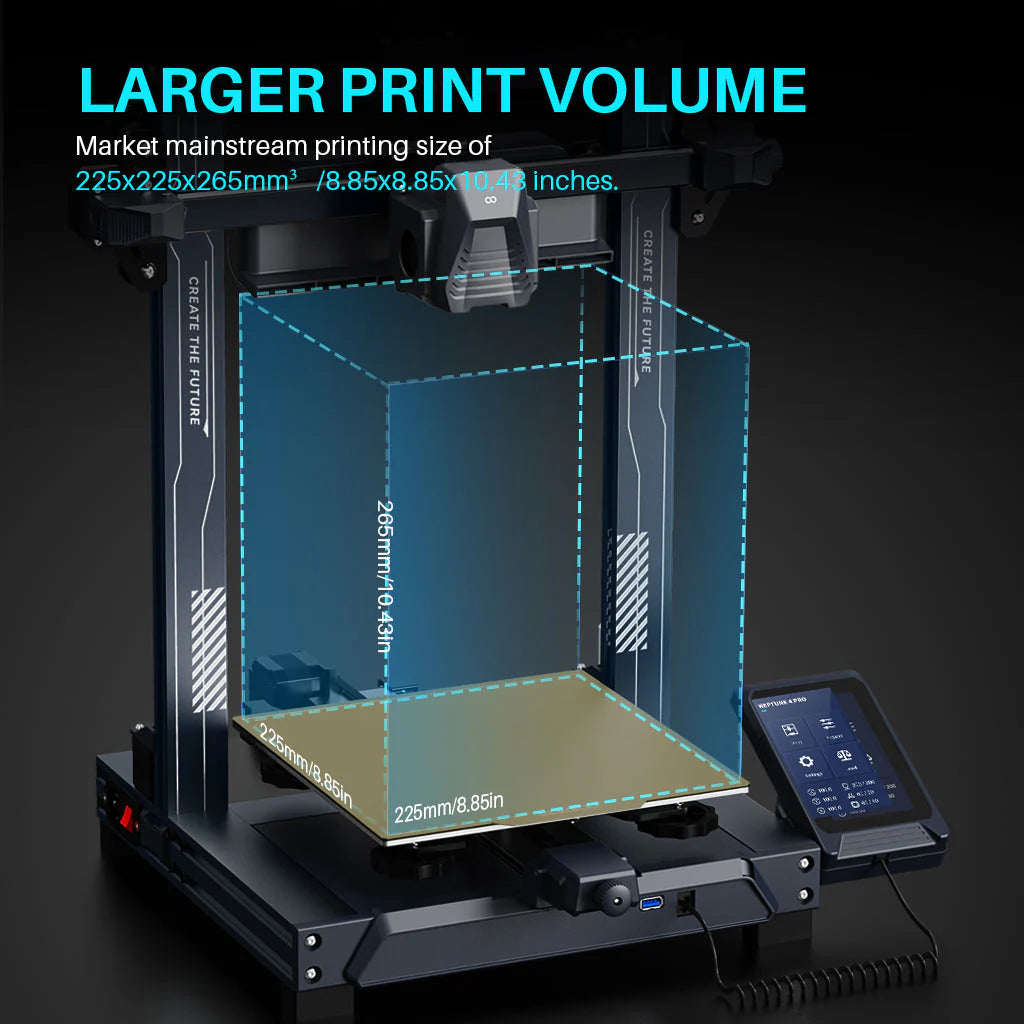

Build Volume - 225 x 225 x 265 mm³
Printing Platform Size (PEI Area) - 235 x 235 mm²
Machine Size - 475 x 445 x 515 mm³
Package Size - 630 x 510 x 260 mm³
MAXIMUM SIZE FOR MACHINE ACTIVITY/MM - 475 x 550 x 735 (Including Rack & Tray)
Max. Nozzle Temperature - 300 °C
Max. Hot bed Temperature - 110 °C
Filament Compatibility - PLA / TPU / PETG / ABS / ASA / Nylon
Net Weight - 8.9 kg
Gross Weight - 13.92 kg
Resume Printing - Yes
Filament Detection - Yes
Max Speed of Tool Head - 500 mm/s
Max Acceleration of Tool Head - 20000 mm/s²
