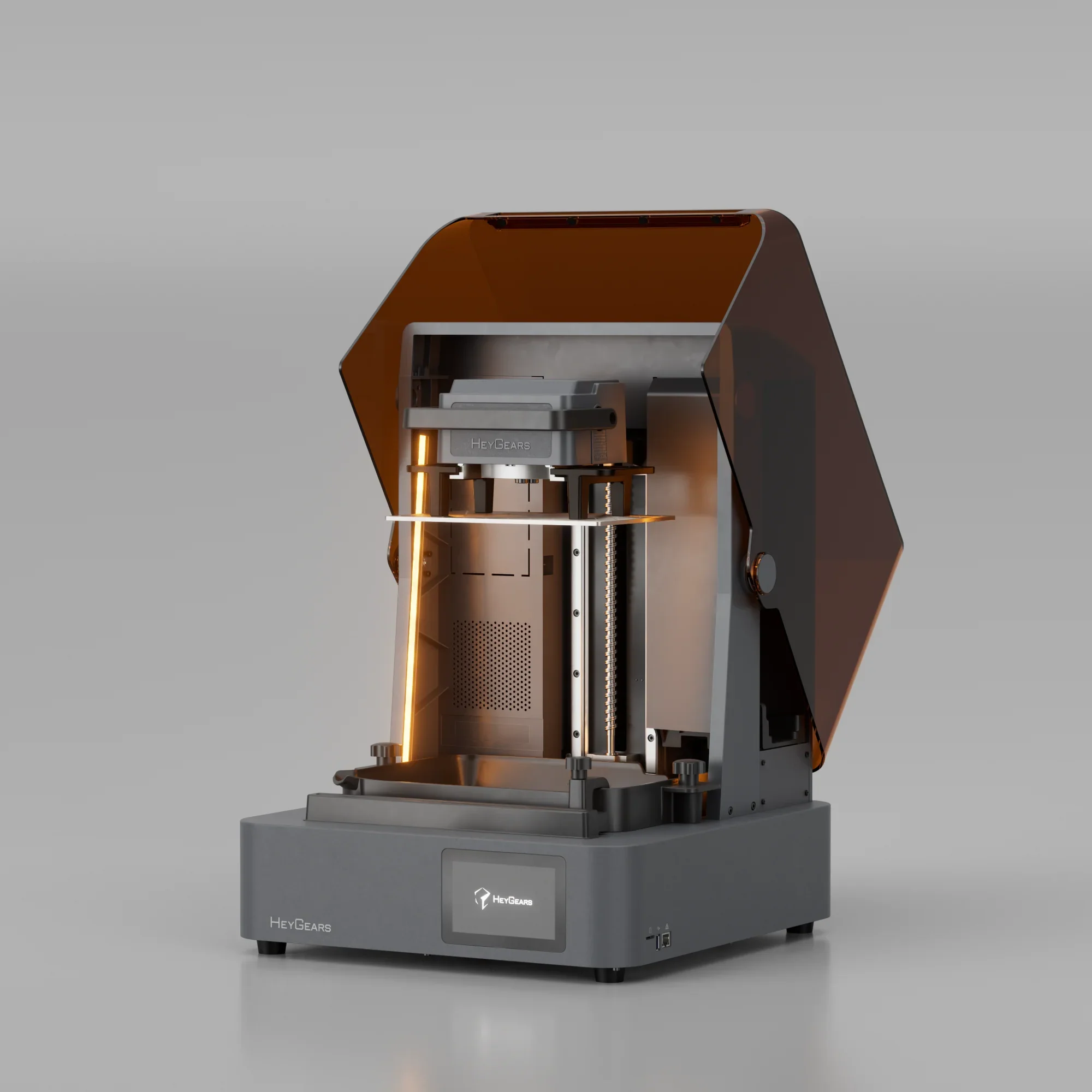

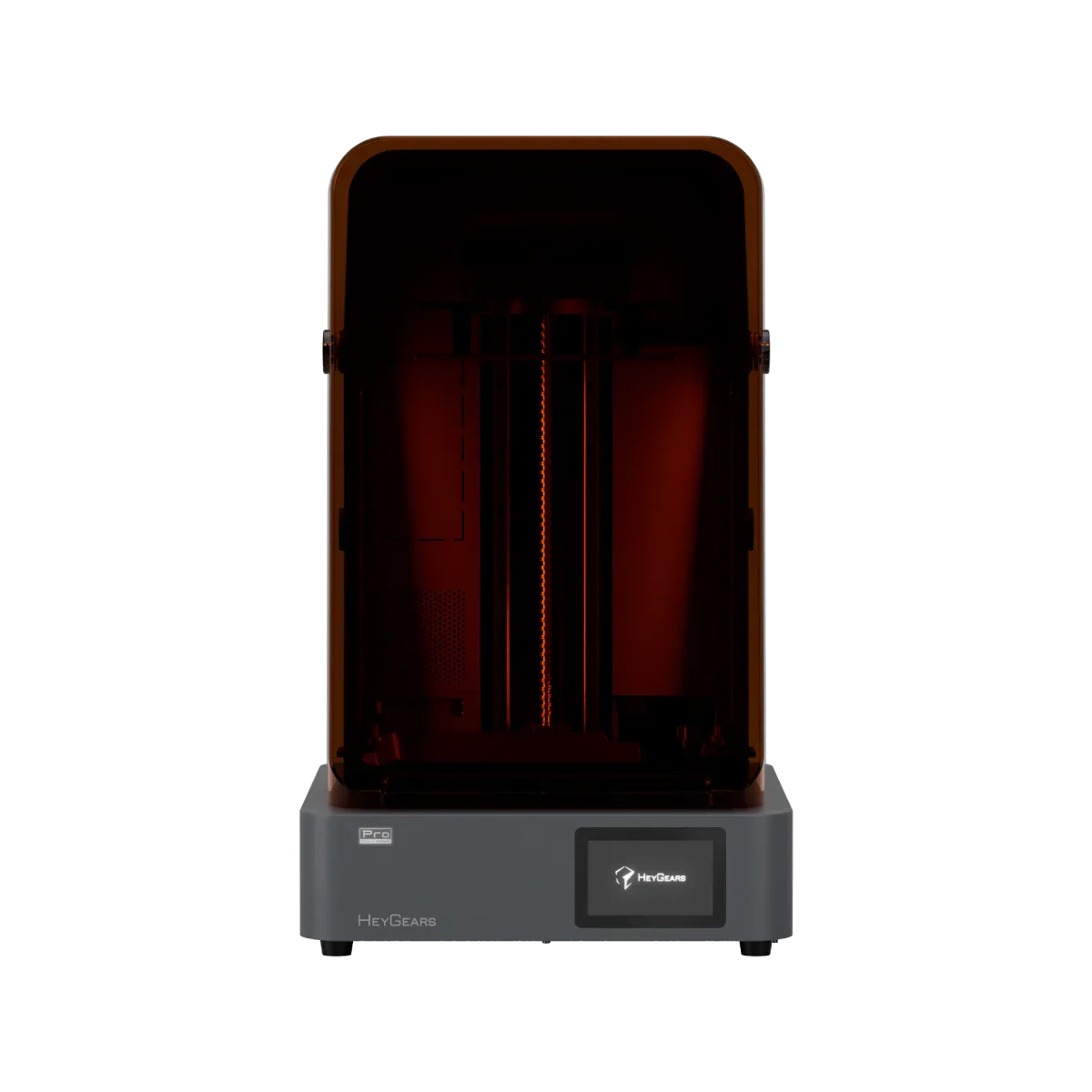

HeyGears Ultracraft Reflex 2 Pro
-
📦 Generous Build Volume — 230 × 144 × 350 mm, now 2.3× larger* for expanded print capacity
-
🔆 Amber Pro Optical Screen — Engineered for durability with over 6,000 hours of lifespan**
-
💡 1032-Zone OptiZone Light Engine — Delivers precise, dynamic exposure control
-
🔬 86,000+ Zone Light Calibration — Ensures ultra-uniform light distribution across the screen
-
🧪 0.15 mm Residue Detection Sensor — Enhances print reliability with fine-level detection
-
🎯 C5-Grade Z-Axis Module — Achieves repeat positioning accuracy at ±2 μm
-
🧱 Die-Cast Unibody Base — Rigid and vibration-resistant for industrial-grade stability
-
🌡️ Intelligent Temperature Control — Maintains thermal precision within ±1 °C
-
🧬 High-Performance Resin Compatibility — Supports a wide range of advanced materials
Couldn't load pickup availability
EMI payment options are available at payment gateways.
Why Choose HeyGears Ultracraft Reflex 2 Pro

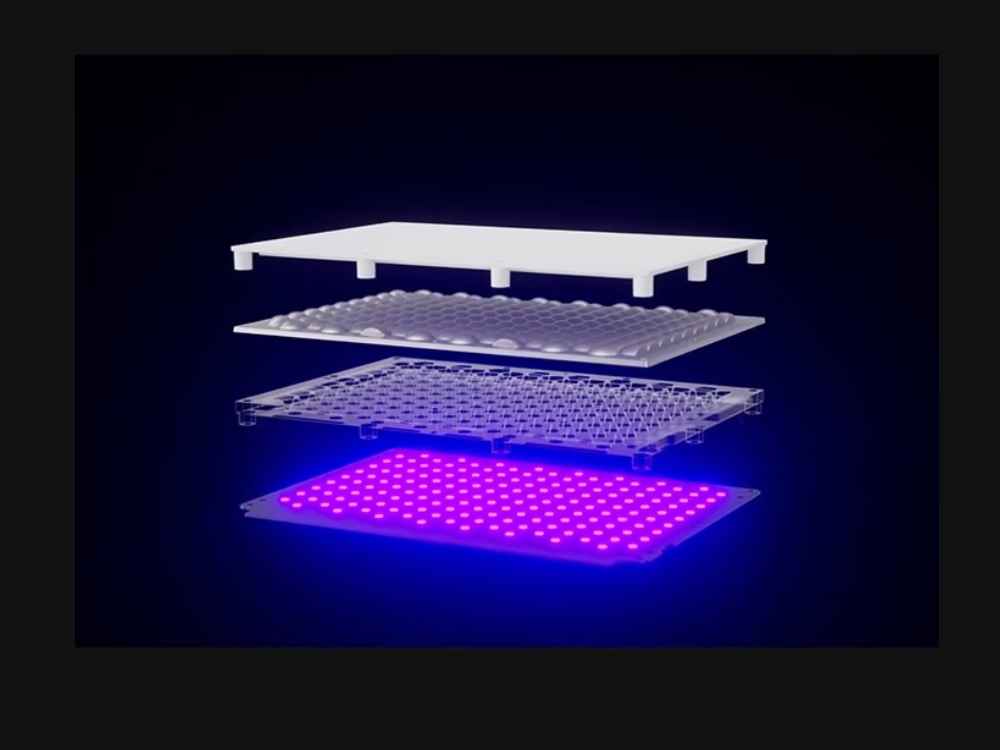

1032 OptiZone Light Engine - Precise light control for flawless surfaces across every batch

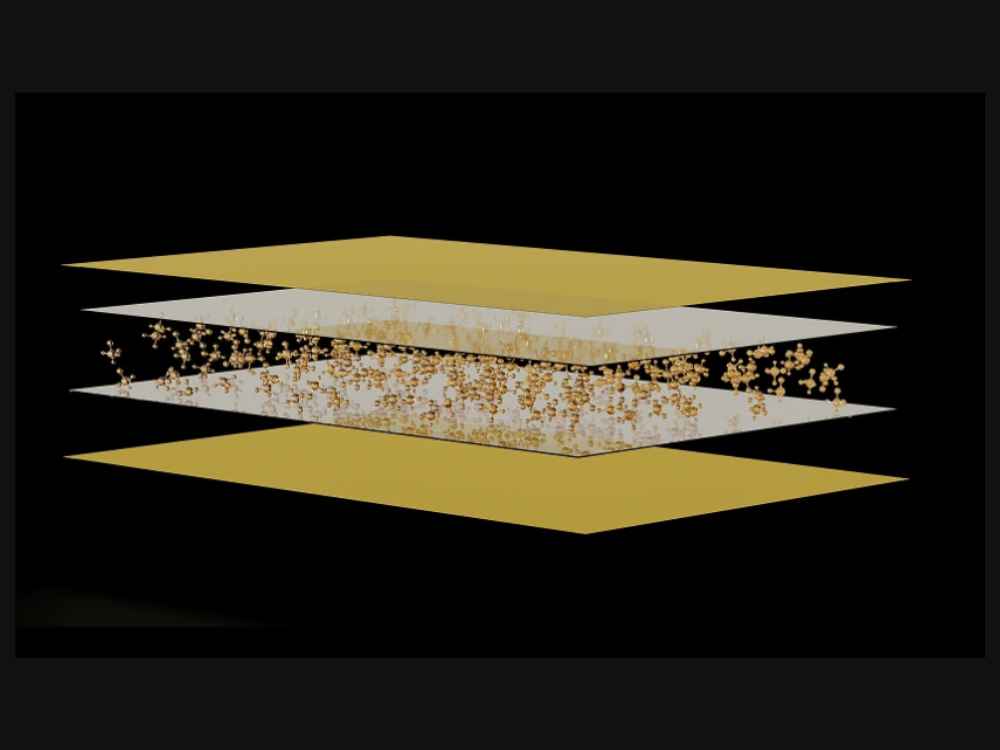

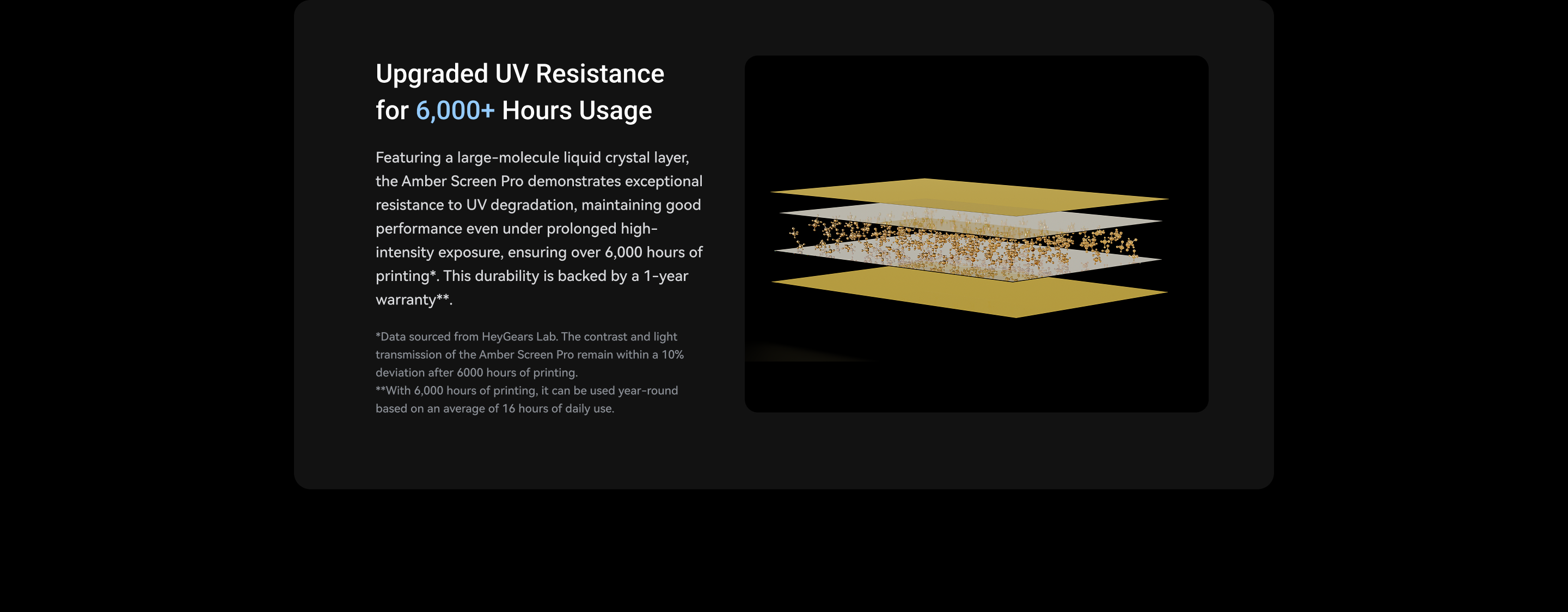

6,000+ Hour Amber Screen Pro - 2x energy transmission, 100x more pressure resistant

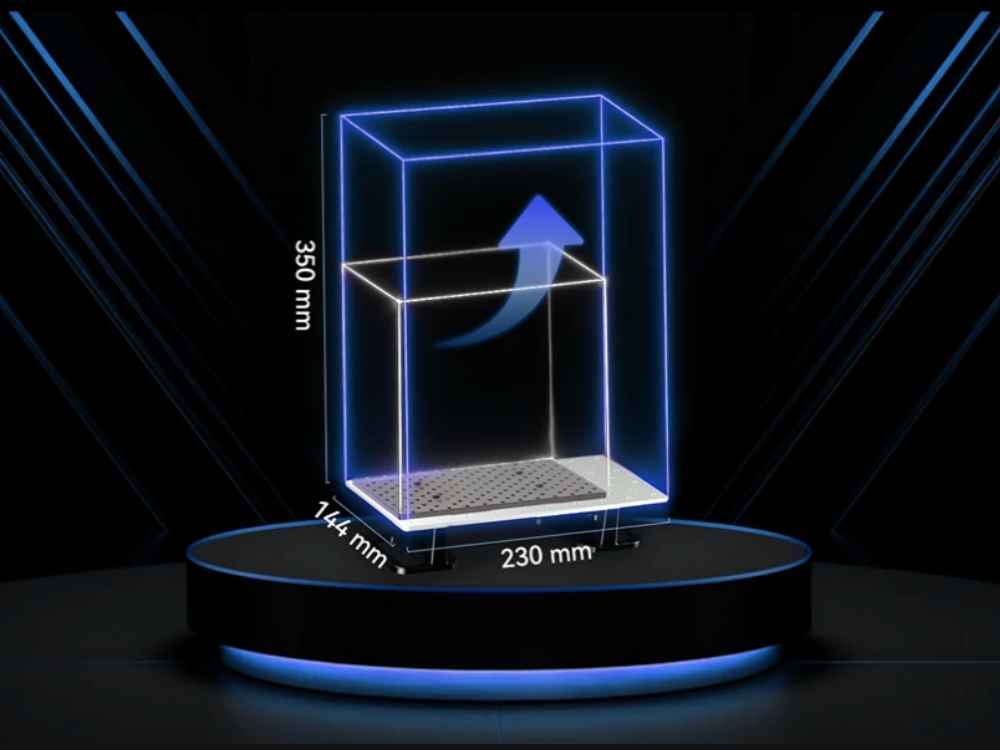

2.3x Larger Build Volume - Print full-sized orthopedic products and shoes in one go

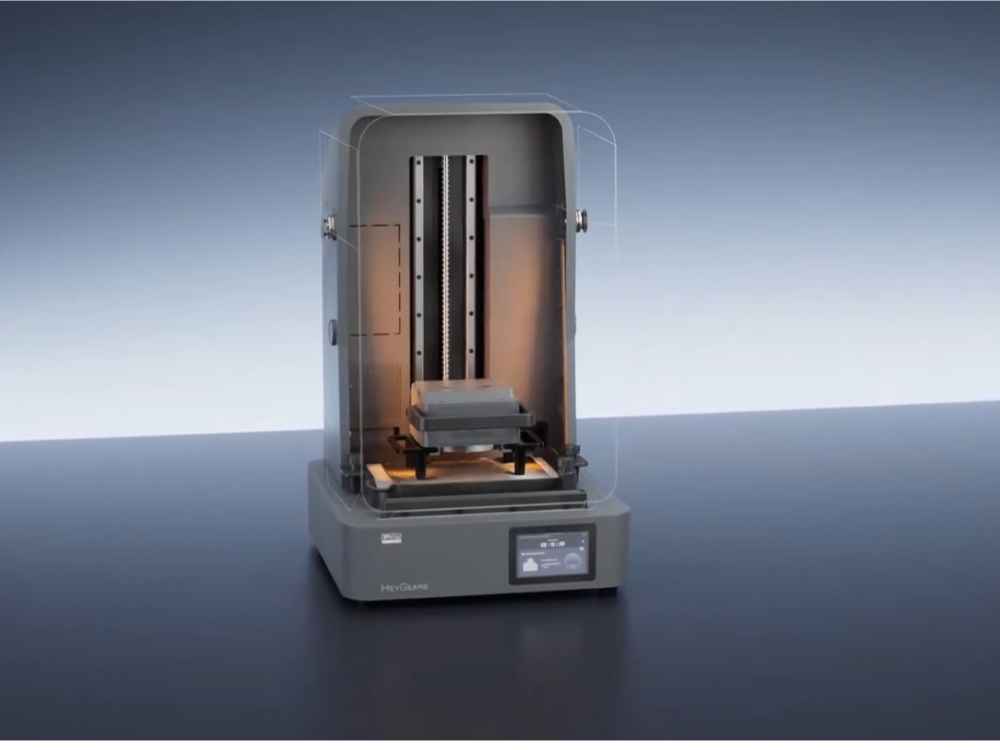

FOC Motor Module - ±2μm positioning accuracy under 80kg load

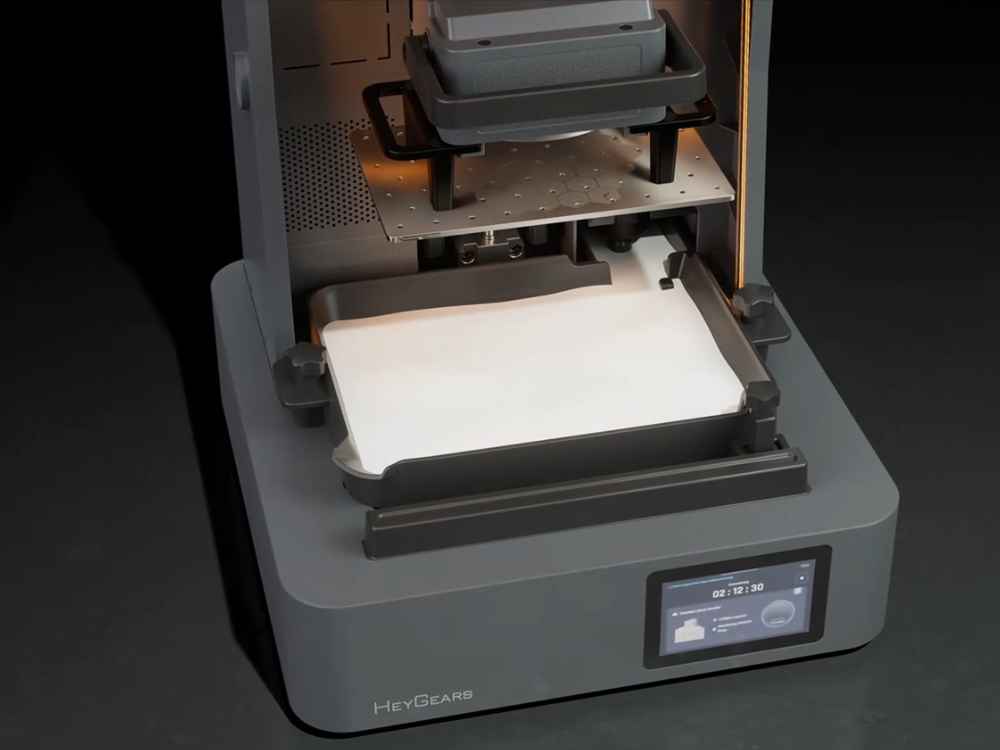

Intelligent Temperature Control - Resin heated from 10°C to 22°C in just 6 minutes

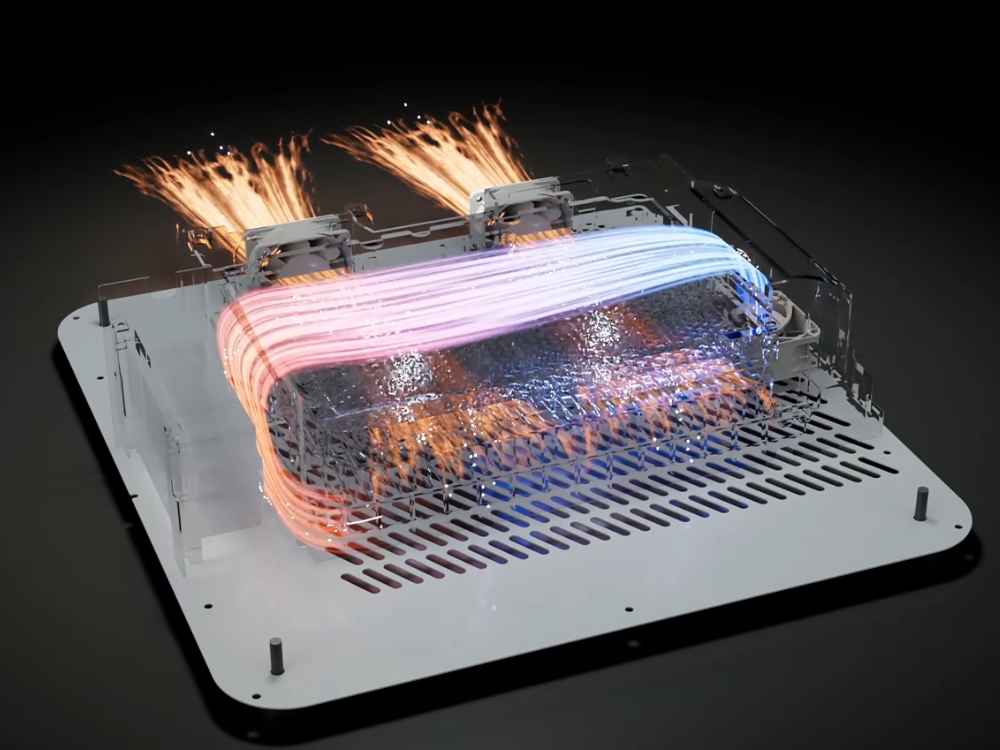

Powerful Thermal Dissipation - Stable 31.2–35°C throughout every long run

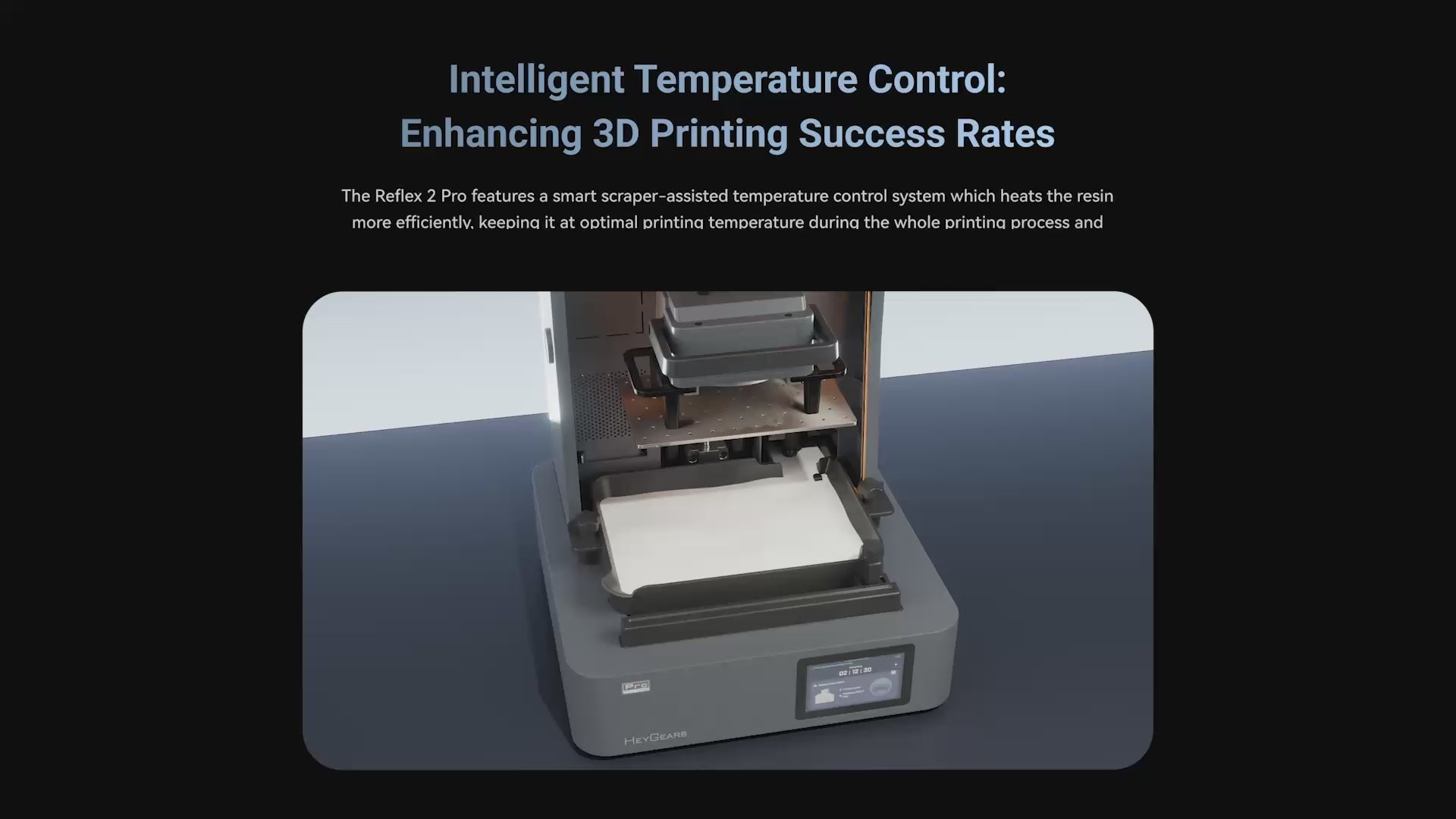

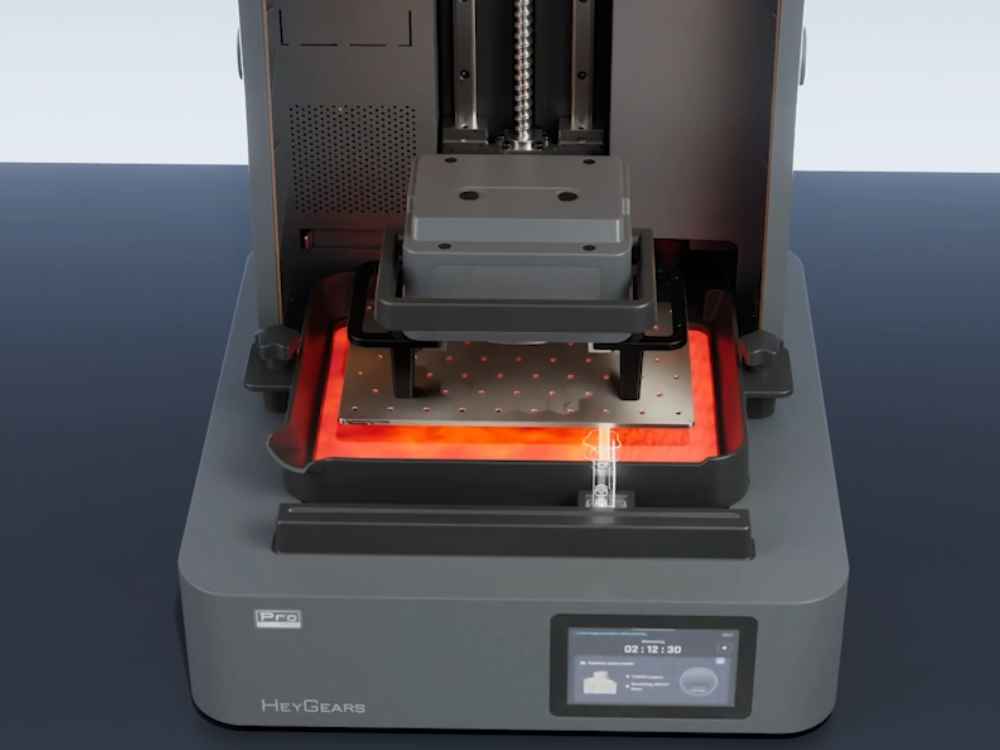

Smart scraper-assisted temperature control system which heats the resin more efficiently
Reflex 2 Pro Specs
| Item | Specification |
|---|---|
| Printing Technology | LCD (MSLA) |
| Build Volume (W*D*H) | 230*144*350 mm³ |
| XY Native Pixel | 40 μm |
| Accuracy | ±20 μm |
| Layer Thickness | 20–250 μm |
| Optical Wavelength | 385+ nm |
| Light Engine Type | 1032 OptiZone Mini-LED Light Engine |
| Light Engine Light Control | 1032 individually controlled LEDs with custom collimating lenses |
| Light Engine Microlens Array | Dual-sided — 480,000 microlenses |
| Light Engine Light Uniformity | ≥94% |
| Screen Type | Amber Screen Pro (10.7 inch) |
| Screen Energy Transmission Rate | 10% (2x conventional LCD screens) |
| Screen Max Curing Light Intensity | 35 W/m² |
| Screen Effective Lifespan | > 6,000 hours |
| Screen Calibration Zones | 86,020 zones (MASK Algorithm) |
| Screen Print Accuracy | ≤0.05 mm |
| Screen Pressure Resistance | 40 kg × 10,000 cycles — no damage |
| Screen Design | Modular — tool-free replacement |
| Z-axis & Motor Z-axis Grade | C5 Grade Z-axis Module |

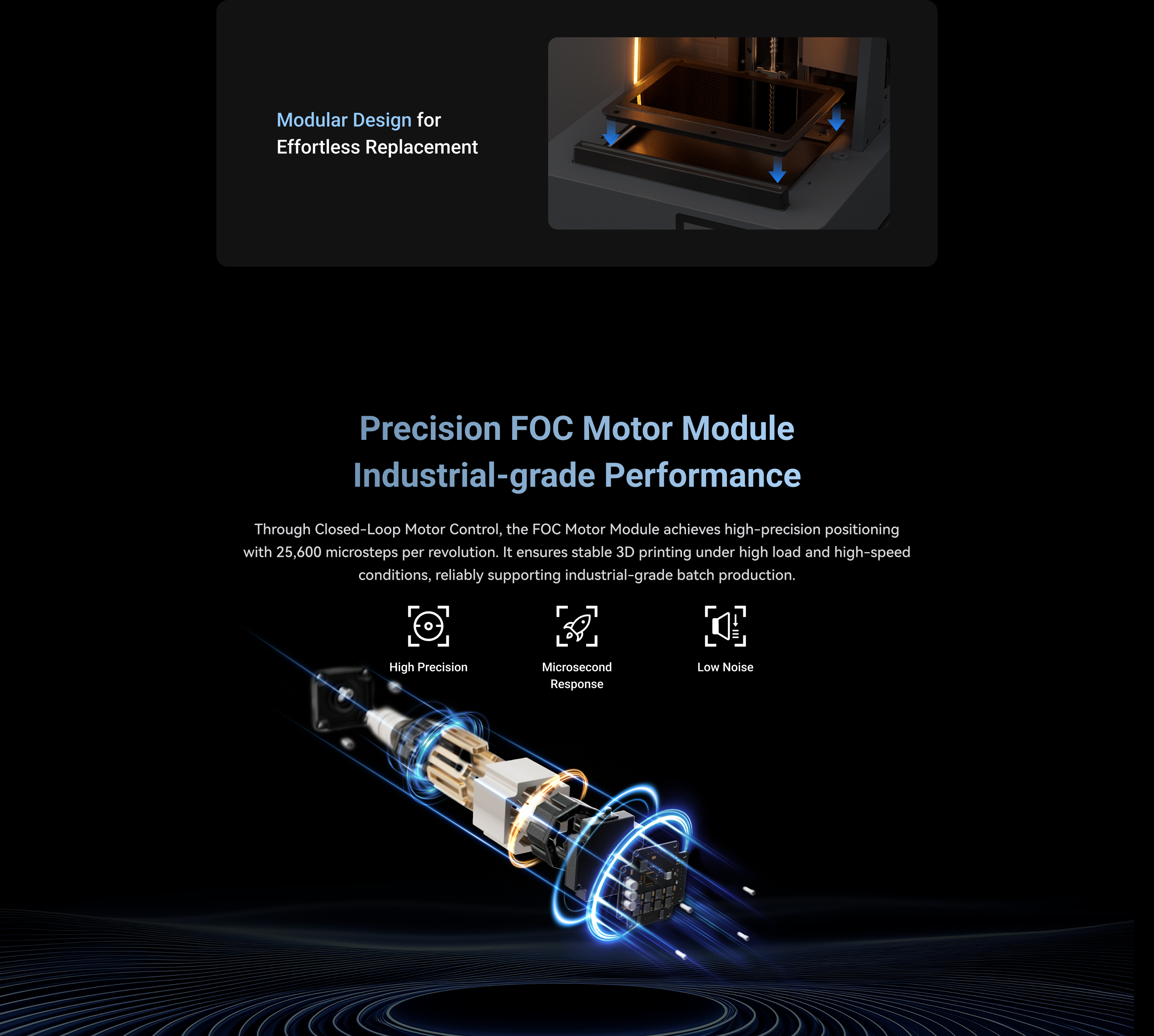

| Z-axis & Motor Motor Type | FOC Closed-Loop Motor (25,600 microsteps/revolution) |
| Z-axis & Motor Repeat Positioning Accuracy | ≤ 2 μm under 80 kg load |
| Frame Base Construction | Die-Cast Unibody |

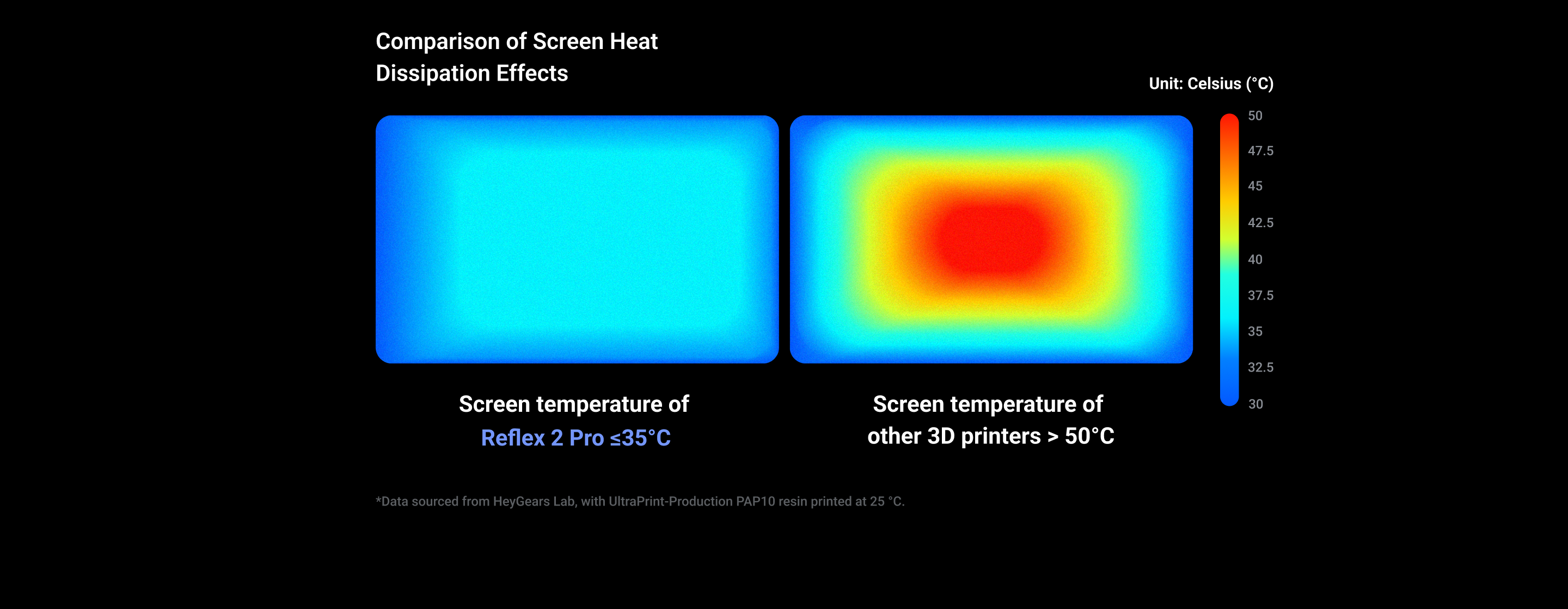

| Frame Thermal Management | Thermal ventilation structure — maintains 31.2°C to 35°C during printing |
| Intelligent Features Auto Leveling | Floating build platform — deviation ≤ 0.15°, gap compensation up to 240 μm |
| Intelligent Features Residue Detection | Force sensor sensitivity 0.01 N — detects residue ≥ 0.15 mm, auto-stop on failure |
| Intelligent Features Resin Refill | Automatic — ultrasonic sensor with ±0.5 mm liquid level accuracy |
| Intelligent Features Temperature Control | In-scraper heater — 10°C to 22°C in 6 min, maintains ±1°C throughout print |
| Physical Dimensions Machine Size (W*D*H) | 430*445*715 mm |
| Physical Dimensions Weight | 29.7 kg |
| Electrical Requirements Rated Power | 750 W |
| Electrical Requirements Input Voltage | 100-240 V~ 50/60 Hz |
| Connectivity Interfaces | USB, Wi-Fi, LAN |
| Software Language Support | English, Simplified Chinese |
