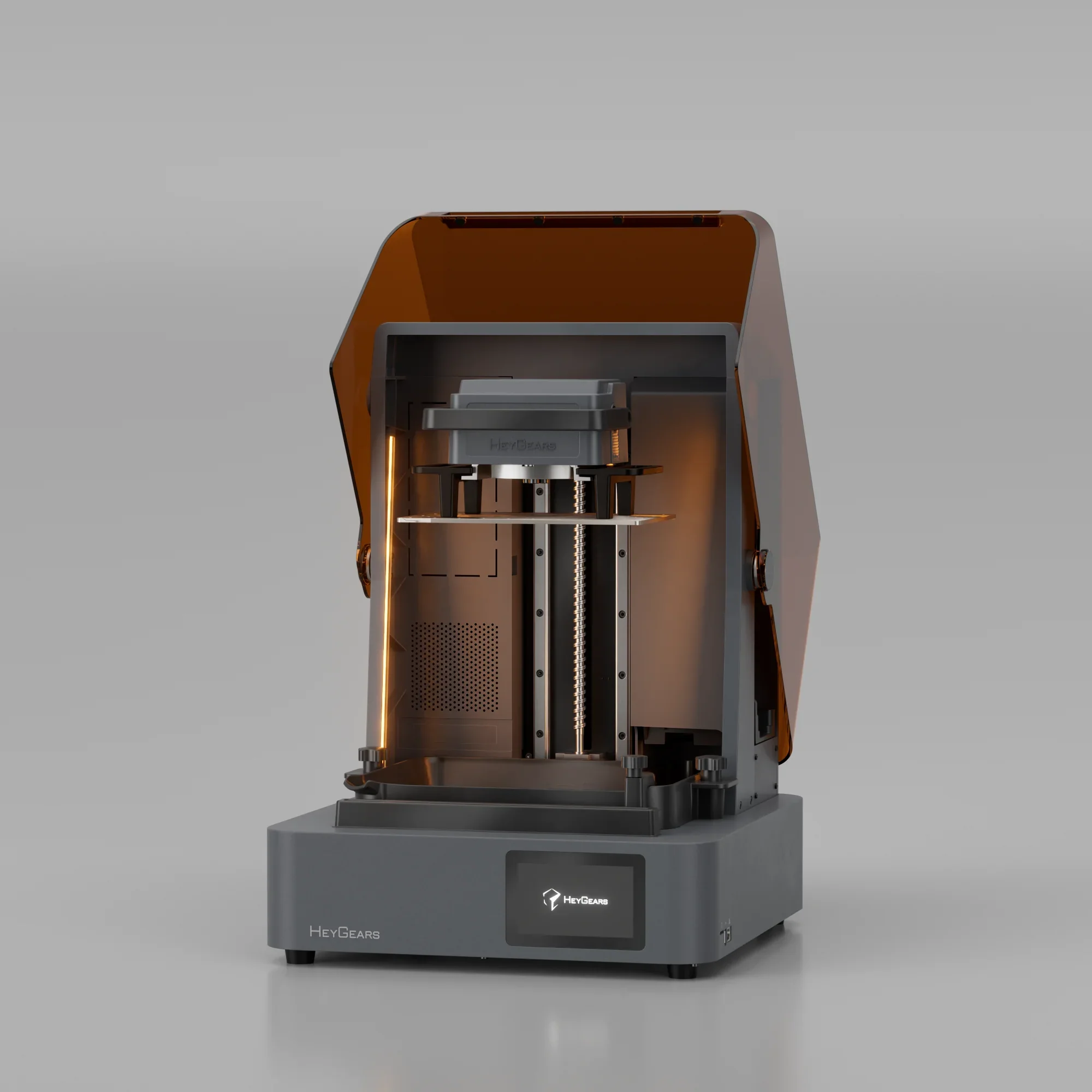

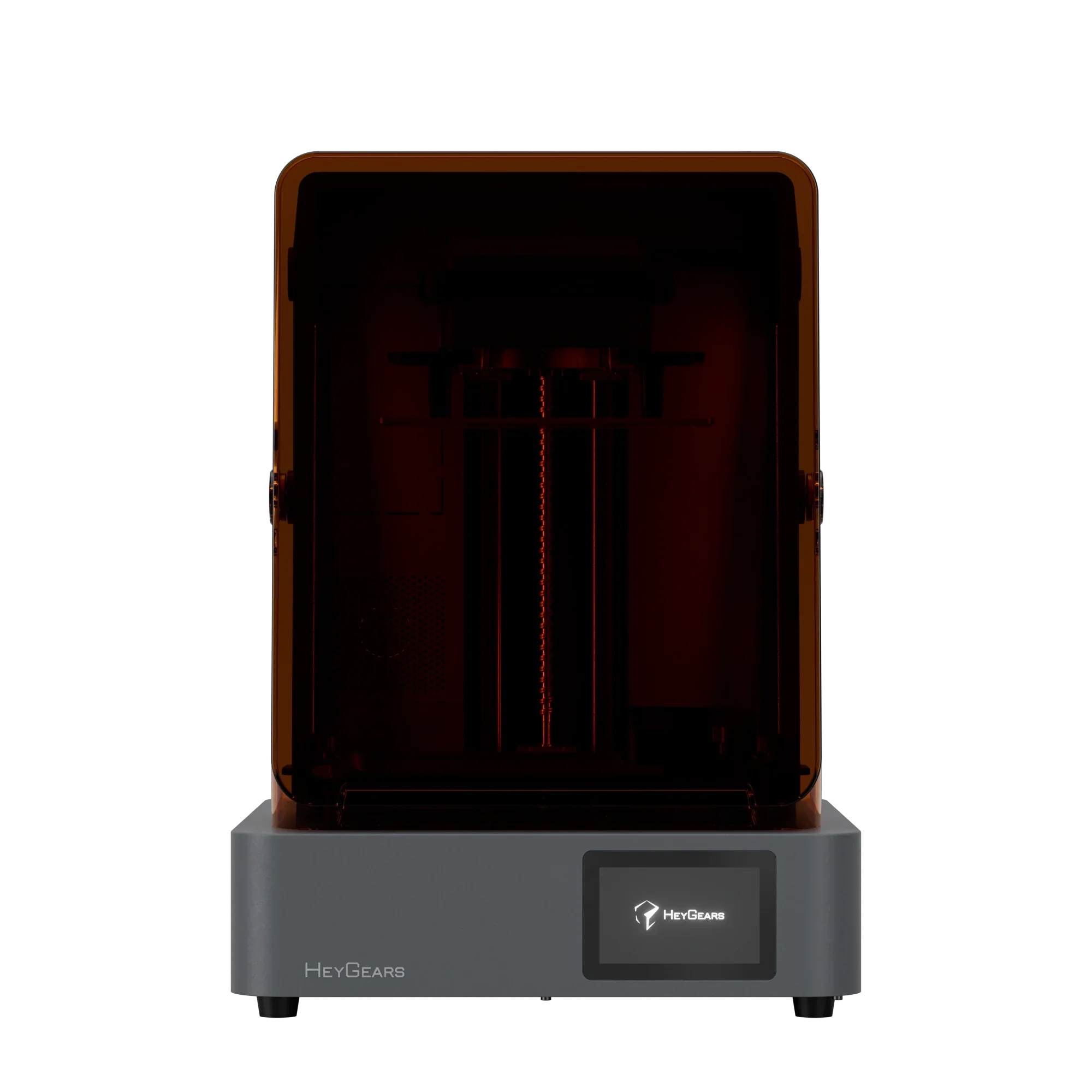

HeyGears Ultracraft Reflex 2
Regular price
Rs. 220,000.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Printer Highlights
- 161 OptiZone Light Engine
- New Amber Screen Pro, over 6000h Lifespan*
- C5 Grade Z-axis Module, ±2 μm repeat positioning accuracy
- 86,000+ Zone Light Calibration
- Die-Cast Unibody Base
- Intelligent Temperature Control**
- Powerful Thermal Dissipation
-
Compatible a with Wider Range of High-performance Resins
Click here to brochure
*With 6,000 hours of printing, it can be used year-round based on an average of 16 hours of daily use.
**Optional upgrade required.
Couldn't load pickup availability
EMI Option Available
EMI payment options are available at payment gateways.
Why Choose HeyGears Ultracraft Reflex 2
161 OptiZone Light Engine - More accurate light control, smoother surface finishes

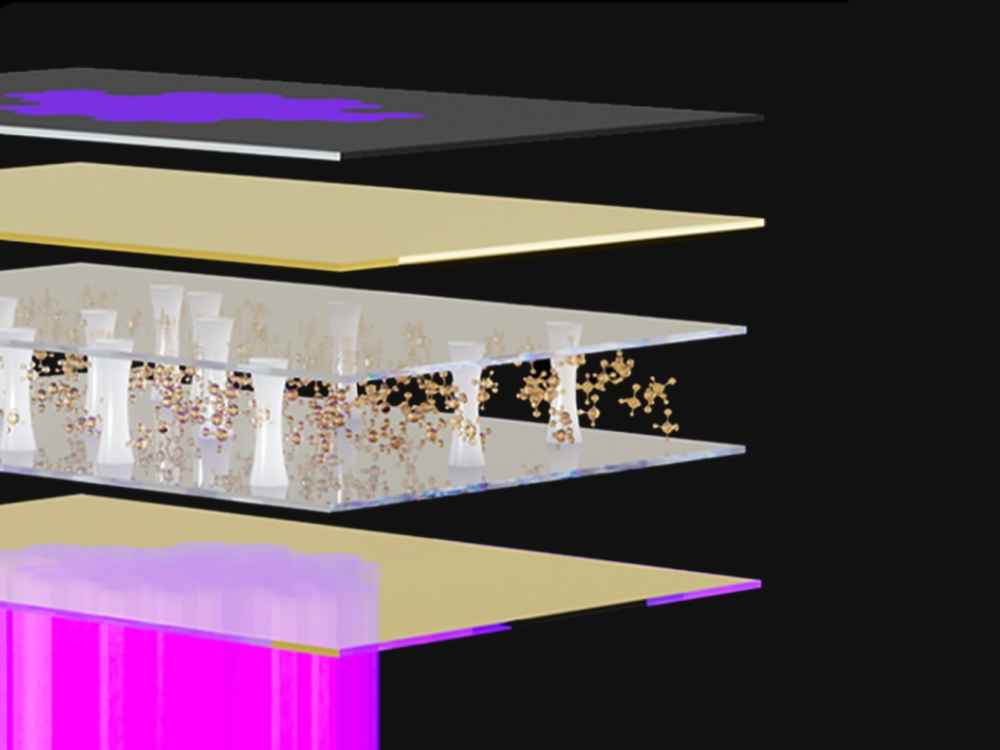

Upgraded Amber Screen Pro. 6,000+ Hour Screen Lifespan - Built to last with 100x more pressure resistance

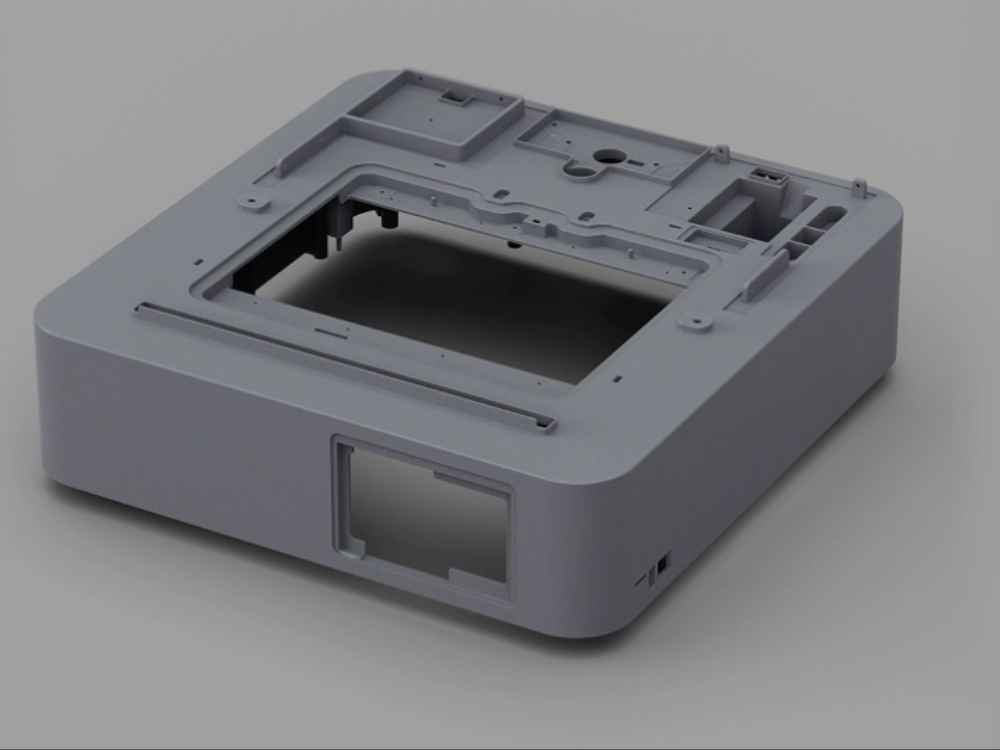

Enhanced 3D Printing Stability with Die-cast Unibody Base

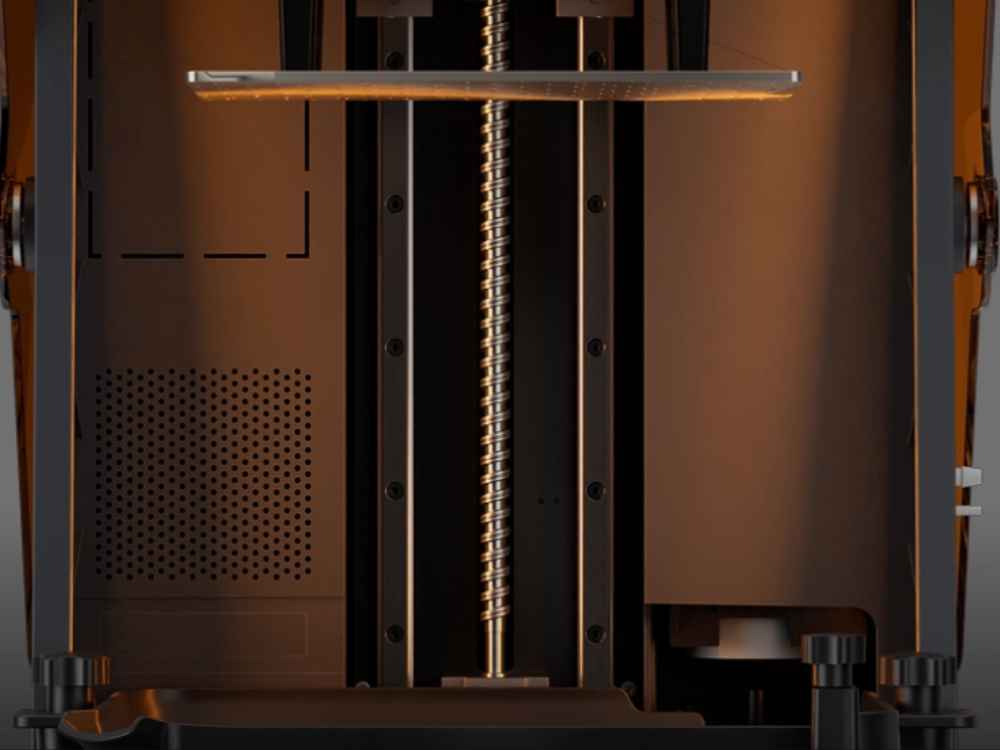

Grade Z-axis Module - Layer positioning errors no greater than 2μm
Intelligent Temperature Control - Resin heated from 10°C to 22°C in just 6 minutes
Powerful Thermal Dissipation - Active cooling keeps accuracy stable across every long run
Reflex 2 Specs
| Item | Specification |
|---|---|
| Printing Technology | LCD (MSLA) |
| Build Volume (W*D*H) | 230*144*230 mm³ |
| XY Native Pixel | 40 μm |
| Accuracy | ±20 μm |
| Layer Thickness | 20–250 μm |
| Optical Wavelength | 385+ nm |
| Light Engine Type | 161 OptiZone Mini-LED Light Engine |
| Light Engine Light Control | Per-LED activation and brightness via PWM |
| Light Engine Light Uniformity | ≥94% |
| Screen Type | Amber Screen Pro (10.7 inch) |
| Screen Effective Lifespan | > 6,000 hours |
| Screen Calibration Zones | 86,020 zones (MASK Algorithm) |
| Screen Pressure Resistance | 40 kg × 10,000 cycles — no damage |
| Screen Design | Modular — tool-free replacement |
| Z-axis Grade | C5 Grade Z-axis Module |
| Z-axis Repeat Positioning Accuracy | ≤ 2 μm |
| Z-axis Load Test | 50 kg × 10,000 runs |
| Frame Base Construction | Die-Cast Unibody |
| Frame Motion Algorithm | Dynamic Motion Algorithm 3.0 (18 adaptive motion control options) |
| Intelligent Features Auto Leveling | Floating build platform — deviation ≤ 0.15°, gap compensation up to 240 μm |
| Intelligent Features Residue Detection | Force sensor sensitivity 0.01 N — detects residue ≥ 0.15 mm, auto-stop on failure |
| Intelligent Features Resin Refill | Automatic — before and during printing |
| Intelligent Features Temperature Control | In-scraper heater — 10°C to 22°C in 6 min, maintains ±1°C throughout print (optional heating scraper) |
| Thermal Management Operating Temperature Range | 31.2°C – 35°C (stable during print) |
| Physical Dimensions Machine Size (W*D*H) | 430*445*605 mm |
| Physical Dimensions Weight | 25.5 kg |
| Electrical Requirements Rated Power | 350 W |
| Electrical Requirements Input Voltage | 100-240 V~ 50/60 Hz |
| Connectivity Interfaces | USB, Wi-Fi, LAN |
| Software Language Support | English, Simplified Chinese |
