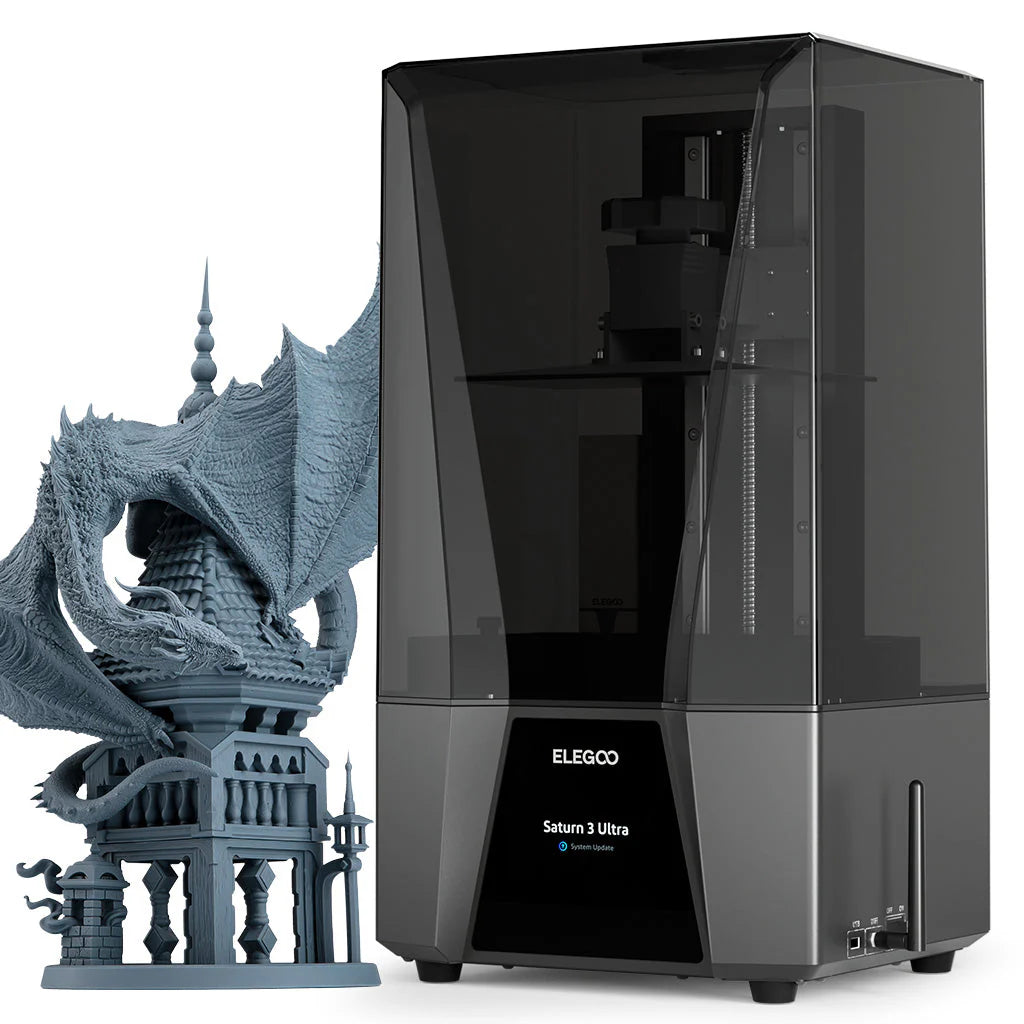

Elegoo Saturn 3 Ultra
Elegoo Saturn 3 Ultra
SKU:3DP_ME_ELG_S3U
- 10-inch 12K Mono LCD
- Linux OS with 4Gb ROM
- XY Resolution of 19×24μm
- Wi-Fi Transfer Speeds of 6-10Mbps
- Build Volume of 218.88×122.88×260 mm³
Share
-
Description
-
Technical Specification
12KPrint Quality
Experience the ultimate printing precision and quality with the ELEGOO Saturn 3 Ultra 3D printer. It features a 10-inch 12K mono LCD with a resolution of 11520x5120 and an XY resolution of 19x24 microns, which allows you to print models with exceptional details and sharp edges.
The printer uses a COB + refractive light source, which reduces light dispersion and provides uniform and consistent light distribution, resulting in high-quality prints with a smooth surface and dimensional accuracy.
Powered by a brand new Linux OS with 4G ROM, which guarantees stable file transfer and faster computing, the Saturn 3 Ultra offers a smooth and efficient printing experience. Supporting Wi-Fi transfer of files, with transfer speeds of 6-10Mbps, the printer is compatible with both 2.4G and 5G networks, providing flexibility in transferring files from your computer or mobile device. And it comes with a detachable antenna, located on the right side of the printer.

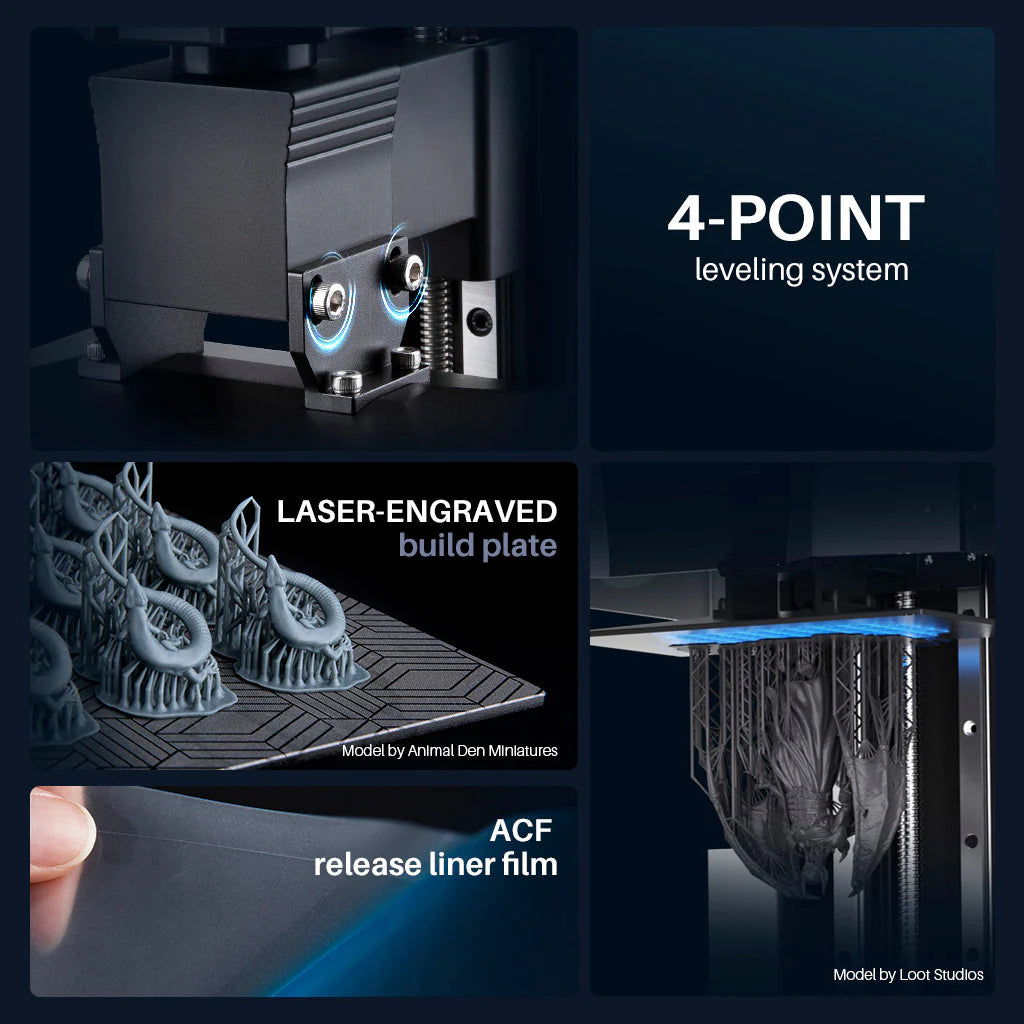

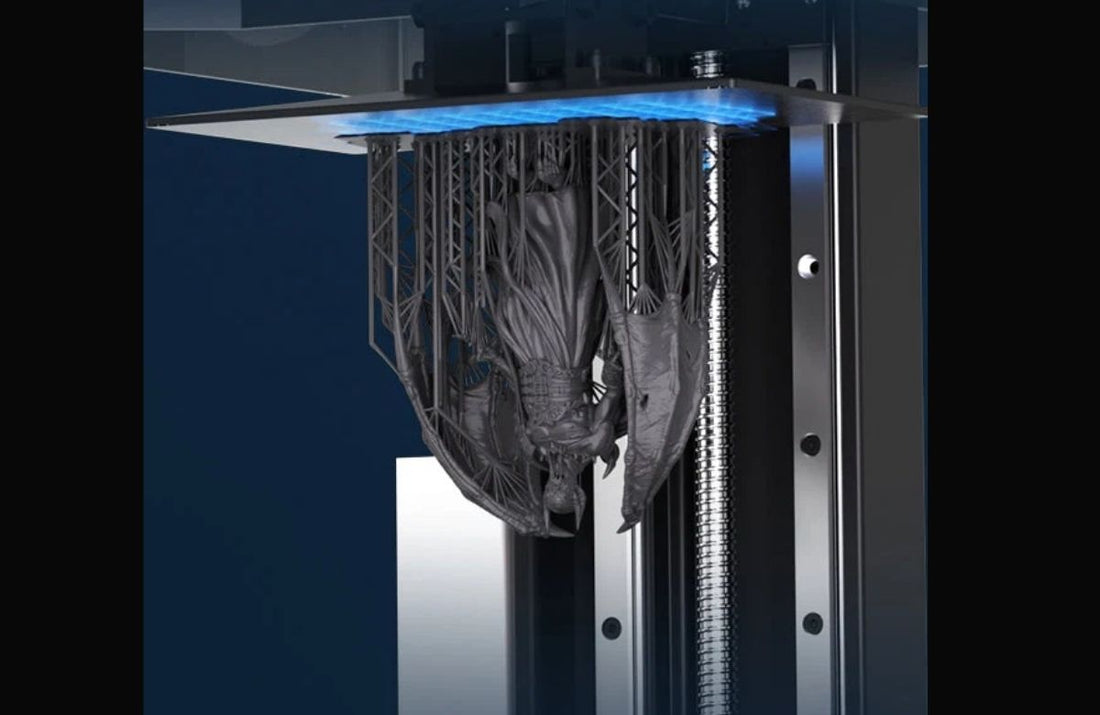

Experience higher printing success rates with the brand new ACF release film, specially designed for the Saturn 3 Ultra. With less release force, one side is frosted (face down), and the other side is smooth, combined with the upcoming ELEGOO RAPID standard resin allows for printing speeds up to 3 times faster, reaching speeds of up to 150mm/H.
Saturn 3 Ultra comes with an all-metal machine body to enhance the printer's robustness and durability, making it capable of withstanding the rigors of frequent use. The printer's sleek and modern design also adds a touch of elegance to your workspace.
LCD
10-inch 12K Mono LCD
System
EL3D-4.0
Slicer Software
Chitubox & Voxeldance Tango & Autodesk Fusion
Technology
MSLA Stereolithography
Layer Thickness
0.01-0.2mm
Printing Speed
MAX 150mm/h
Z Axis Accuracy
0.01mm
XY Resolution
19x24μm(11520x5120)

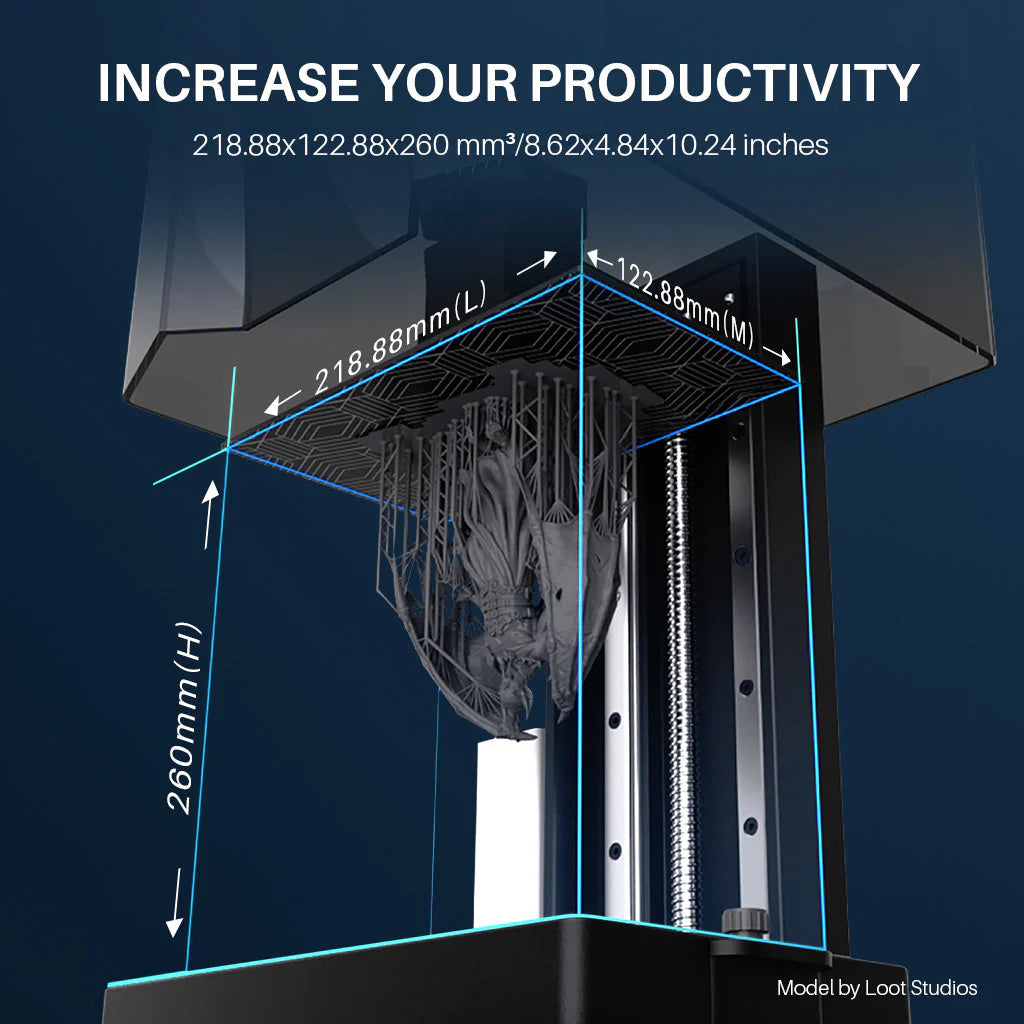

Build Volume
218.88mm(L)*122.88mm(W)*260mm(H)
Light Source
COB+Refractive Light Source (wavelength 405nm)
Languages
Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese
Connectivity
USB Interface & WiFi
NET WEIGHT
12 kg
GROSS WEIGHT
16.2 kg
Operation
4.0-inch Capacitive Touch Screen
Power Requirements
100-240V 50/60Hz 24V 7.5A
Printer Dimensions
305.9mm(L)*273mm(W)*562.5mm(H
