Elegoo

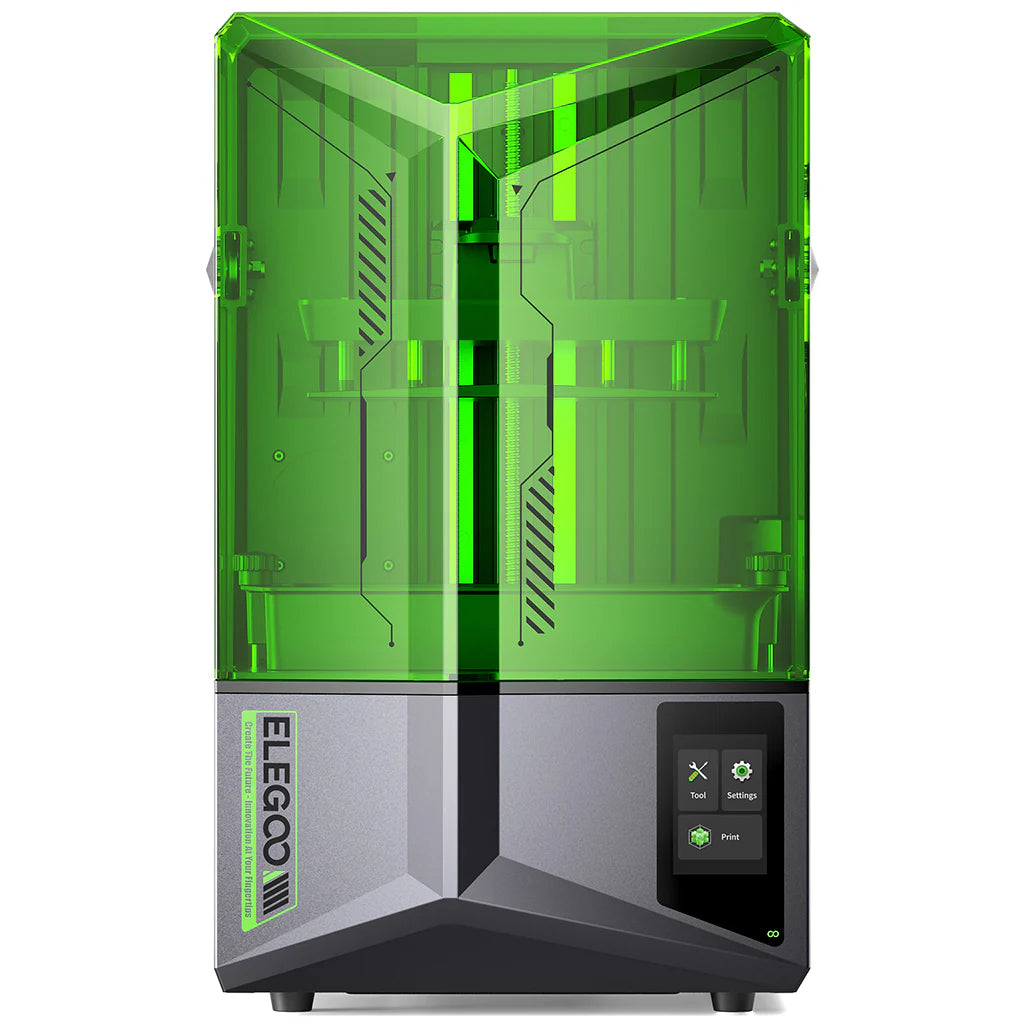

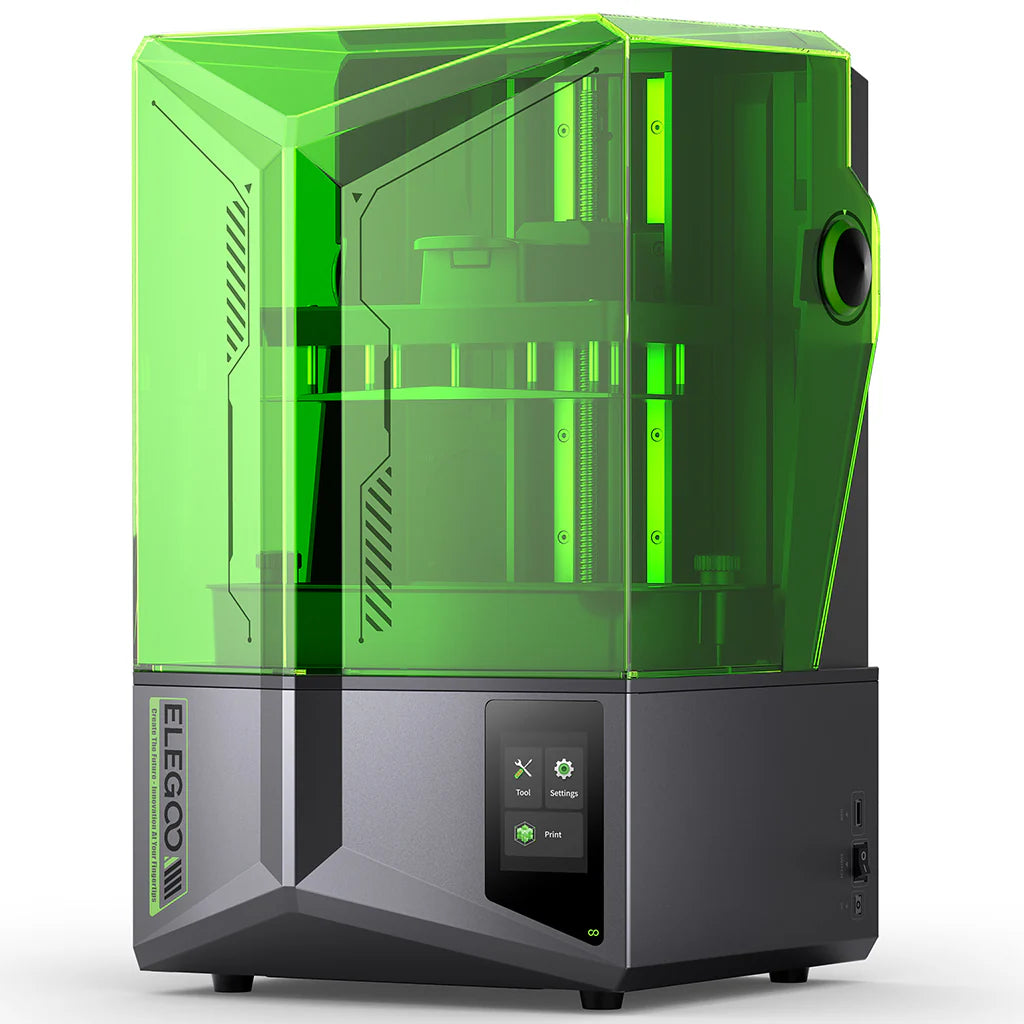

Elegoo Saturn 4

Elegoo Saturn 4

SKU:3DP_ME_ELG_S4

Regular price Rs. 44,999.00
Regular price Rs. 47,000.00 Sale price Rs. 44,999.00
Sale Sold out
Shipping calculated at checkout.
  • 10-inch 12K Mono LCD
  • COB + Fresnel Collimating Lens
  • Auto Leveling & Intelligent Mechanical Sensor
  • User-Friendly Structure & Advanced Cooling System
  • Large Print Size of 218.88x122.88x220 mm
View full details

With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, presenting you exquisite models with stunning clarity and precision.

When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.

With its intelligent self-check and auto-leveling features, the Saturn 4 delivers a worry-free experience. Simply unbox, power on, and print – the printing experience has never been this effortless.

One-Click Self-Check
With one single click, the Saturn 4 will perform a quick self-check to ensure all its components are working properly before your printing starts.

One-Click Automatic Leveling
Thanks to its intelligent mechanical sensor, leveling the build plate has become a breeze every time once you click the button, saving your time and efforts.

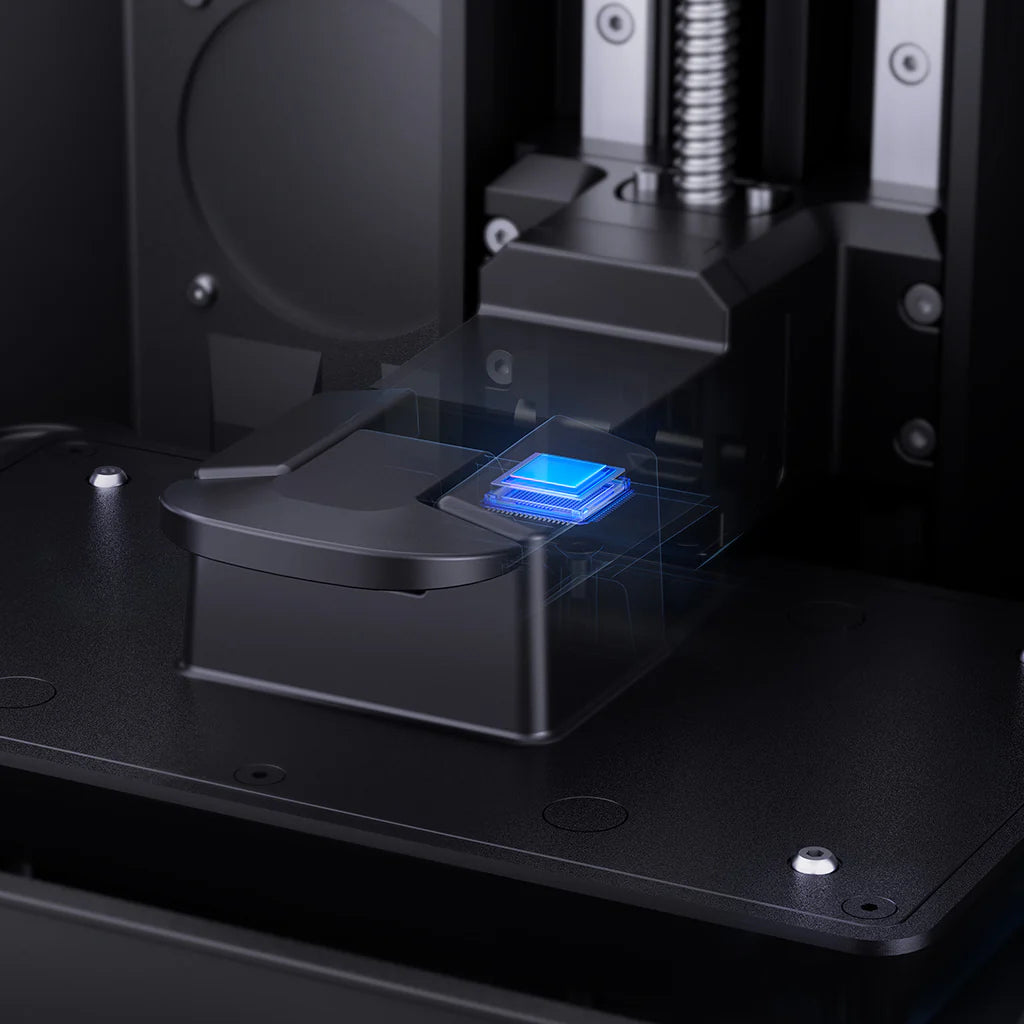

Equipped with a mechanical sensor, the Saturn 4 supports residue detection to prevent damage to the LCD screen, as well as resin shortage and leveling failure alarm to further enhance the safety and reliability during printing.

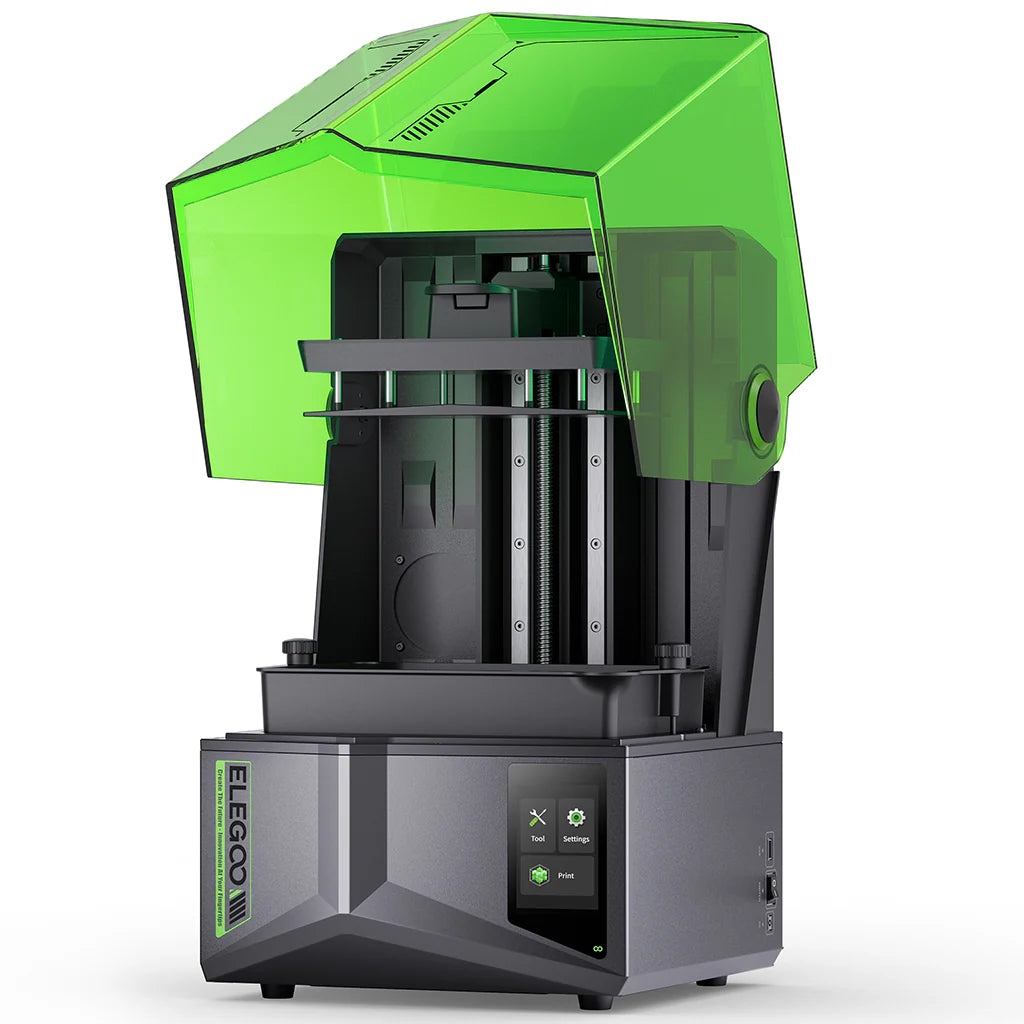

ELEGOO is dedicated to offering users a convenient printing experience. From the quick-release design of the build plate to the dual pour spouts design of the resin tank, along with the drip tray design to prevent resin drips, the replaceable tank lock, and the flip-up cover design for effortless access, every detail has been carefully considered to make your operation easier and more enjoyable.


LCD

10-Inch 12K Mono LCD
System

EL3D-3.0.1
Slicer Software

Voxeldance Tango & ChituBox & Autodesk Fusion
Technology

MSLA Stereolithography
Layer Thickness

0.01-0.2mm
Printing Speed

MAX 70mm/h
Z Axis Accuracy

0.02mm
XY Resolution

19*24um (11520*5120)
Build Volume

218.88mm(L)*122.88mm(W)*220mm(H)
Light Source

COB Light Source + Fresnel Collimating Lens
(wavelength 405nm)
Languages

Chinese, English
Connectivity

USB Interface
Net Weight

13.5kg
Gross Weight

18.3 kg

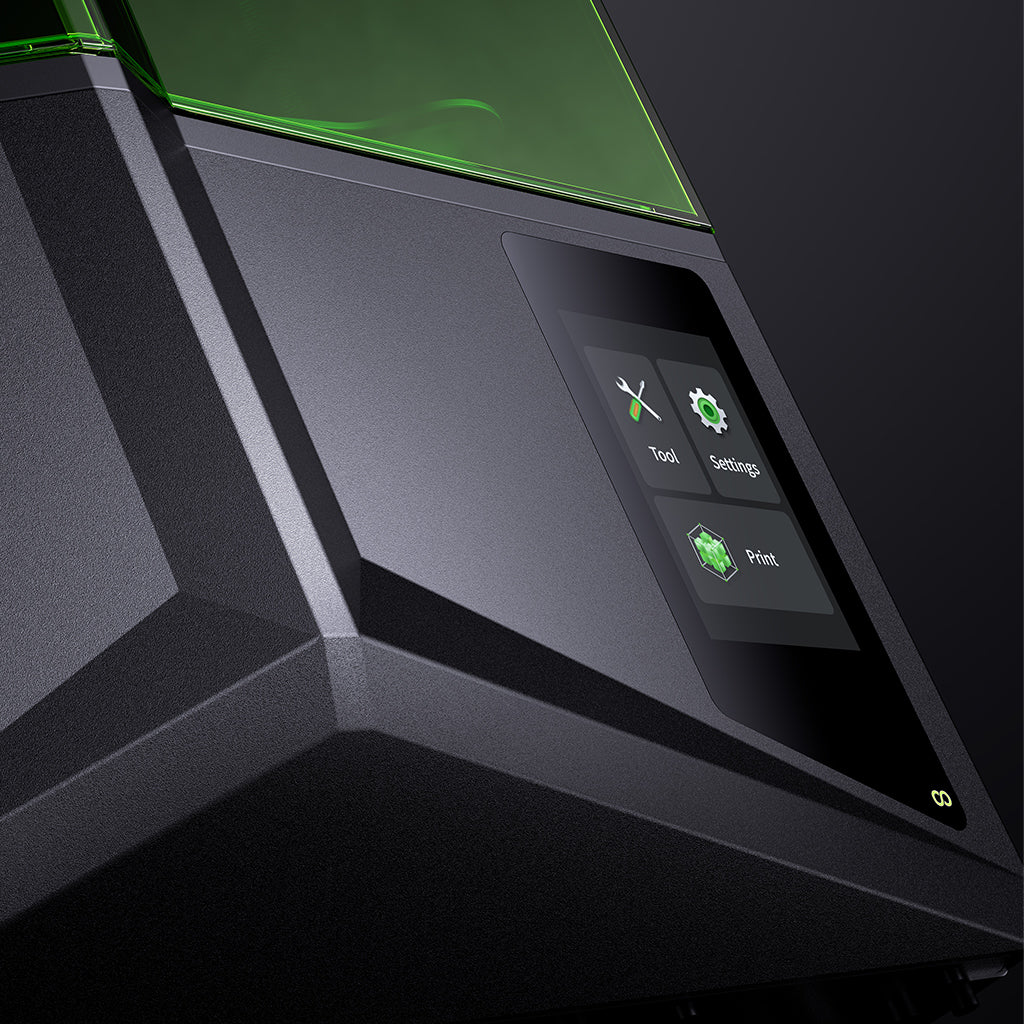

Operation

3.5-inch Resistive Touch Screen
Power Requirements

100-240V 50/60 Hz 24V 6A
Printer Dimensions

327.4mm(L)*329.2mm(W)*548mm(H)
