Bambu Lab H2D 3D Printer - ( PRE ORDER )
Bambu Lab H2D 3D Printer - ( PRE ORDER )
SKU:3DP_ME_BBL_H2D
Couldn't load pickup availability
Dual-nozzle multi-material 3D Printing
Optional 10W/40W Laser and Cutting Module
350*320*325 mm³ Print Volume
5μm Resolution Optical Motion Calibration
Closed-loop Servo Extruder

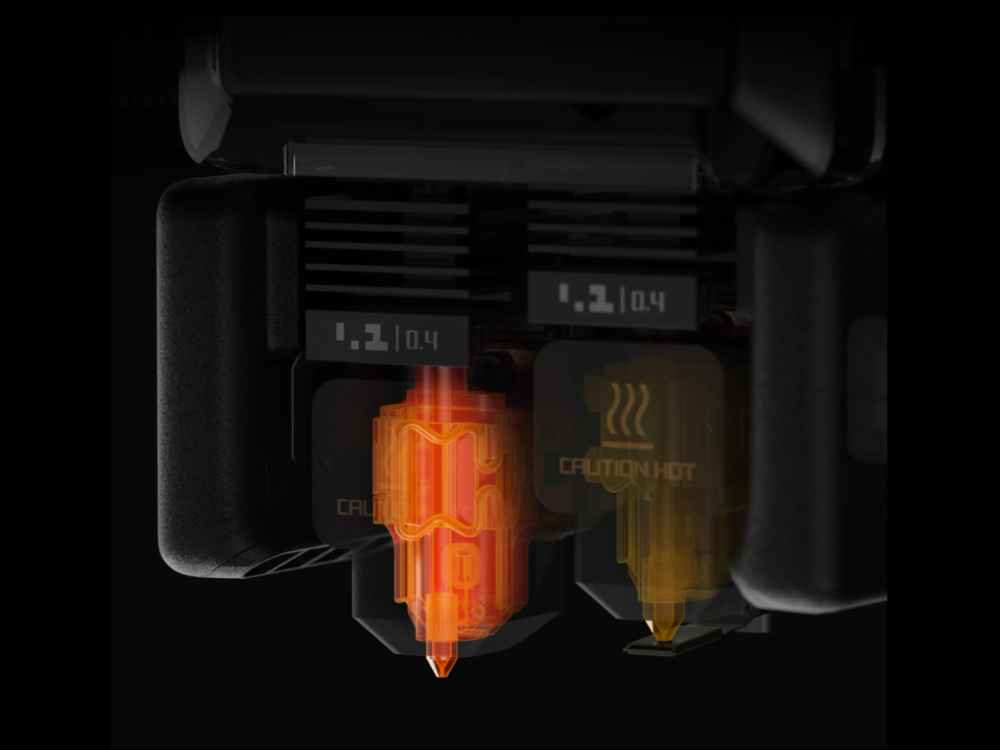

350°C Nozzle & 65°C Active Chamber Heating
Voltage Range: 100-120 V
Share
-
Description
-
Technical Specification

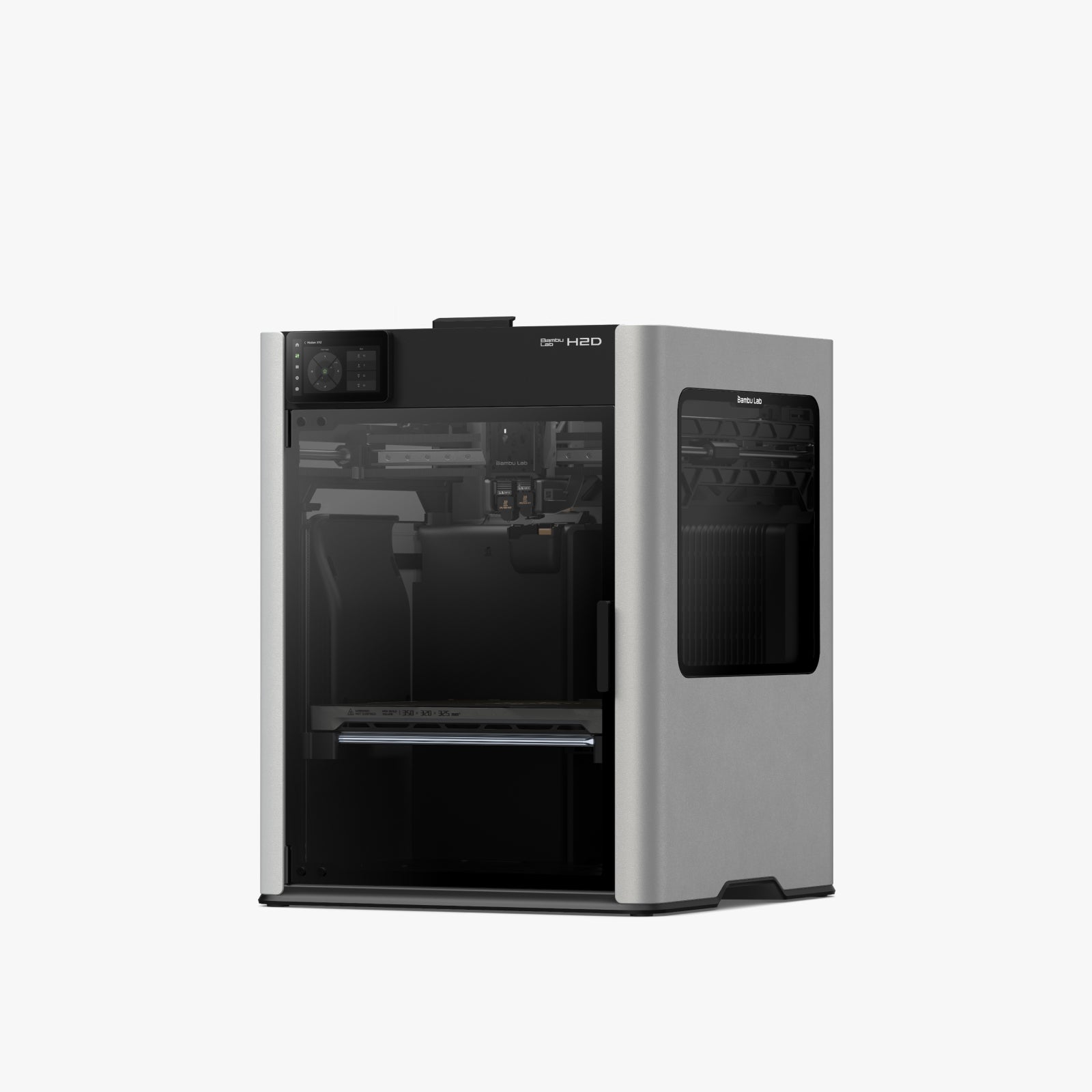

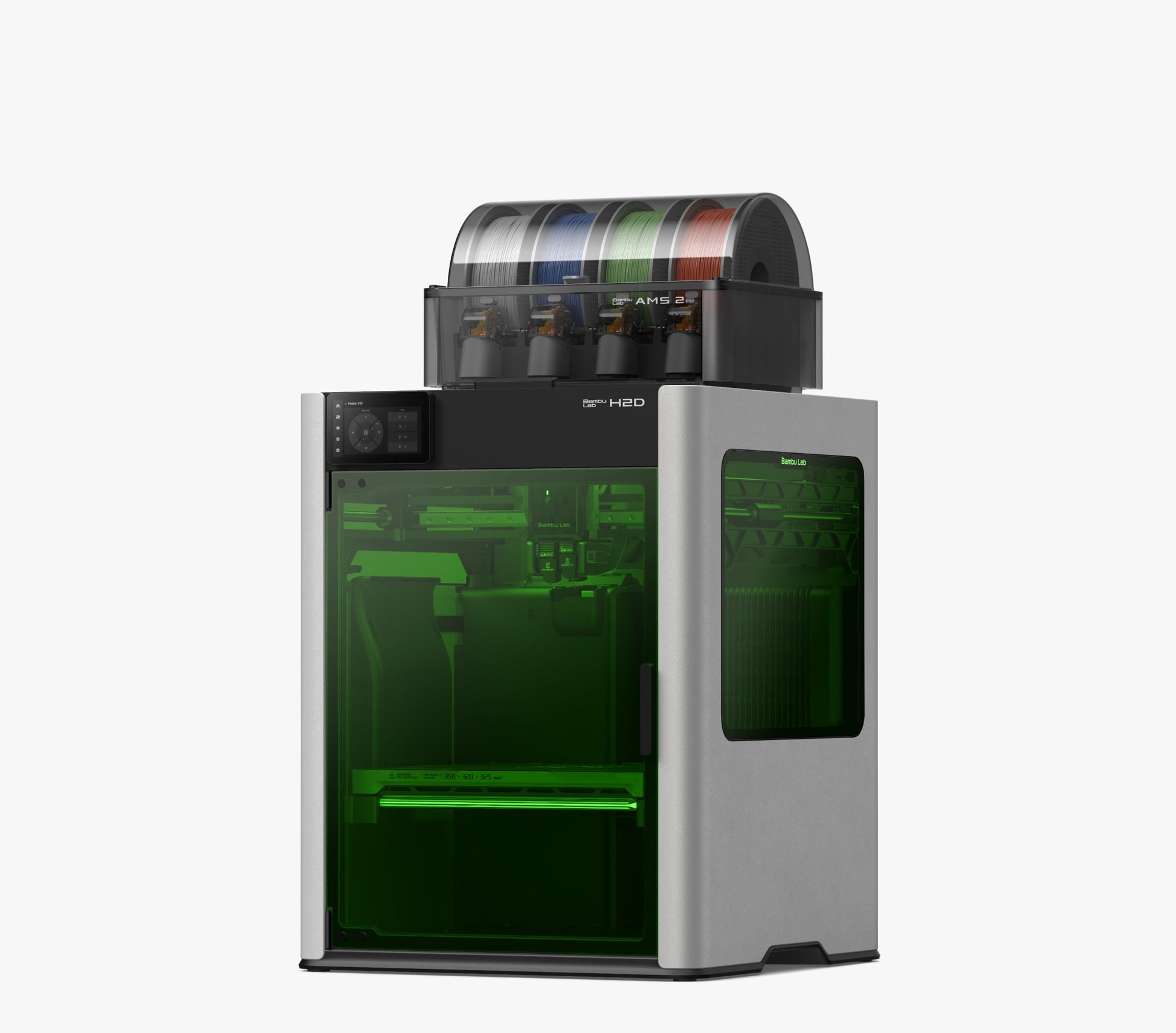

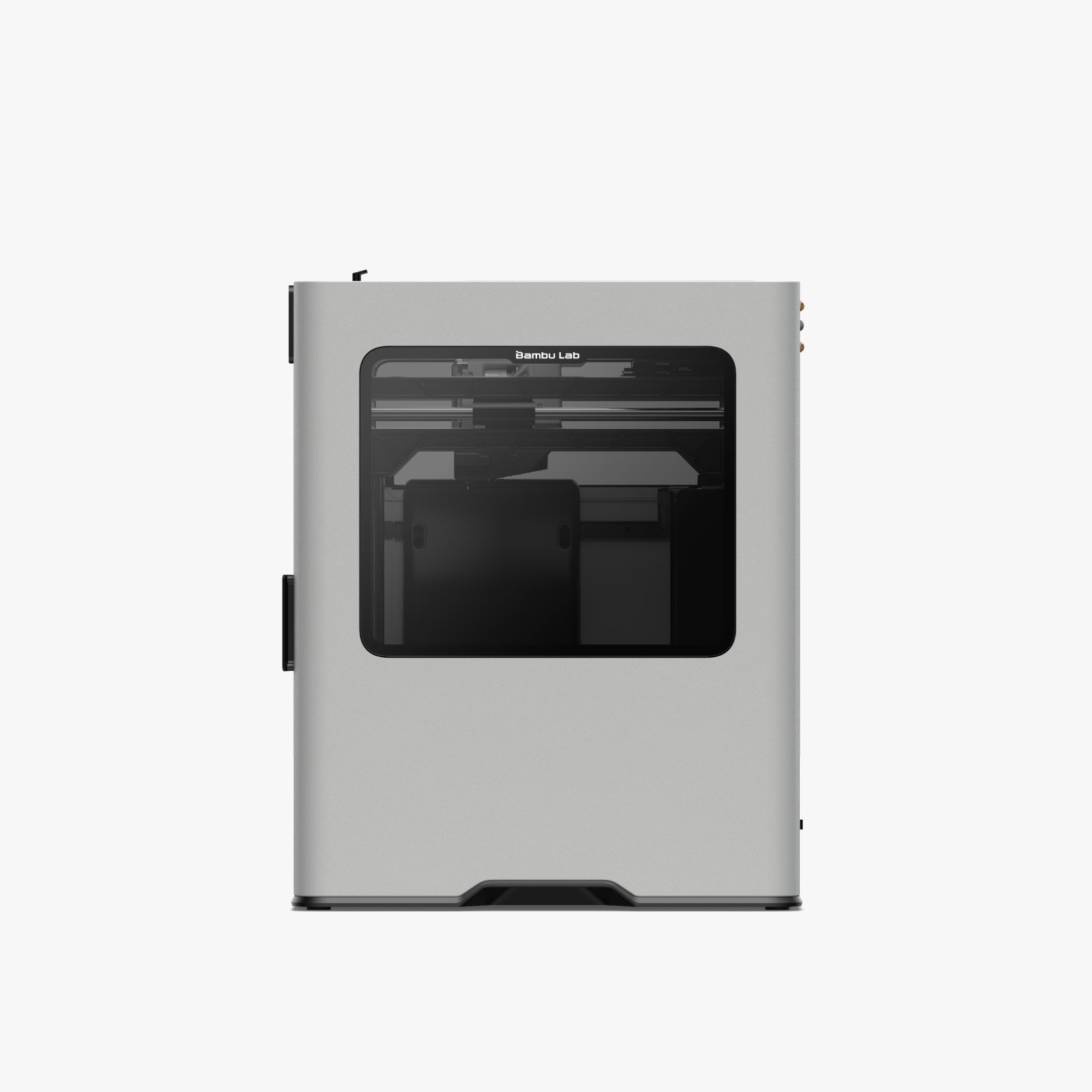

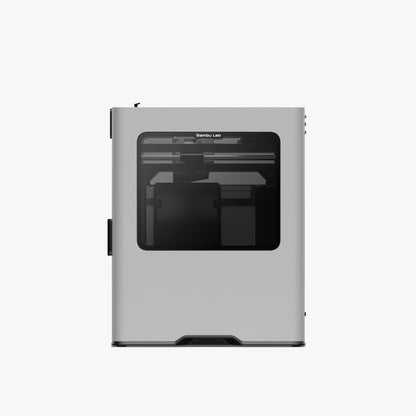

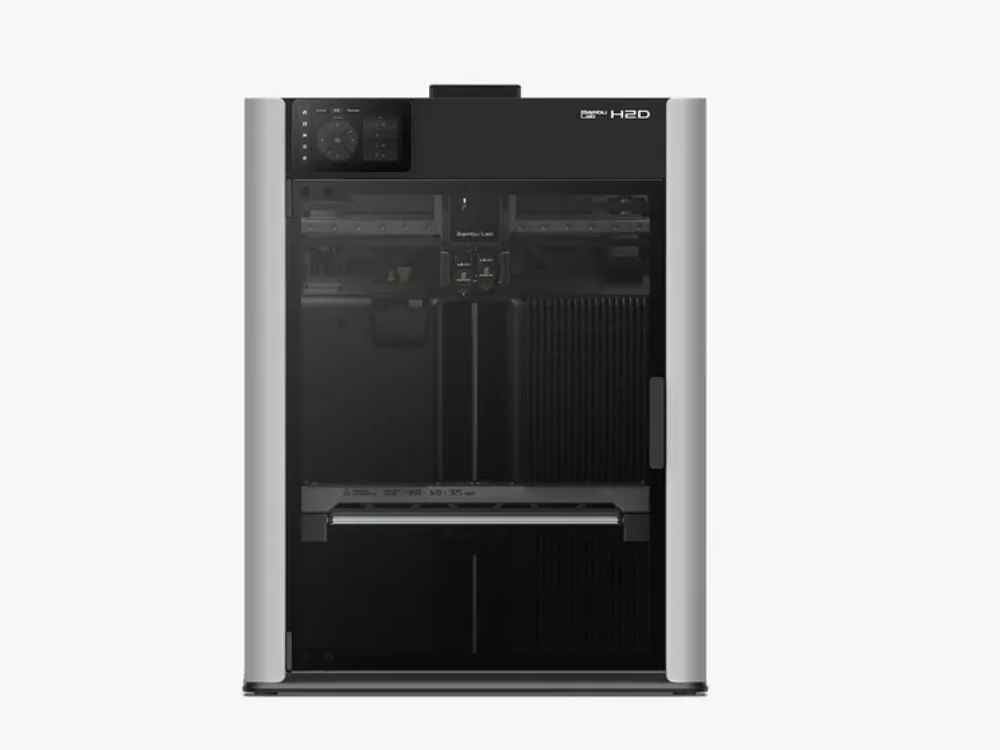

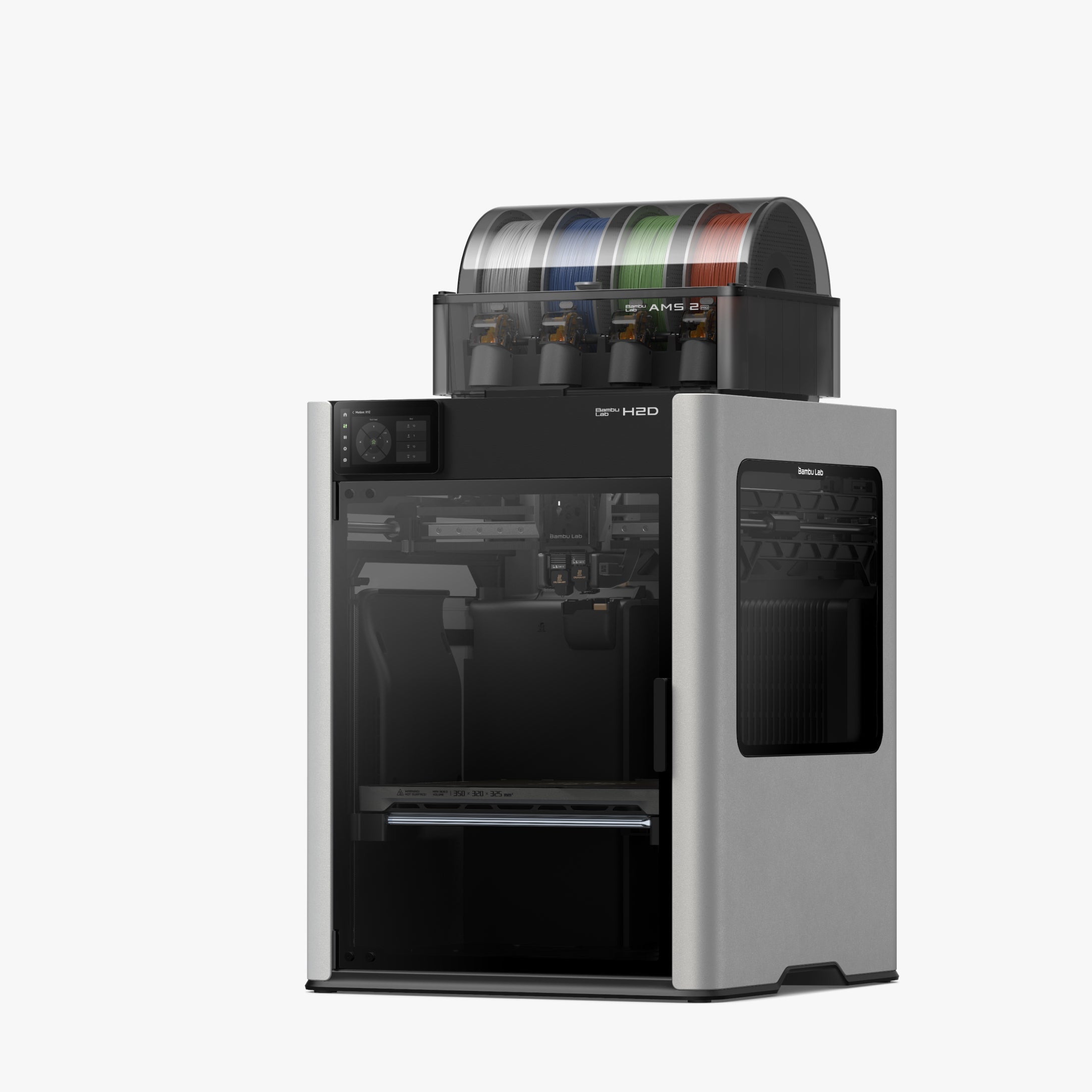

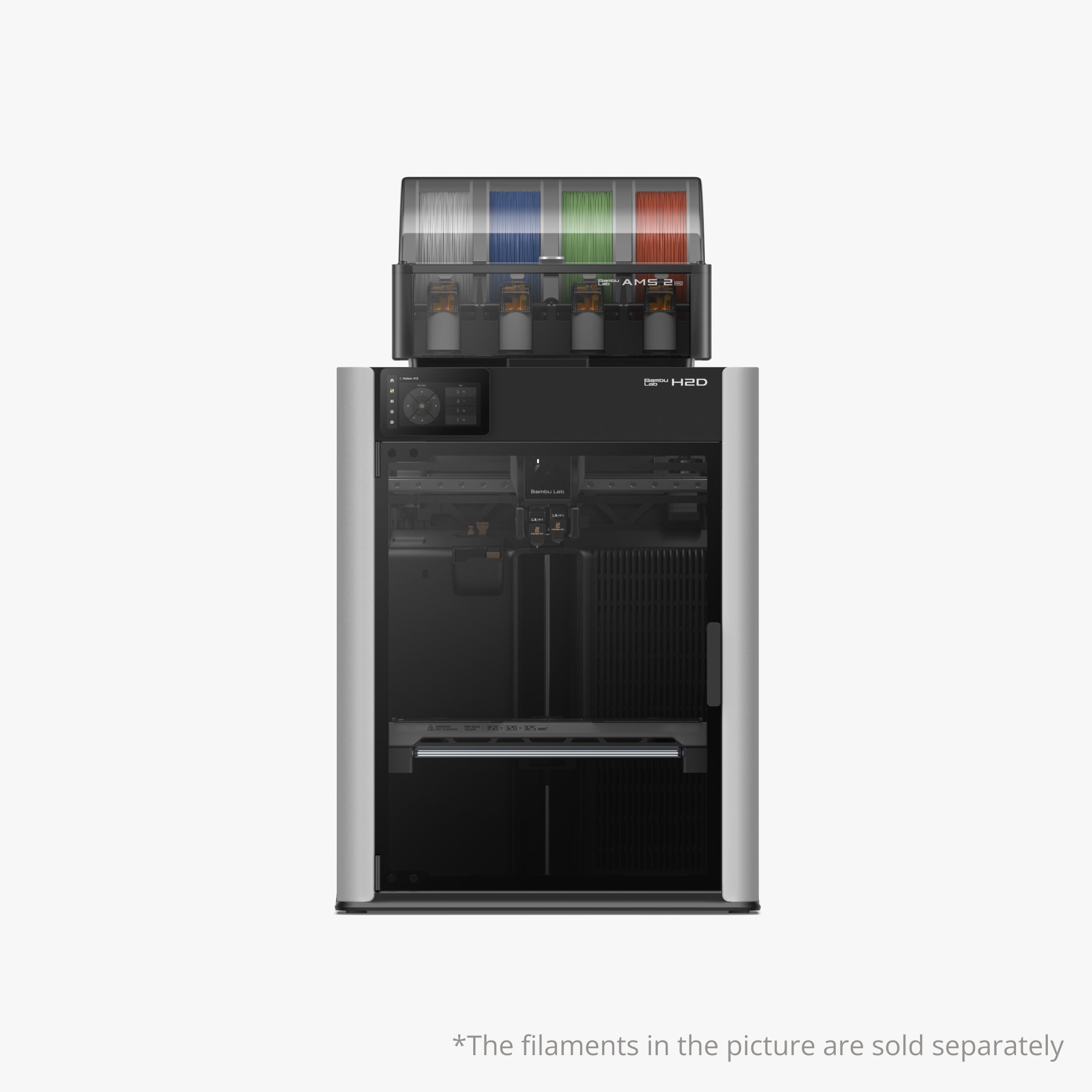

The Bambu Lab H2D is a multifunction 3D printer offering dual-nozzle printing, optional laser engraving/cutting, and a 350x320x325 mm³ print volume. It features a closed-loop servo extruder and a 5μm resolution optical motion calibration system for precise printing. The H2D also includes an AI-backed nozzle camera for real-time monitoring of the print process, as well as active chamber heating and a high-temperature hotend.
Key Features:

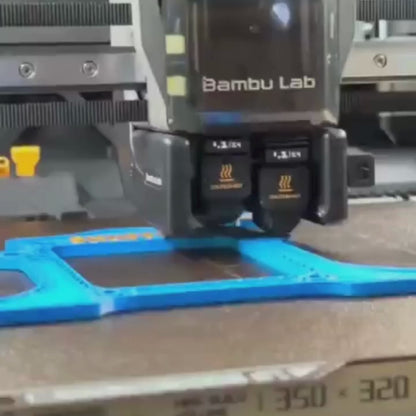

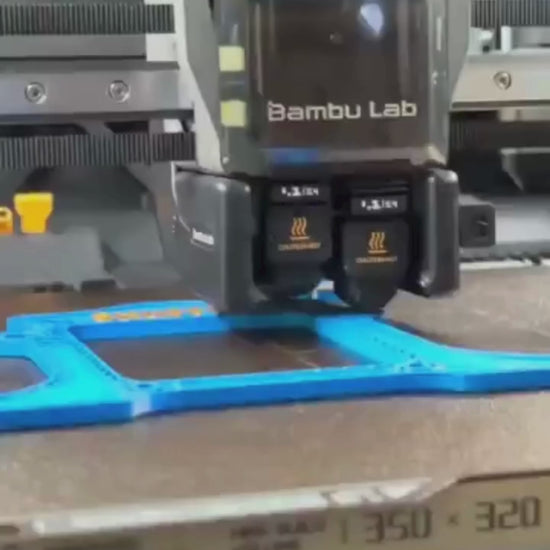

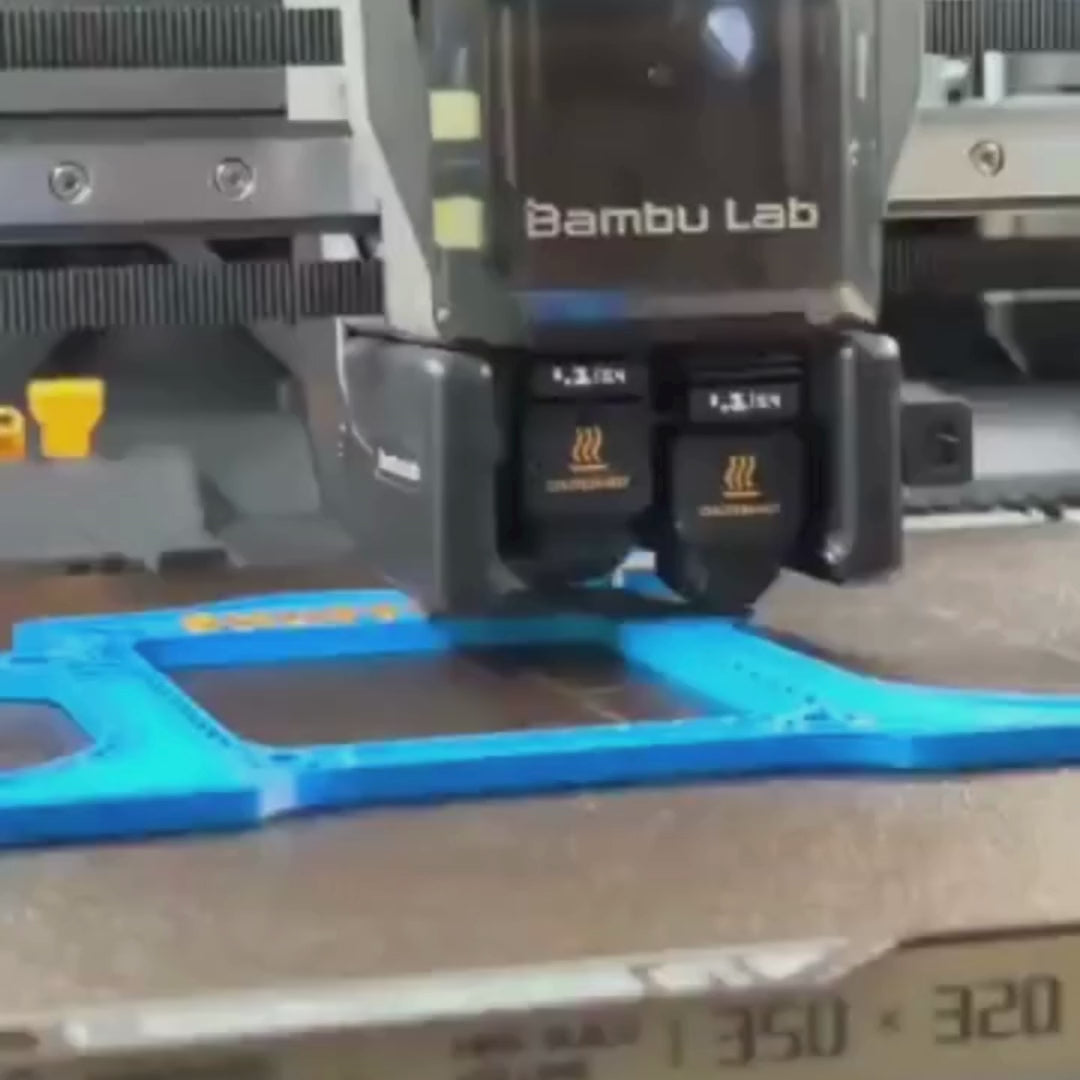

Dual-Nozzle Printing: Supports multi-material and multi-color prints using two nozzles.
Optional Laser Engraving/Cutting: Can be upgraded with 10W or 40W laser modules for additional capabilities.

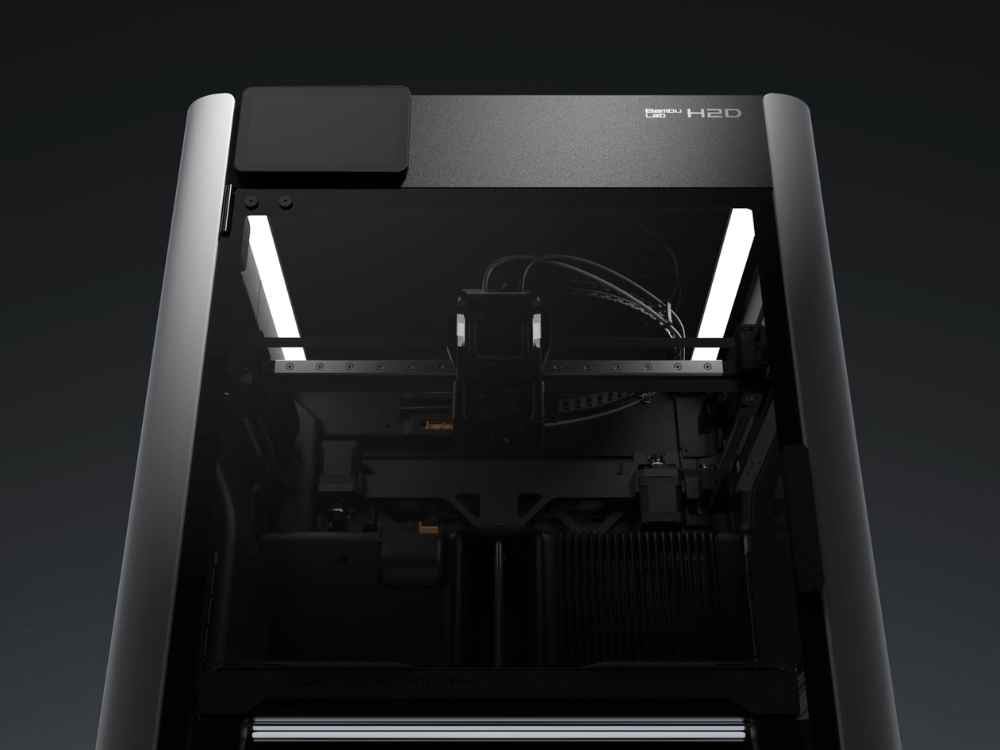

Large Print Volume: Offers a 350x320x325 mm³ build volume.
Advanced Motion System: Uses a Core-XY architecture for faster and more precise movements.
Closed-Loop Servo Extruder: Ensures accurate filament flow and pressure control.

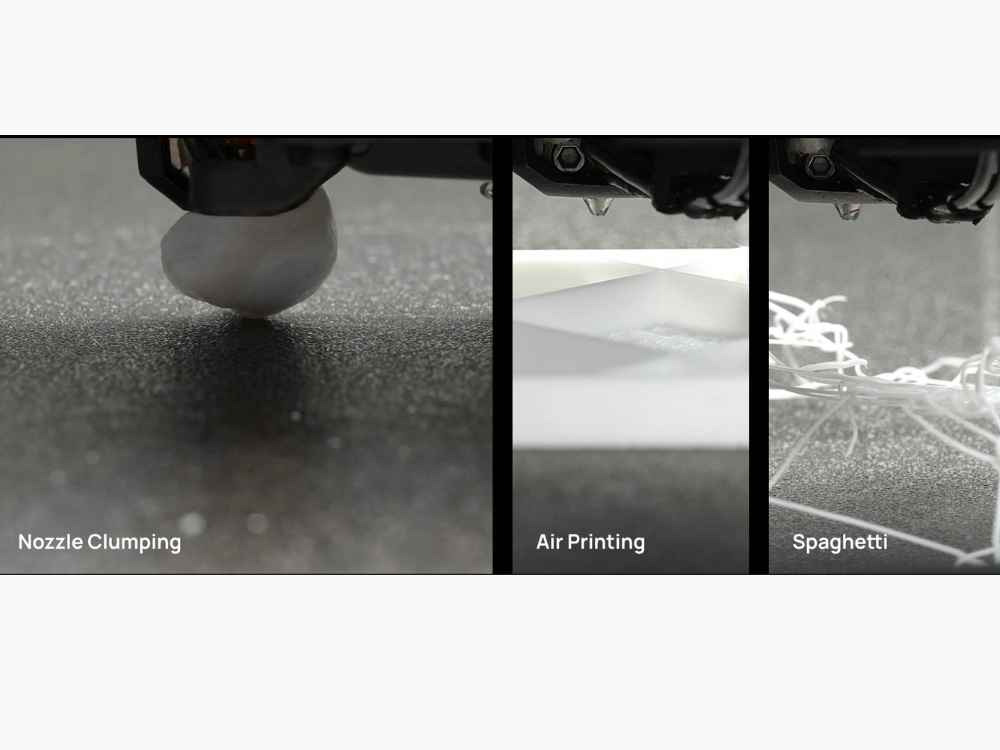

AI-Backed Nozzle Camera: Continuously monitors the printing process for issues like material accumulation and extrusion failures.
Active Chamber Heating: Provides a stable temperature environment for specific materials.
High-Temperature Hotend: Supports a wide range of filaments, including high-temperature options.
5μm Resolution Optical Motion Calibration: Ensures highly accurate print geometry.
Safety Features: Includes flame-retardant chamber, flame sensors, and an optional CO2 fire extinguisher system.
Bambu Lab H2D - Technical Specifications
Printing Technology
Fused Deposition Modeling
Body
Build Volume (W*D*H)
Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell
Aluminum, Steel, Plastic and Glass
Laser Safety Windows

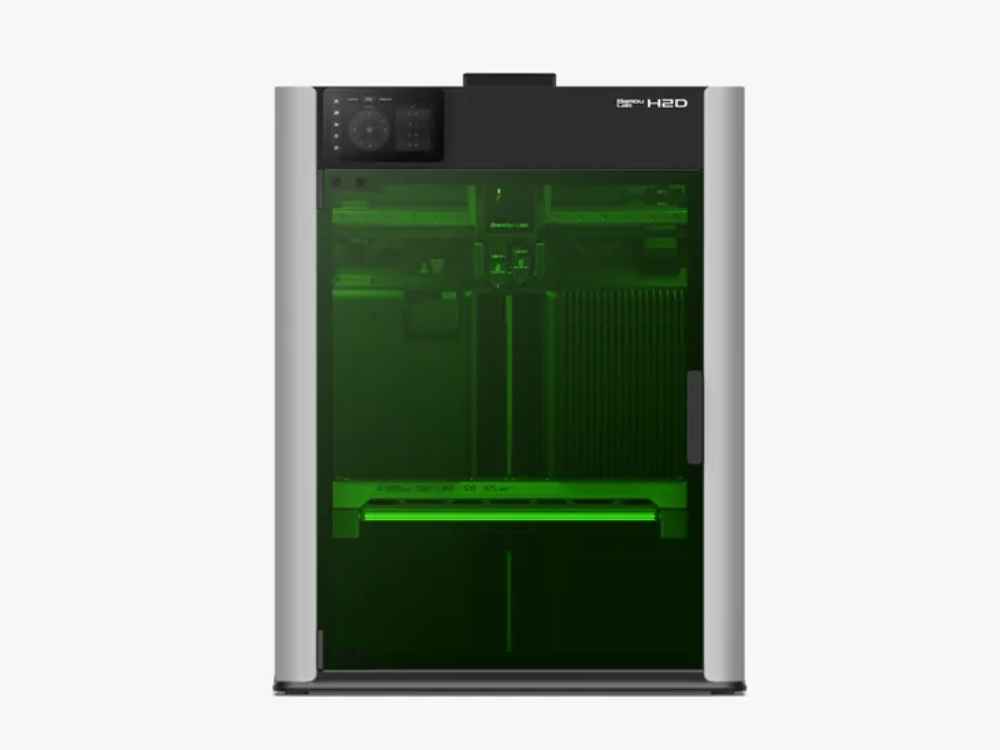

Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Air Assist Pump
Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions
Physical Dimensions
492*514*626 mm³
Net Weight
31 kg
Toolhead
Hotend
All Metal
Extruder Gear
Hardened Steel
Nozzle
Hardened Steel
Max Nozzle Temperature
350 °C
Included Nozzle Diameter
0.4 mm
Supported Nozzle Diameter
0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter
1.75 mm
Extruder Motor
Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Supported Build Plate Type

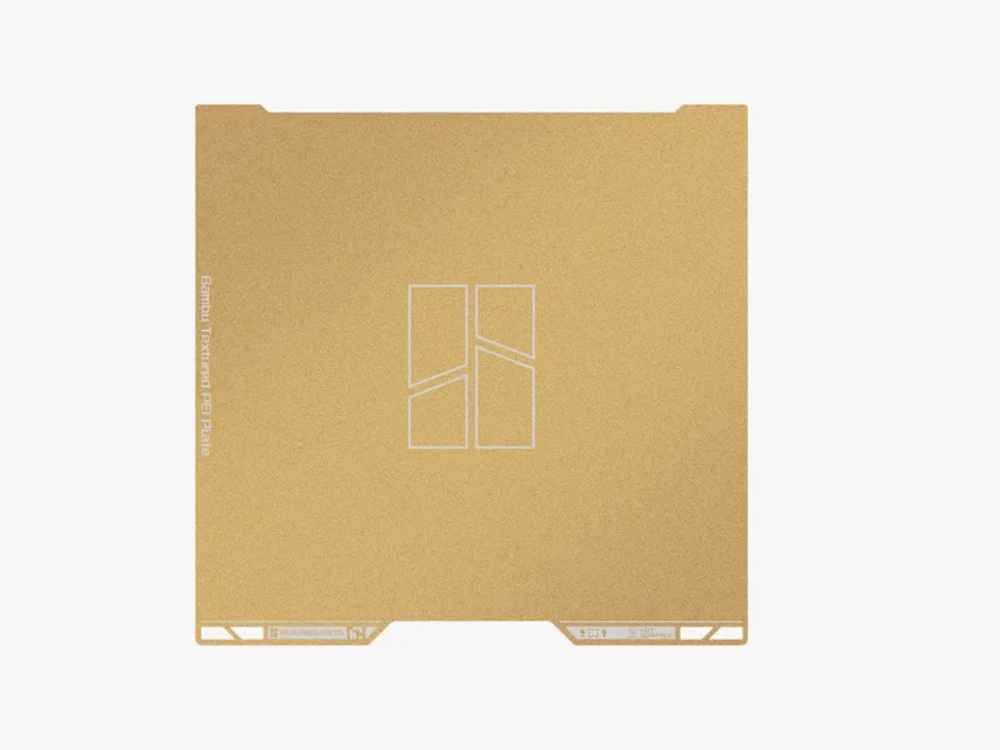

Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature
120 ℃
Speed
Max Speed of Toolhead
1000 mm/s
Max Acceleration of Toolhead
20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend)
40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)
65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control
Active Chamber Heating
Supported
Max Temperature
65 °C
Air Purification
Pre-filter Grade
G3
HEPA Filter Grade
H12
Activated Carbon Filter Type
Granulated Coconut Shell
Cooling
Part Cooling Fan
Closed Loop Control
Auxiliary Part Cooling Fan
Closed Loop Control
Chamber Heat Circulation Fan
Closed Loop Control
Cooling Fan for Hotend
Closed Loop Control
Main Control Board Fan
Closed Loop Control
Chamber Exhaust Fan
Closed Loop Control
Supported Filament Type
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
Supported
Sensor
Live View Camera
Built-in; 1920*1080
Nozzle Camera
Built-in; 1920*1080
BirdsEye Camera
Built-in; 3264*2448 （Equipped with Laser Edition)
Toolhead Camera
Built-in; 1920*1080
Door Sensor
Supported
Filament Run Out Sensor
Supported
Filament Tangle Sensor
Supported
Filament Odometry
Supported with AMS
Power Loss Recovery
Supported
Electrical Requirements
Voltage
100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power*
2200 W@220 V / 1320 W@110 V
Please purchase the version corresponding to your region's voltage.
Working Temperature
10 °C–30 °C
Electronics
Touchscreen
5-inch 720*1280 Touchscreen
Storage
Built-in 8 GB EMMC and USB Port
Control Interface
Touchscreen, mobile App, PC App
Neural Processing Unit
2 TOPS
Software
Slicer & Software
Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System
MacOS, Windows
Wi-Fi
Operating Frequency
2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz, 5150-5850 MHz (SRRC)
Wi-Fi Transmitter Power (EIRP)
2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol
IEEE 802.11 a/b/g/n

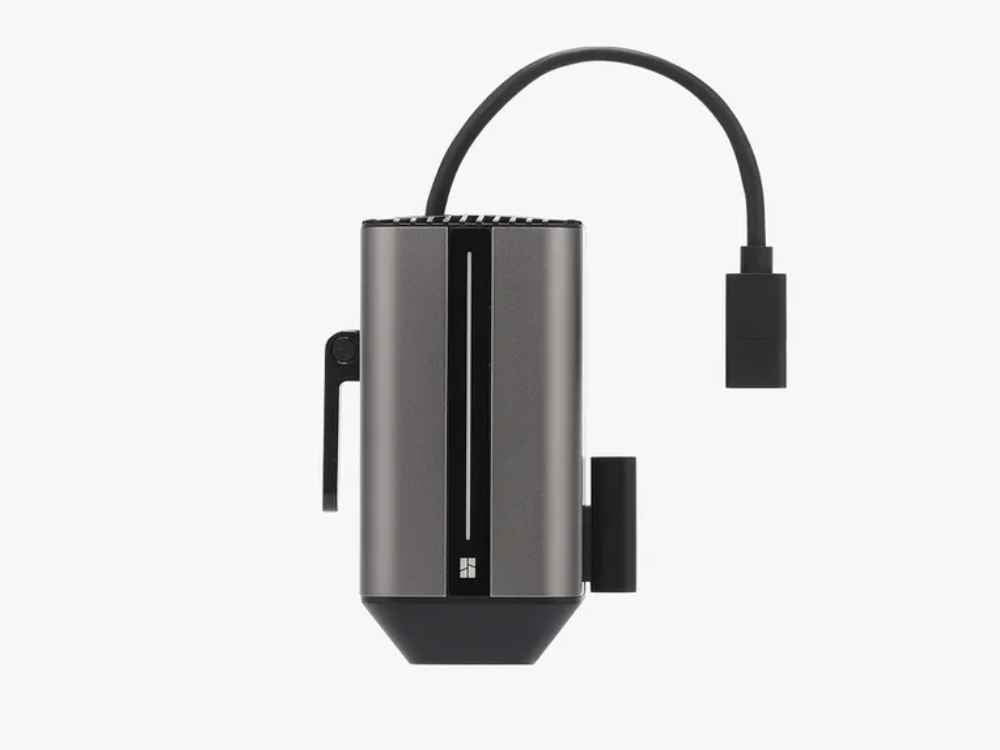

10W & 40W Laser Module
Laser Type
Semiconductor Laser
Laser Wavelength
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power
10 W ± 1 W; 40 W ± 2 W
Laser Spot Dimension
10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
Working Temperature
0 °C–35 °C
Max Engraving Speed
10W: 400 mm/s; 40W: 1000 mm/s
Max Cutting Thickness
10W: 5 mm; 40W: 15mm (Basswood Plywood)
Laser Safety Class for Laser Module
Class 4
Overall Laser Safety Class*
Class 1
Engraving Area
10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
XY Positioning Accuracy
< 0.3 mm
Z Height Measuring Method
Micro Lidar
Z Height Measuring Accuracy
± 0.1 mm
Flame Detection
Supported
Temperature Detection
Supported
Door Sensor
Supported
Laser Module Installation Detection
Supported

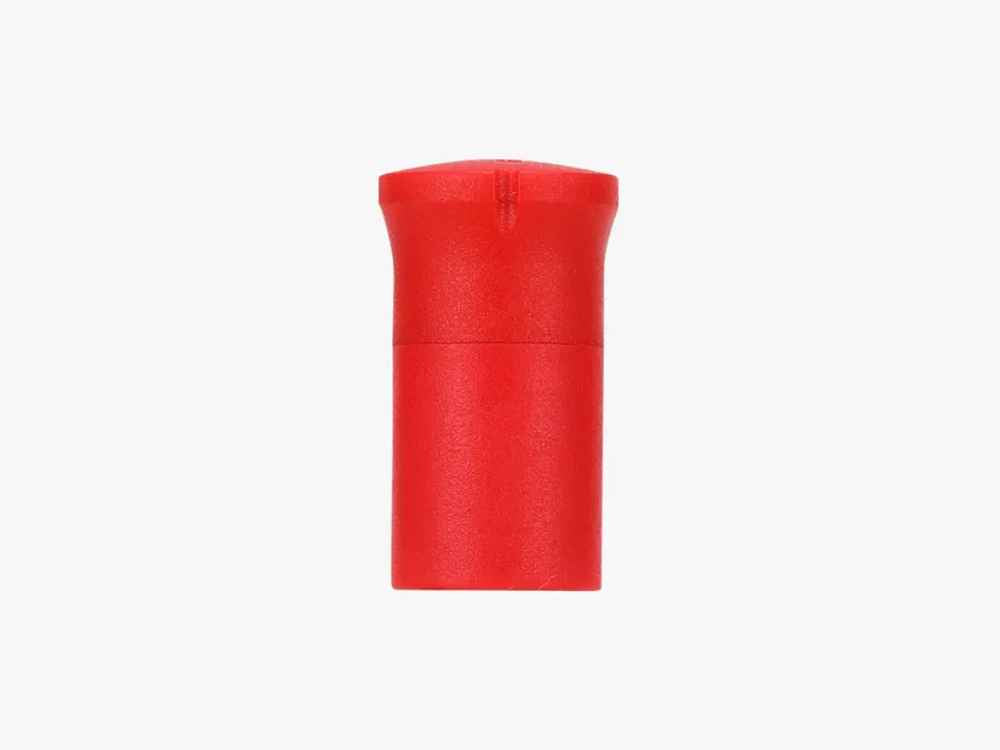

Safety Key
Included

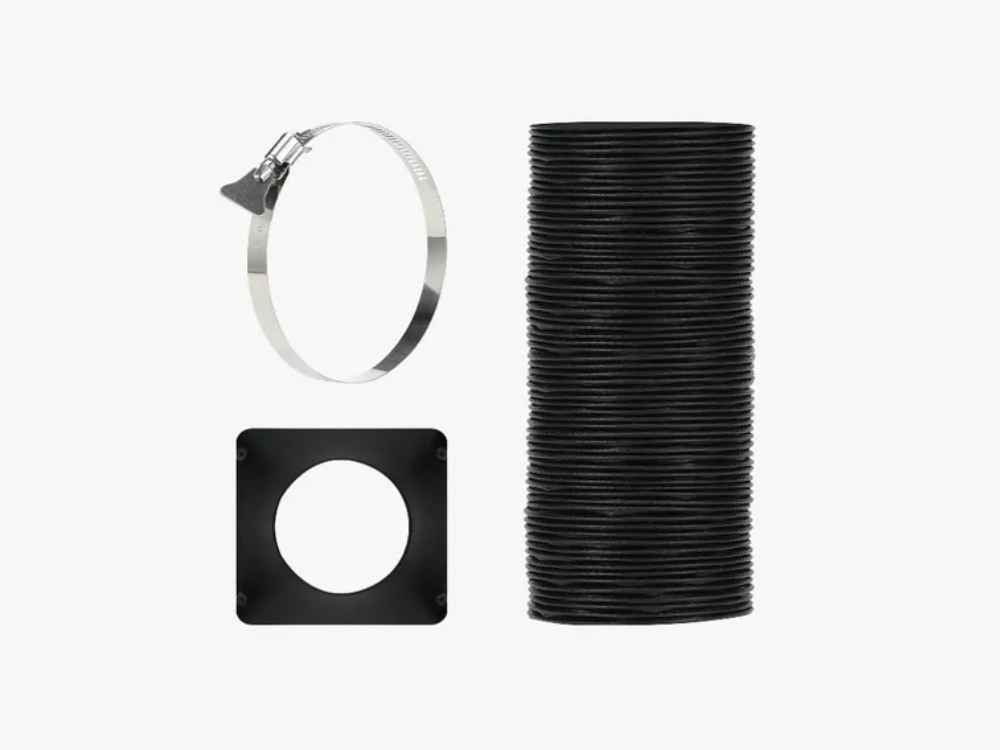

Ventilation Pipe Adapter Outer Diameter
100 mm

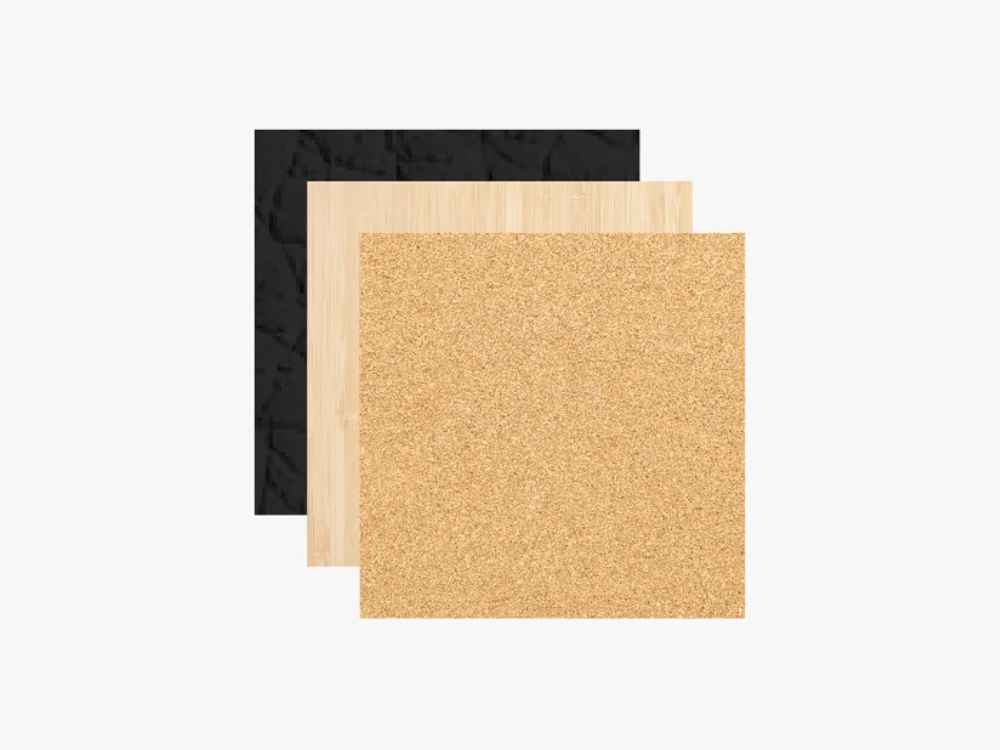

Supported Material Type
Wood, rubber, metal sheet, leather, dark acrylic, stone, and more

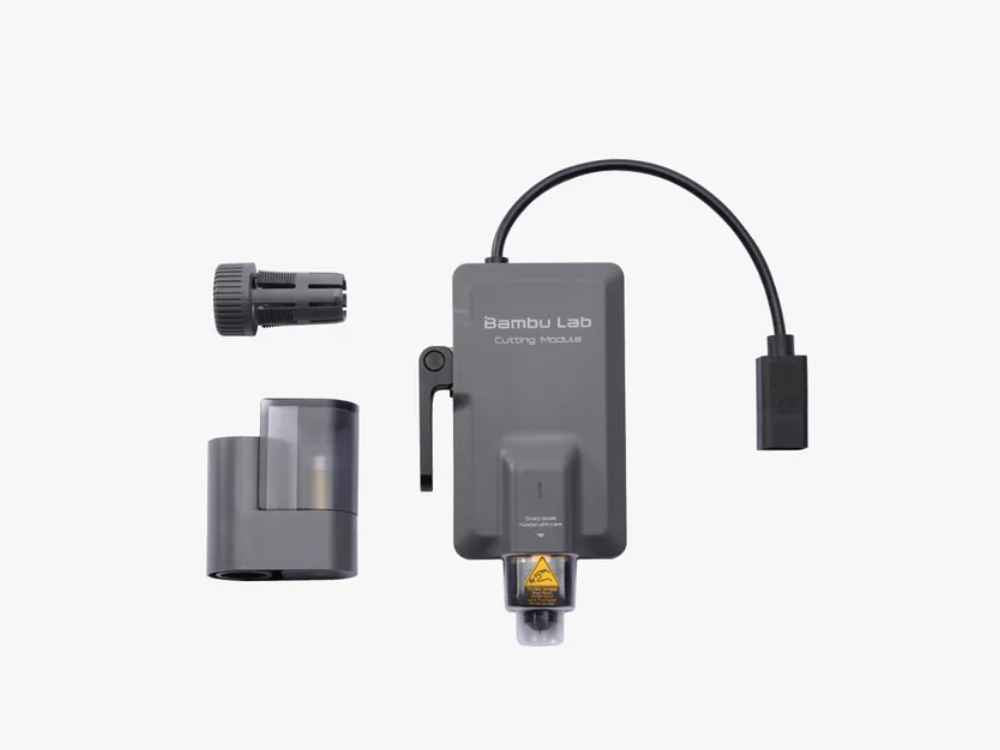

Cutting Module
Cutting Area
300*285 mm²
Drawing Area
300*255 mm²
Supported Pen Diameter
10.5 mm-12.5 mm

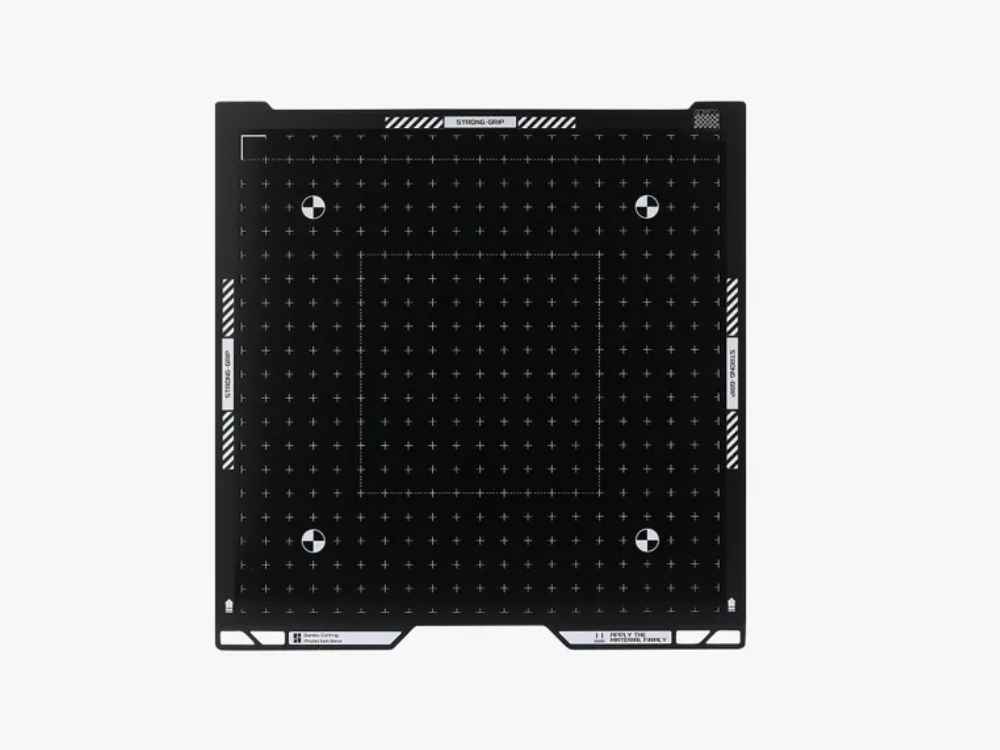

Cutting Mat Type
LightGrip and StrongGrip Cutting Mats
Blade Type
45°*0.35 mm
Blade Pressure Range
50 gf-600 gf
Max Cutting Thickness
0.5 mm
Blade and Pen Recognition
Supported
Cutting Mat Type Detection
Supported
Supported Image Type
Bitmap and Vector Images
Supported Material Type
Paper, vinyl, leather, and more
