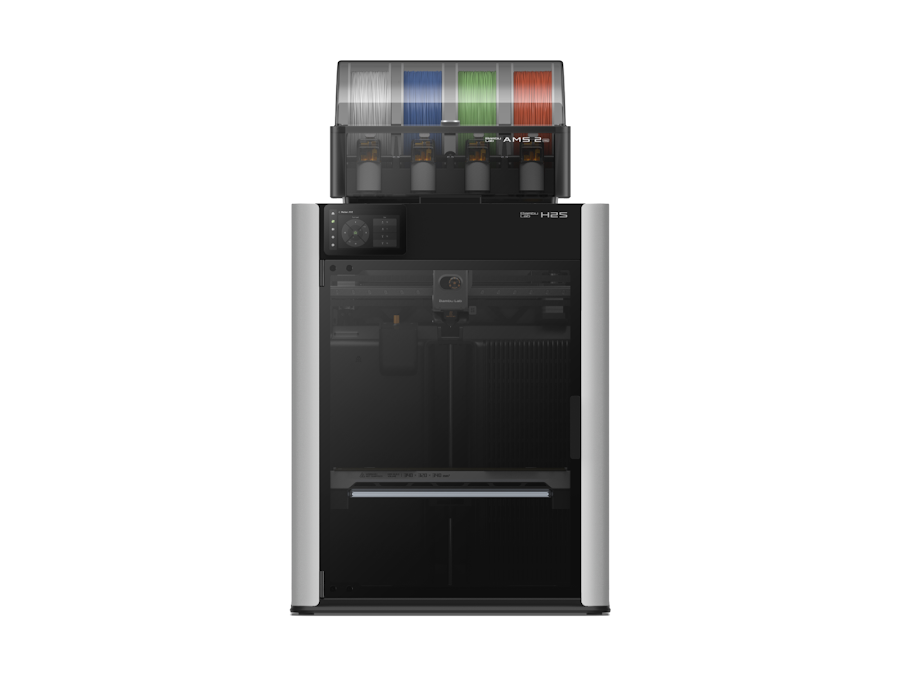

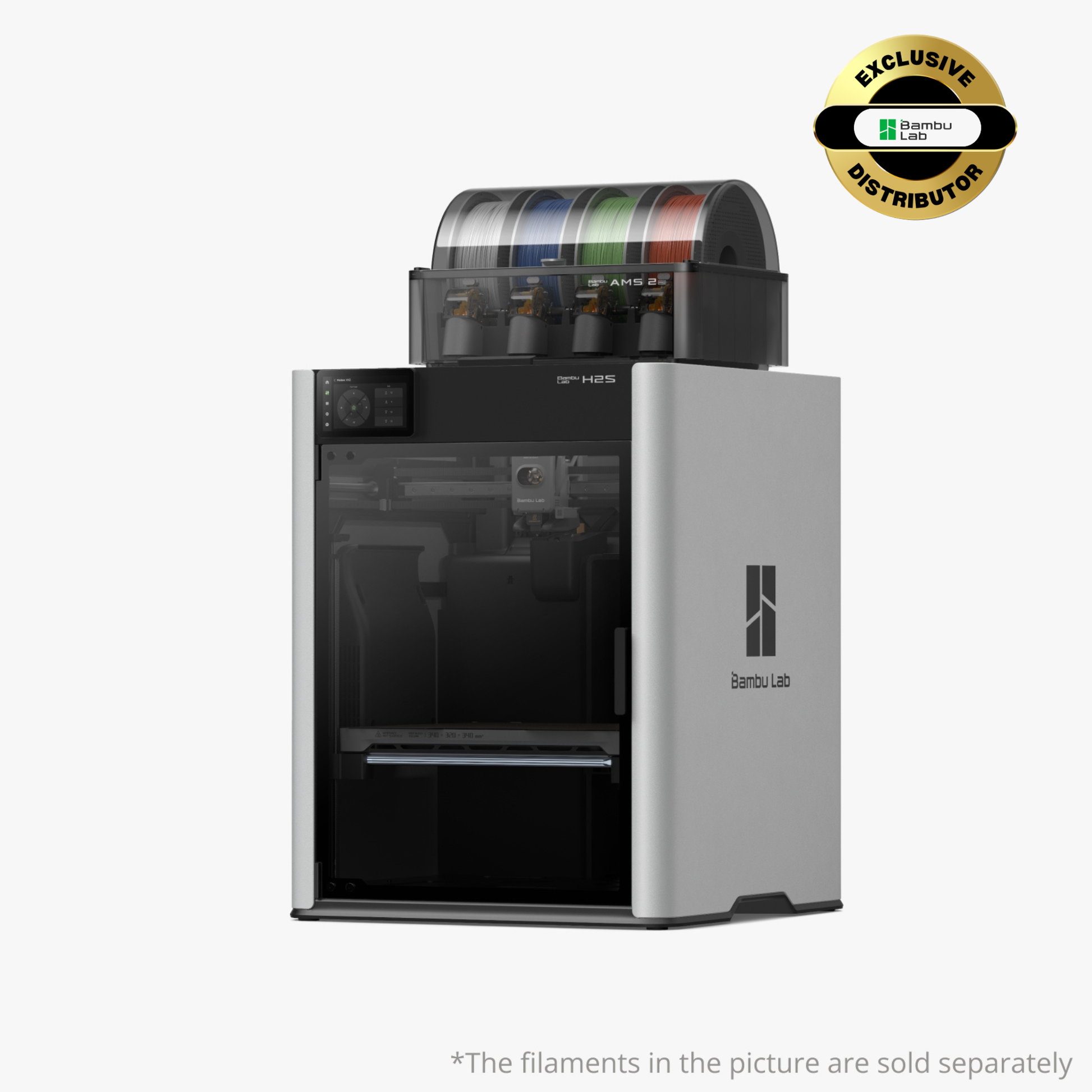

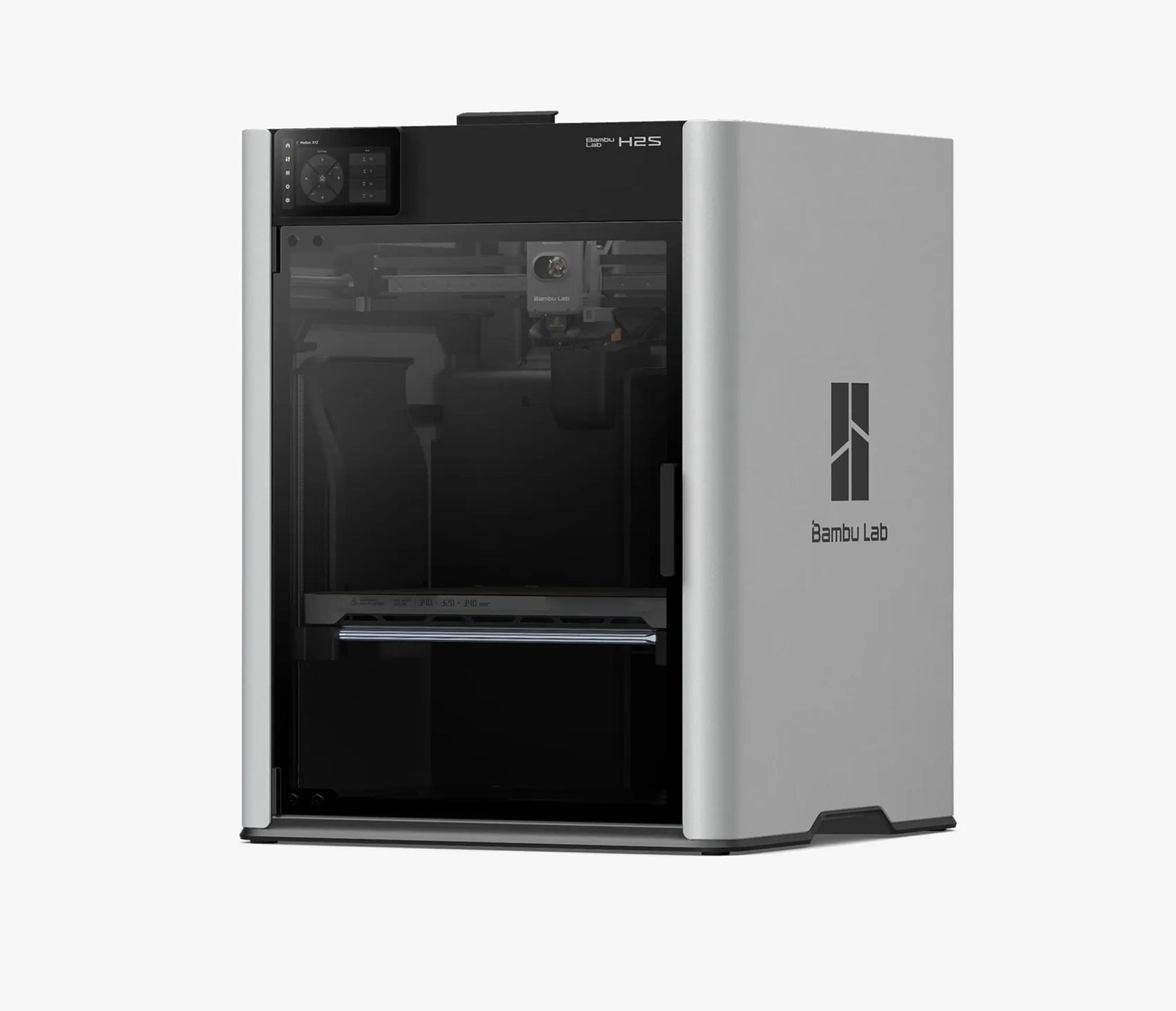

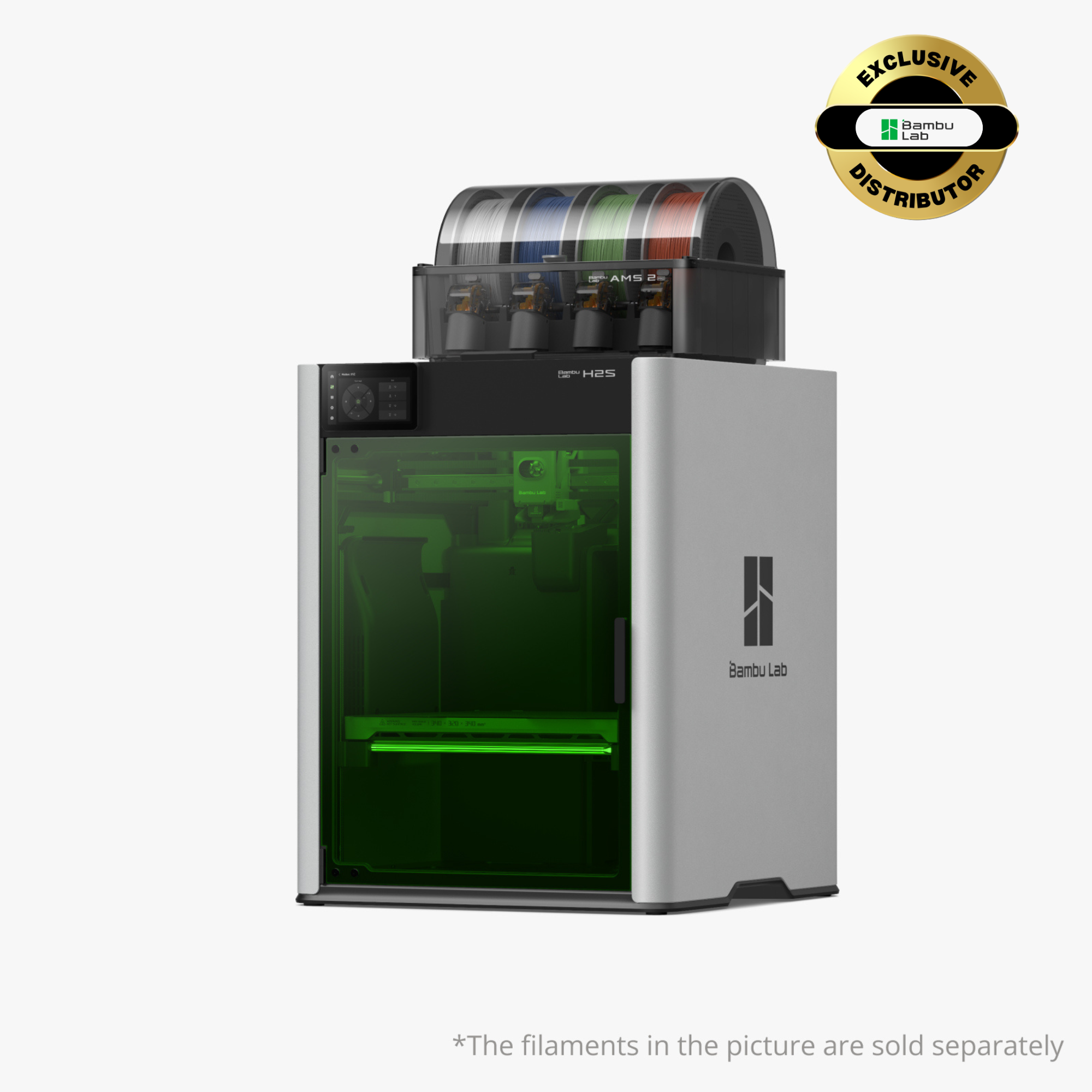

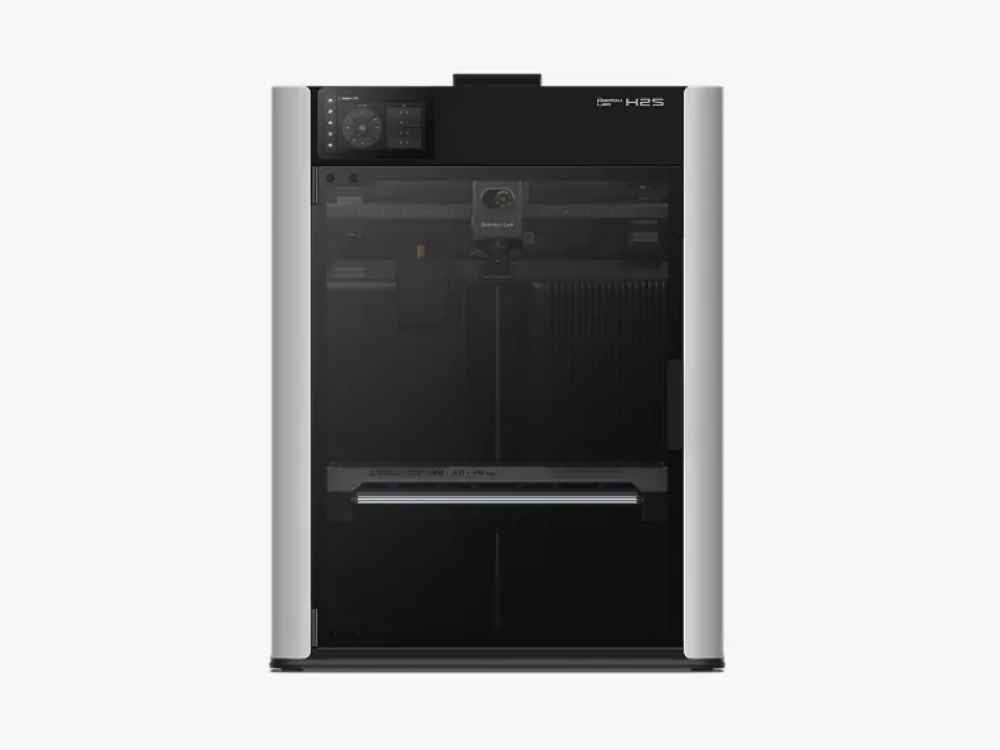

Bambu Lab H2S Combo 3D Printer
Bambu Lab H2S Combo 3D Printer
SKU:PF003-D+SA007
Couldn't load pickup availability

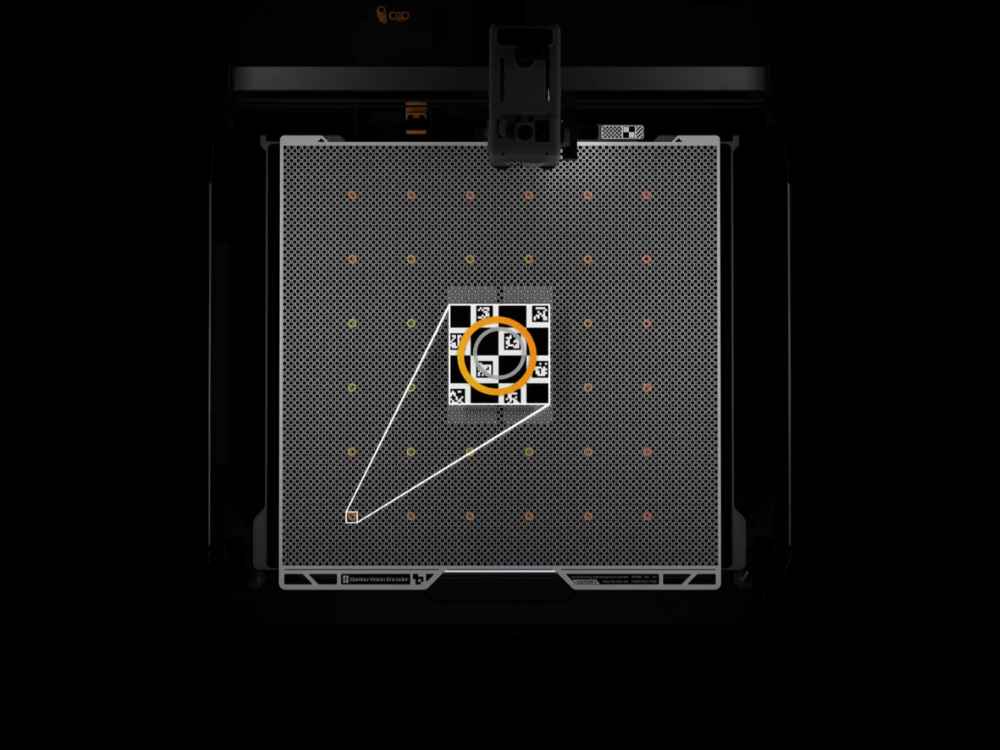

Even the printer come out of the factory with superb accuracy, mechanical wear and variances over time are inevitable—but now, first time in the industry, there’s a solution. With the Vision Encoder, the H2S achieves distance-independent motion accuracy under 50 μm—thinner than a human hair. During calibration, it automatically compensates for mechanical drift, ensuring consistent precision and peak performance over time.
ambu Lab's Auto Hole/Contour Compensation minimizes printing tolerances, delivering machine-shop-level precision for hole dimensions. Design fit-critical parts with confidence—integrate shafts, bearings, and fasteners without trial and error. Post-print assembly has never been easier.
Featuring a 350 °C hotend and a 65 °C actively heated chamber, it supports the entire Bambu filament lineup—from PLA and PETG to PC and PPA. With closed-loop fan control and precise thermal management, the H2S minimizes warping and deformation while improving layer adhesion. Build large, high-performance parts that are as functional as they are strong.

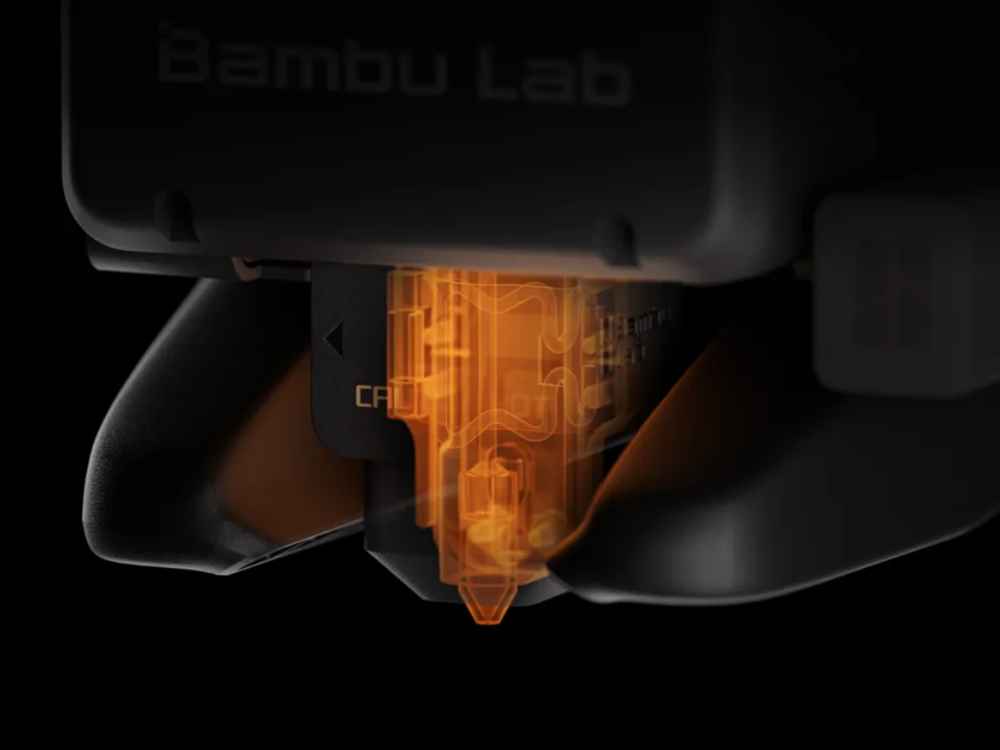

H2S uses both the sensing capability of its servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to precisely control extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.
Active Vibration Compensation neutralizes micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.

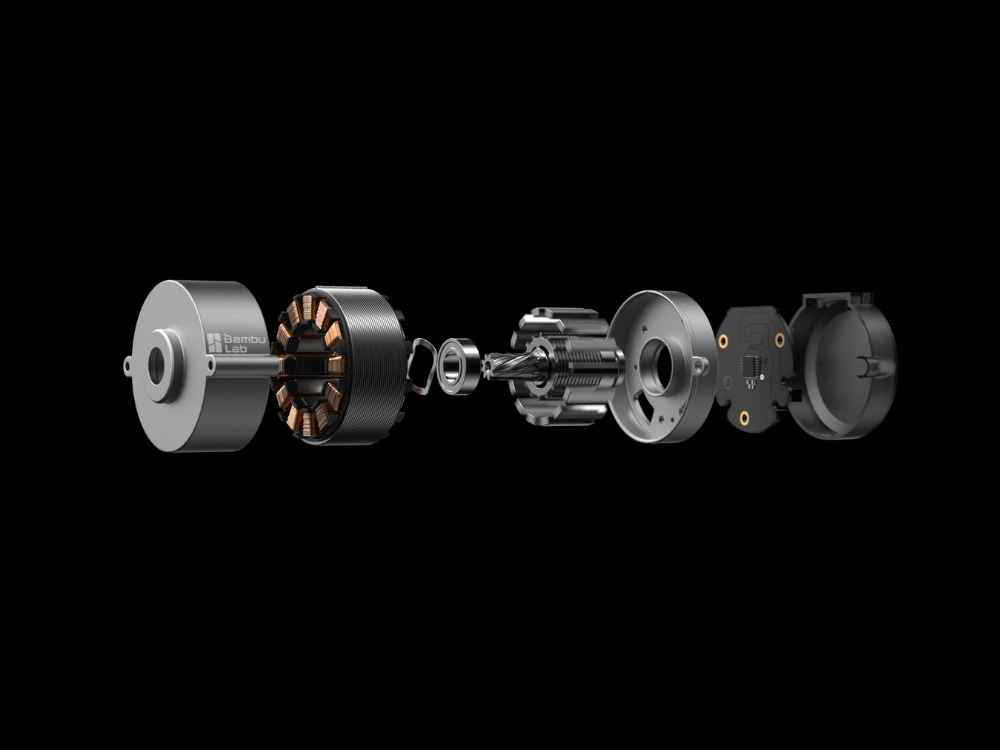

Bambu Lab's proprietary PMSM servo system enables 20 kHz resistance and position sampling to dynamically modulate electromagnetic torque vectors. It stabilizes extrusion and actively detects grinding or clogs in real time.

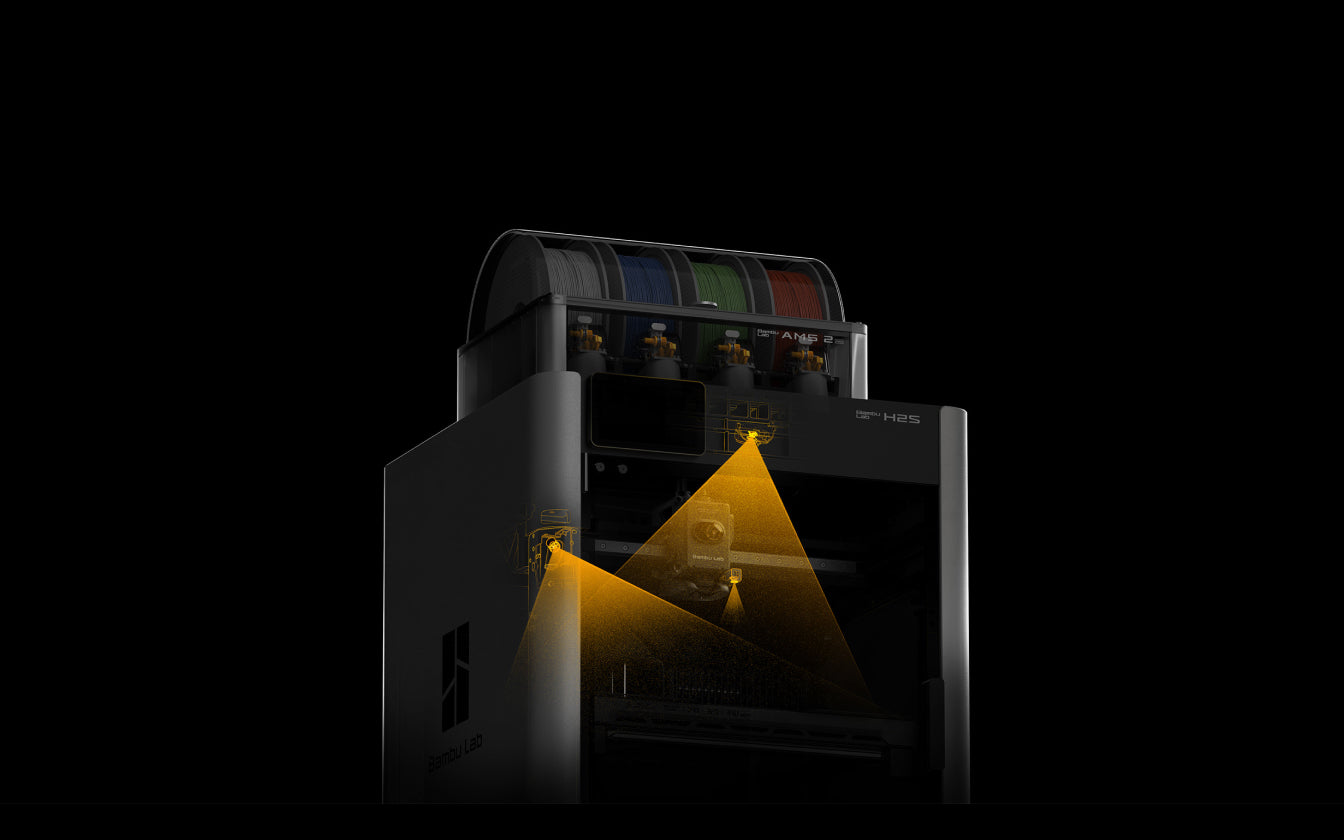

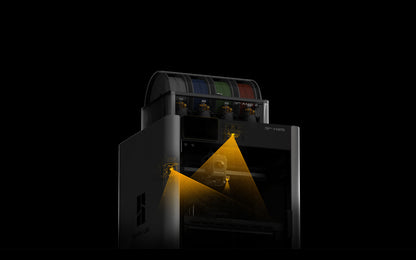

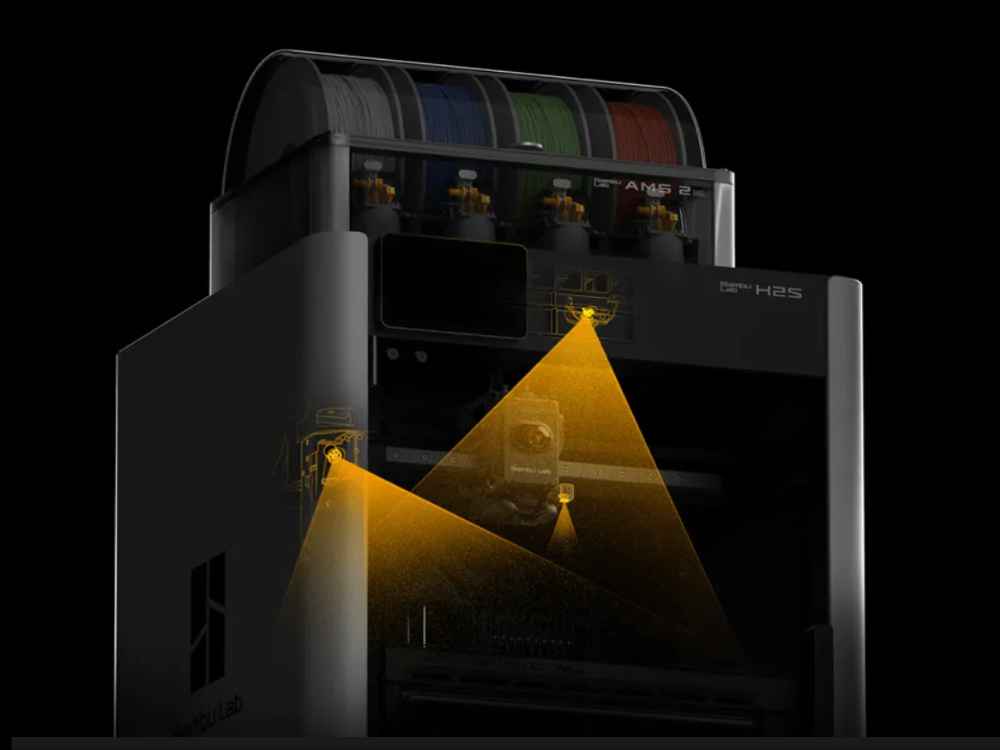

Vision system With AI-driven real-time monitoring, the vision system detects clumping, spaghetti and purge chute jamming as they happen, helping prevent failed prints before they start. This same vision system powers advanced features like Live Spatial Alignment, allowing precise laser and cutting calibration, and Vision Encoder technology, which enhances positional accuracy.
Feeding Filament-path sensors work in unison to monitor feeding speed and position, detect filament tangles and grinding risks, track filament mileage and spool usage, and ensure tool readiness across the AMS, buffer, cutter, and feeding paths, making sure every tool is in place and every move is under control.

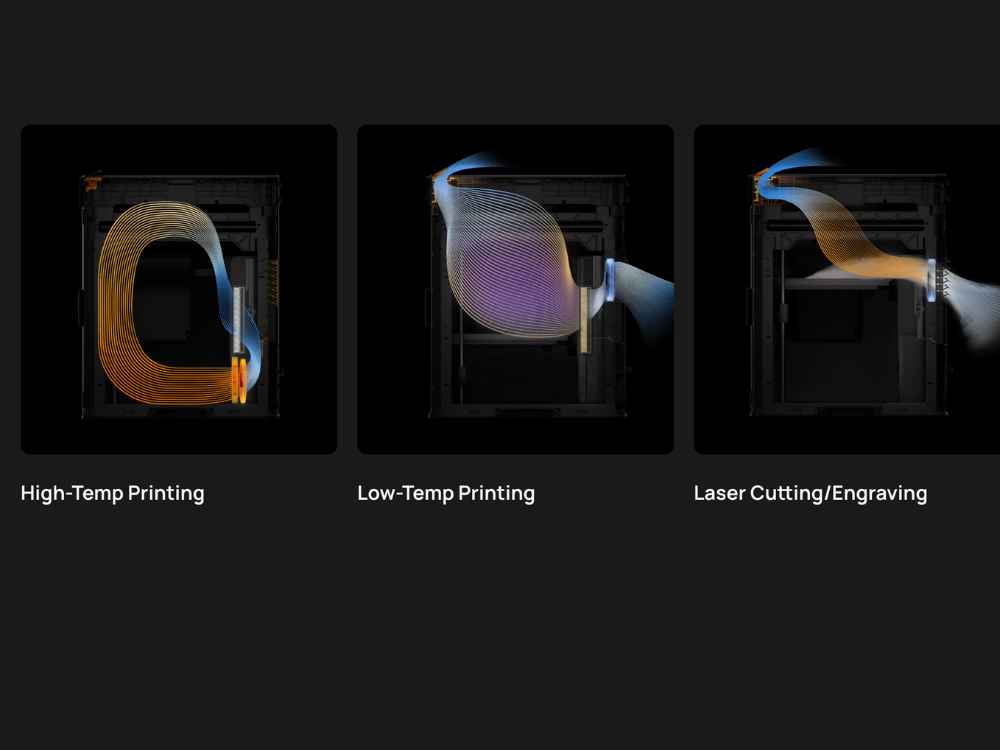

Thermal Control Five NTC temperature sensors are strategically placed across the nozzle, heatbed, and chamber. Paired with integrated airflow sensors, the system actively monitors and adjusts internal temperatures and circulation, maintaining the ideal print environment through real-time feedback control.
Safety The H2S features five flame sensors, front-door and top-cover sensors, and emergency stop button to form a complete safety system. It detects fire risks, monitors enclosure alignment, and allows instant shutdown when needed—protecting your projects and your workspace at all times.
Prior to each operational cycle, the H2S vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies build plate properties.
Share
-
Techincal Specification
-
Body

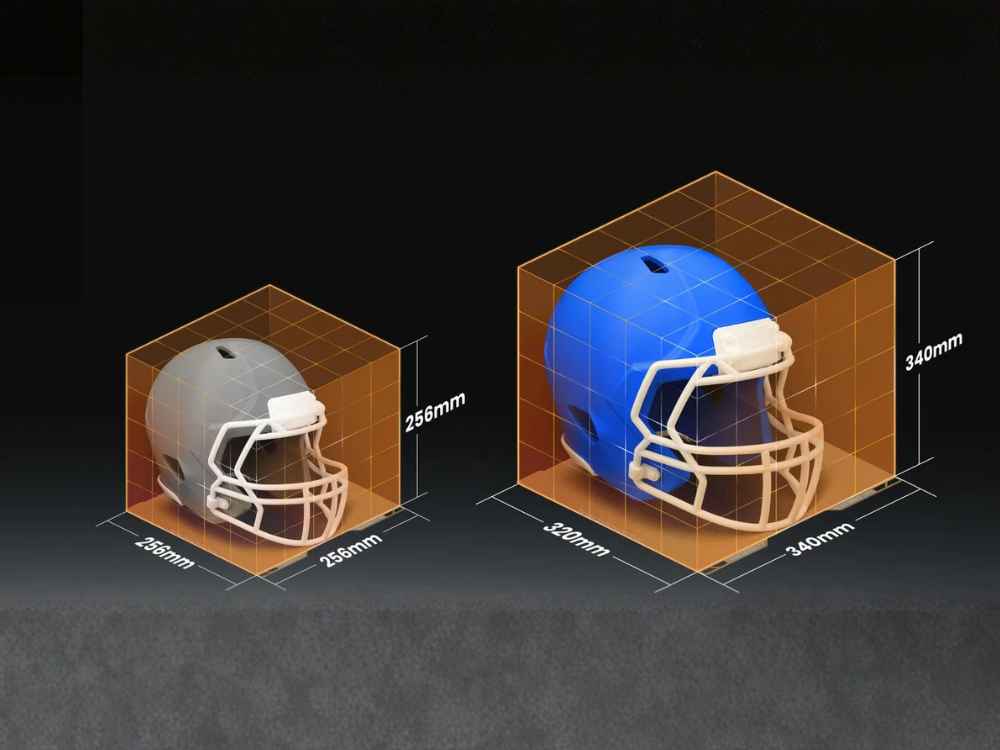

Build Volume (W*D*H) 340*320*340 mm³
Chassis Aluminum, Steel, Plastic and Glass

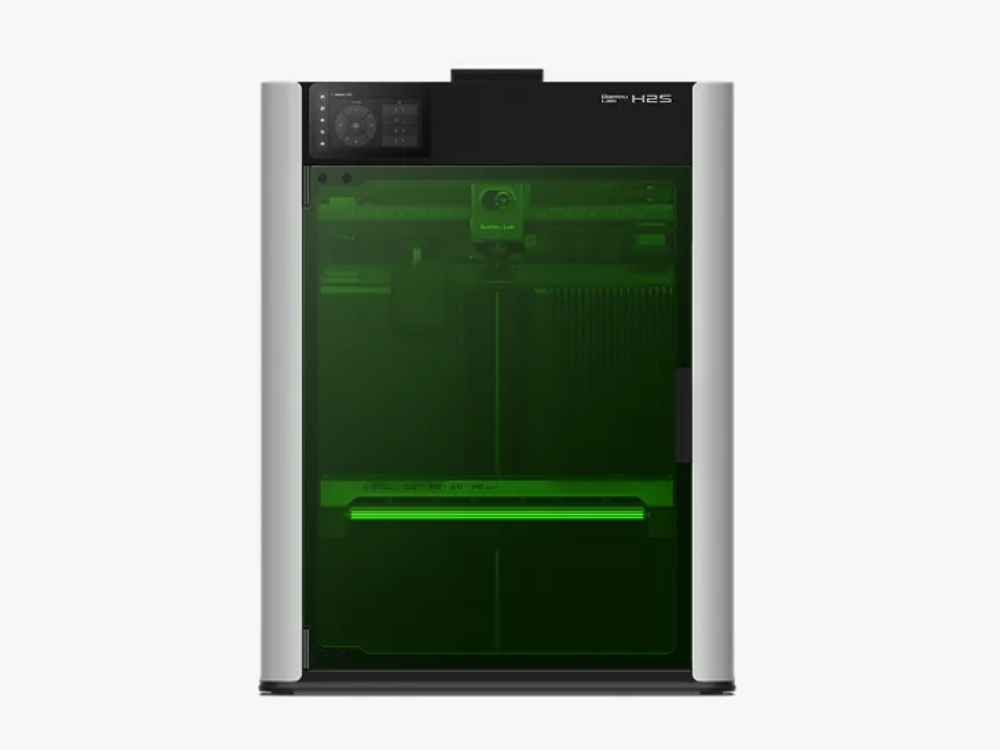

Laser Safety Windows Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit
Air Assist Pump Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit
Physical Dimensions
Physical Dimensions 492*514*626 mm³
Net Weight H2S: 30 kg
H2S Laser Edition: 30.5 kg
Toolhead
Hotend All Metal
Extruder Gear Hardened Steel
Nozzle Hardened Steel
Max Nozzle Temperature 350 ℃
Included Nozzle Diameter 0.4 mm
Supported Nozzle Diameter 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Cutter Built-in
Filament Diameter 1.75 mm
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed
Supported Build Plate Type Textured PEI plate, Smooth PEI Plate
Max Heatbed Temperature 120 ℃
Speed
Max Speed of Toolhead 1000 mm/s
Max Acceleration of Toolhead 20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend) 40 mm³/s
(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
Max Flow for Hotend (Optional High Flow Hotend) 65 mm³/s
(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)
Chamber Temperature Control
Active Chamber Heating Supported
Max Temperature 65 ℃
Air Purification
Pre-filter Grade G3
HEPA Filter Grade H12
Activated Carbon Filter Type Granulated Coconut Shell
VOC Filtration Superior
Particulate Matter Filtration Supported
Cooling
Part Cooling Fan Closed Loop Control
Cooling Fan for Hotend Closed Loop Control
Main Control Board Fan Closed Loop Control
Chamber Exhaust Fan Closed Loop Control
Chamber Heat Circulation Fan Closed Loop Control
Auxiliary Part Cooling Fan Closed Loop Control
Filament Supported
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;
Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS
Sensor
Live View Camera Built-in; 1920*1080
Toolhead Camera Built-in; 1600*1200
BirdsEye Camera Built-in; 3264*2448 (Equipped with Laser Edition)
Door Sensor Supported
Filament Run Out Sensor Supported
Filament Tangle Sensor Supported
Filament Odometry Supported with AMS
Power Loss Recovery Supported
Electrical Requirements
Voltage 100–120 VAC / 200–240 VAC, 50/60 Hz
Max Power¹ 2050 W@220 V / 1170 W@110 V
Working Temperature
10 ℃-30 ℃
Electronics
Touchscreen 5-inch 720*1280 Touchscreen
Storage Built-in 8 GB EMMC and USB Port
Control Interface Touchscreen, mobile App, PC App
Neural Processing Unit 2 TOPS
Software
Slicer Bambu Studio
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Supported Operating System MacOS, Windows, Linux
Wi-Fi
Operating Frequency 2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC)
5150-5850 MHz
Wi-Fi Transmitter Power (EIRP) 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
Wi-Fi Protocol IEEE 802.11 a/b/g/n
10W Laser Module
Laser Type Semiconductor Laser
Laser Wavelength Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power 10 W ± 1 W
Laser Spot Dimension 0.03 * 0.14 mm²
Working Temperature 0 ℃–35 ℃
Max Engraving Speed 400 mm/s
Max Cutting Thickness 5 mm (Basswood Plywood)
Laser Safety Class for Laser Module Class 4
Overall Laser Safety Class² Class 1
Engraving Area H2D: 310 * 270 mm²
H2S: 310 * 260 mm²
XY Positioning Method Visual Positioning
XY Positioning Accuracy < 0.3 mm
Z Height Measuring Method Micro Lidar
Z Height Measuring Accuracy ± 0.1 mm
Flame Detection Supported
Temperature Detection Supported
Door Sensor Supported
Laser Module Installation Detection Supported
Safety Key Included
Air Pump Built-in; 30 kPa, 30 L/min
Ventilation Pipe Adapter Outer Diameter 100 mm
Supported Material Type Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Cutting Module
Cutting Area H2D：300*285 mm²
H2S：297.5*300 mm²
Drawing Area 300*255 mm²
Supported Pen Diameter 10.5 mm–12.5 mm
Cutting Mat Type LightGrip and StrongGrip Cutting Mats
Blade Type 45°*0.35 mm
Blade Pressure Range 50 gf–600 gf
Max Cutting Thickness 0.5 mm
Blade and Pen Recognition Supported
Cutting Mat Type Detection Supported
Supported Image Type Bitmap and Vector Images
Supported Material Type Paper, PVC, vinyl, leather, and more
